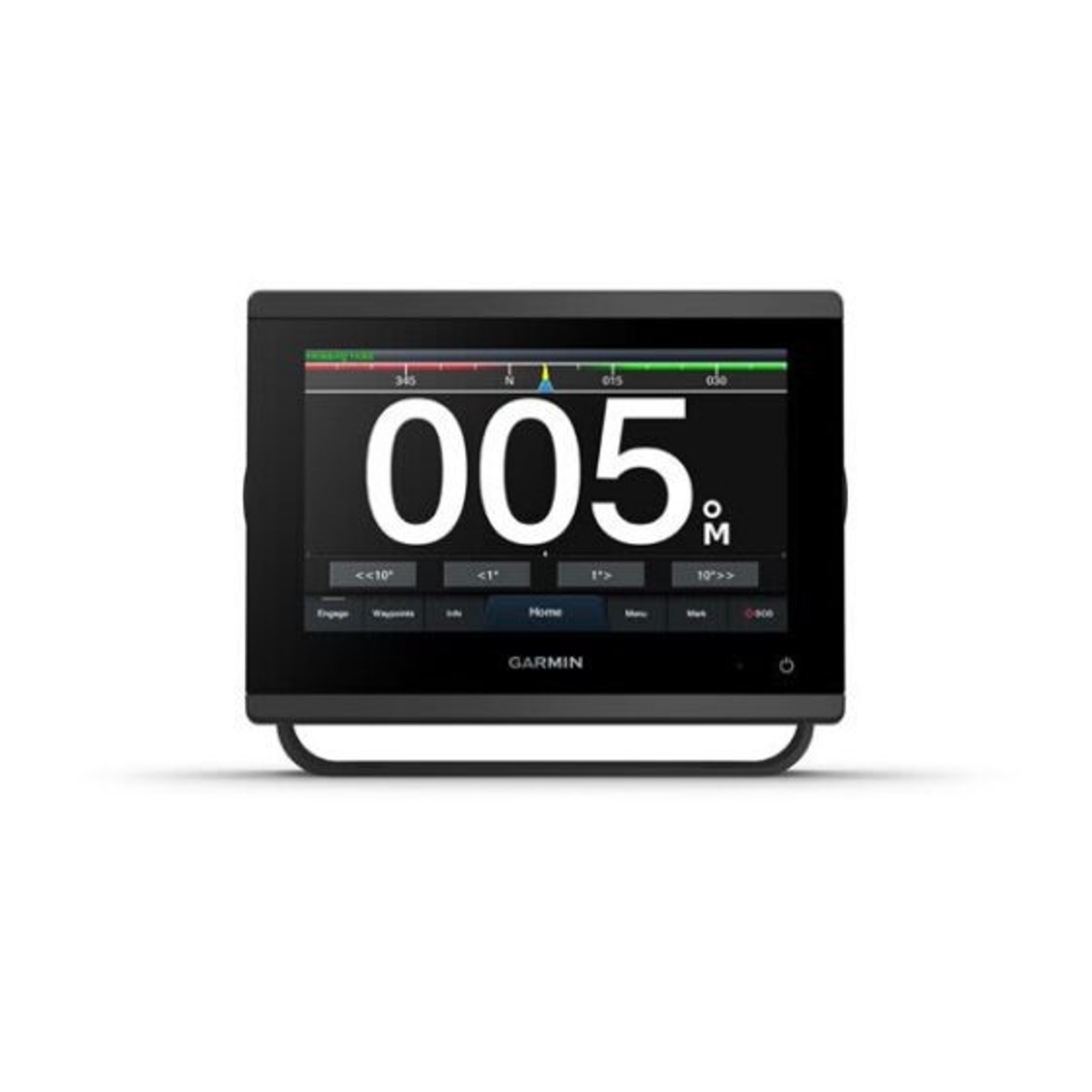

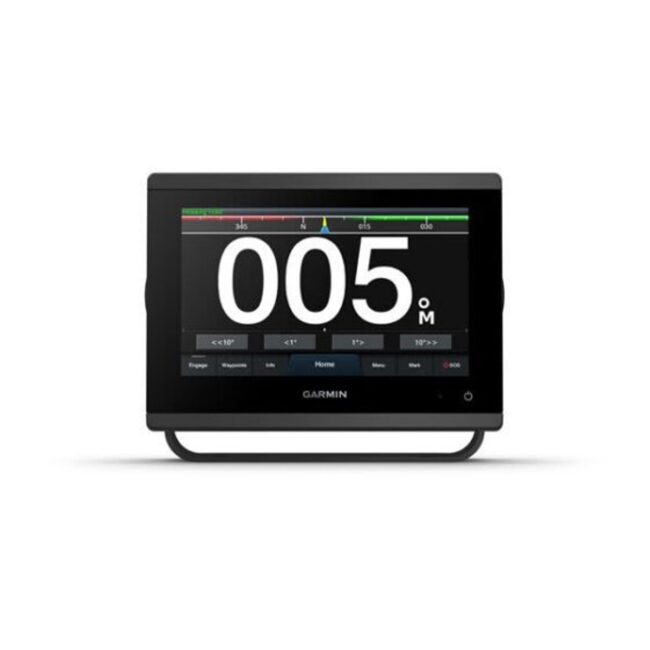

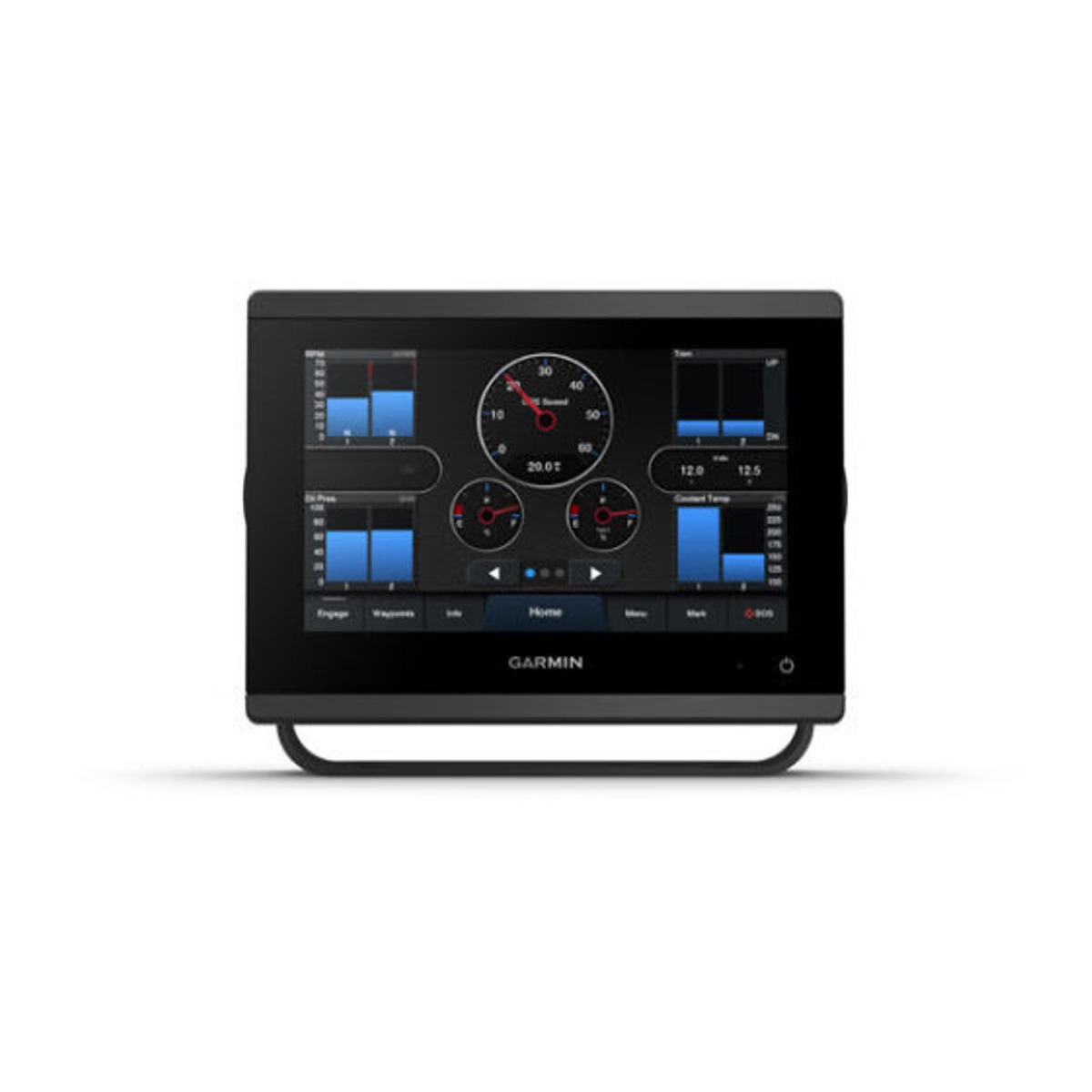

GPSMAP® 723xsv

Description

GPSMAP® 723xsv

General
DIMENSION 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm)
TOUCHSCREEN
INPUT Touchscreen
DISPLAY SIZE 6.1\” x 3.5\”; 7.0\” diagonal
(15.4 x 9.1 cm; 17.8 cm diagonal)
DISPLAY RESOLUTION 1024 x 600 pixels
DISPLAY TYPE WSVGA display
WEIGHT 2.8 lbs (1.3 kg)
WATER RATING IPX7

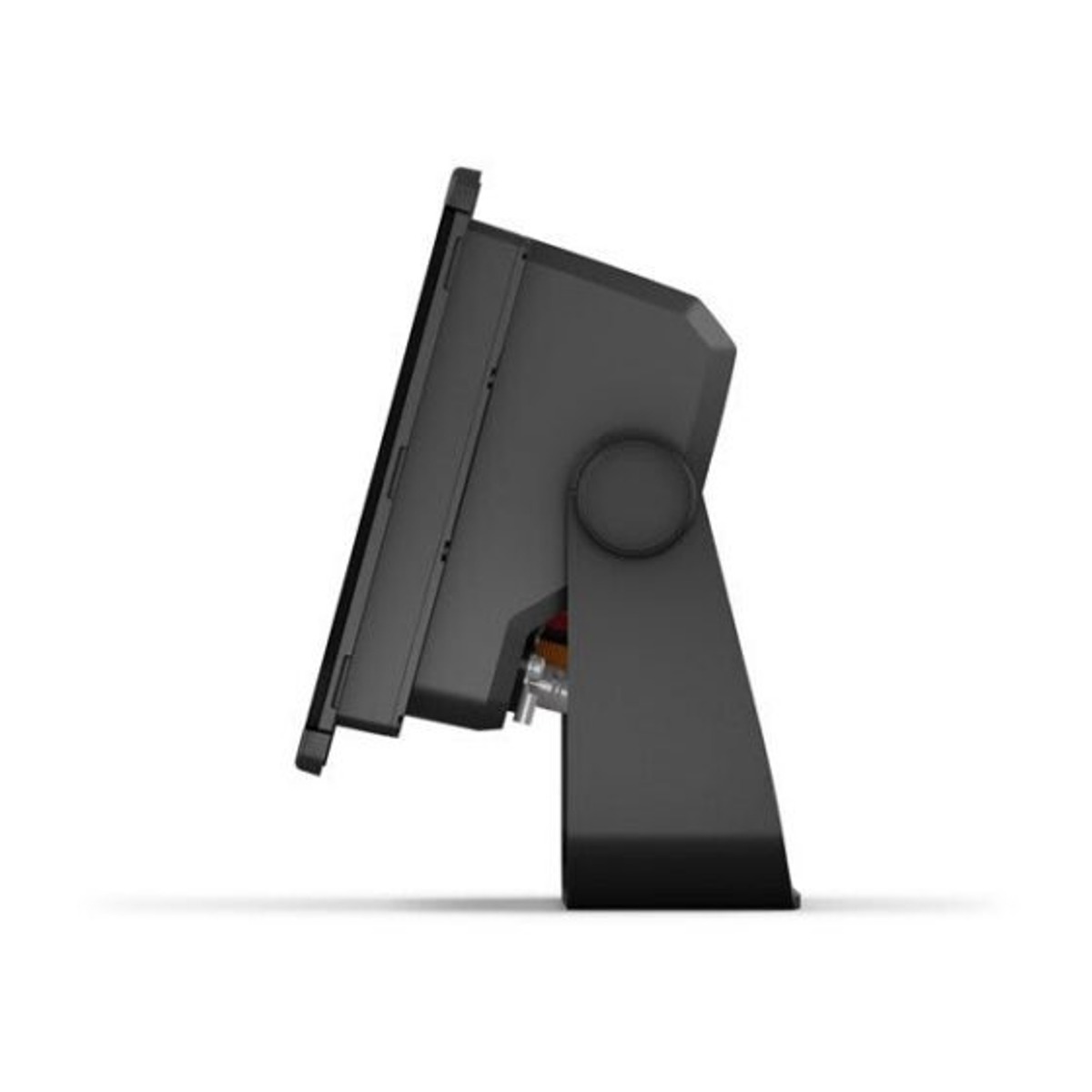

MOUNTING OPTIONS Bail, flush or flat
Maps & memory
ACCEPTS DATA CARDS 2 microSD™ cards (back of unit)
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER
RECEIVER 10 Hz high-sensitivity
NMEA 2000® COMPATIBLE
NMEA 0183 COMPATIBLE
GPS
GLONASS
GALILEO
SUPPORTS WAAS
Built-in Maps
BUILT-IN AUTO GUIDANCE
BLUECHART (COASTAL)
LAKEVU (INLAND)
(SOUNDER) TIDE TABLES
Optional Map Support
BLUECHART G3
BLUECHART G3 VISION
LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
(SOUNDER) TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
RASTER CHART SUPPORT

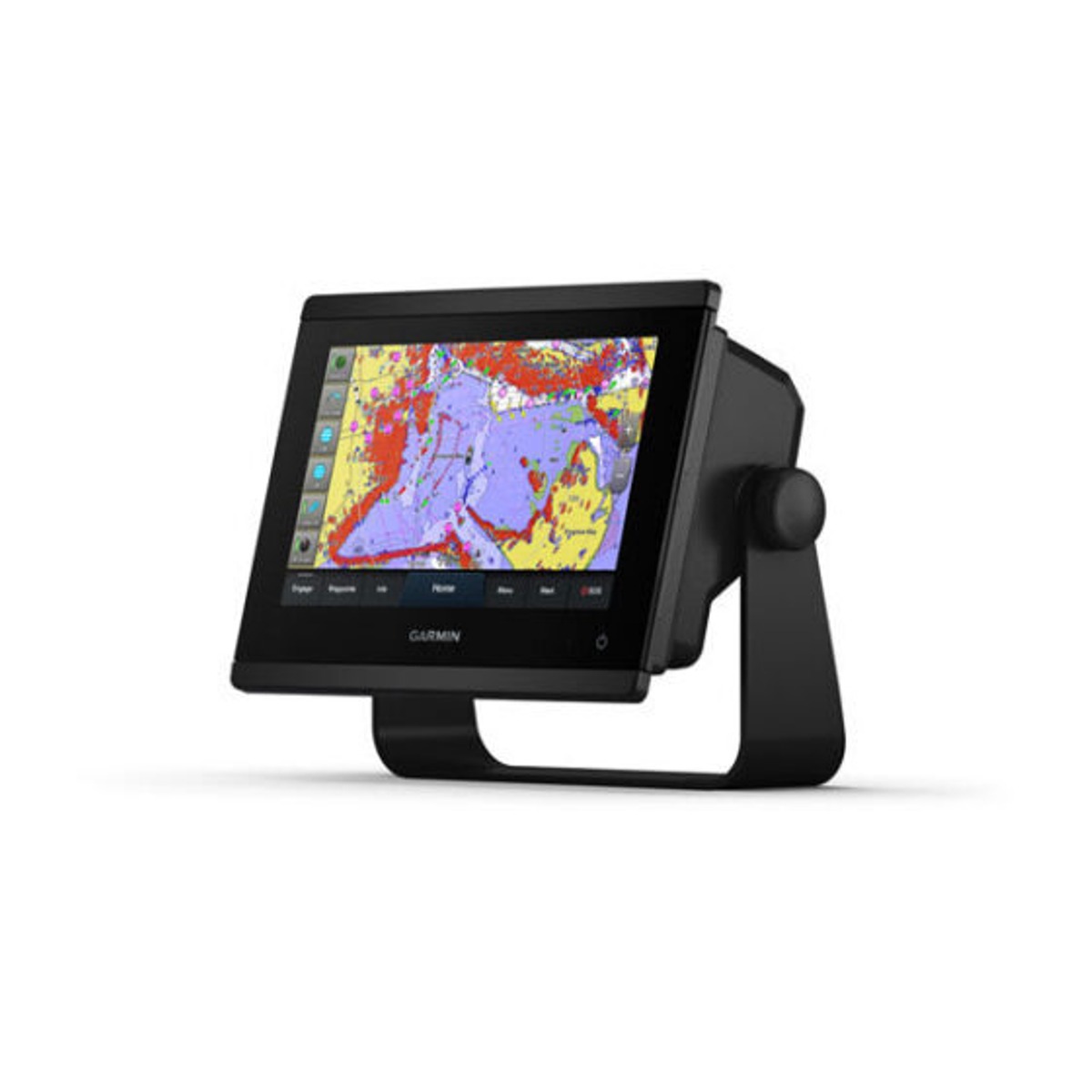

Chartplotter Features
GARMIN SMARTMODE COMPATIBLE (CUSTOMISABLE MONITOR PRESETS)
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
GSD BLACK BOX SONAR SUPPORT
GCV™ BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
WIRELESS REMOTE COMPATIBLE
SAILING-FEATURES
SPOKEN AUDIO ALERTS
ONEHELM SUPPORT

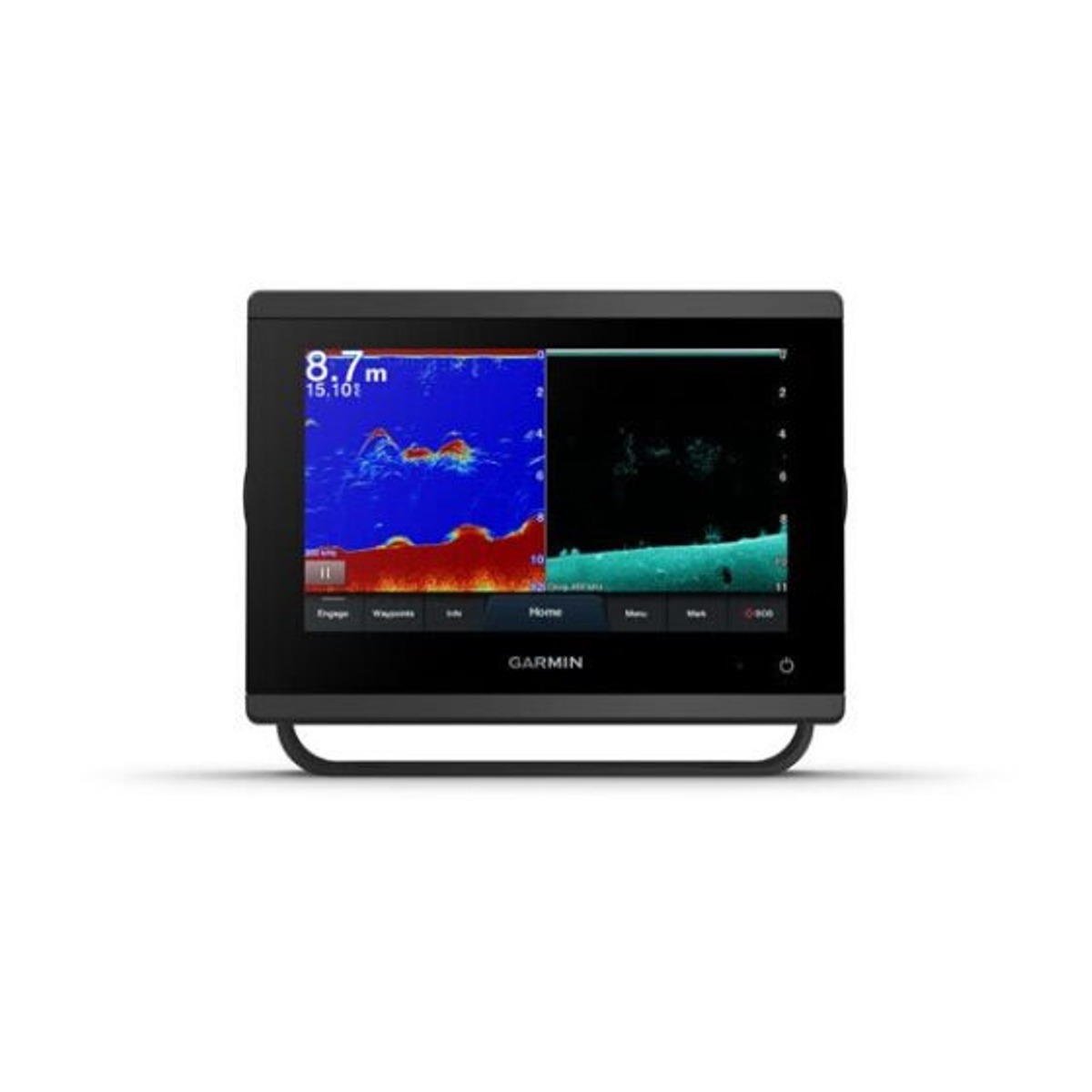

Sonar Features & Specifications
DISPLAYS SONAR
POWER OUTPUT 1 kW
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
(SOUNDER) SIDEVÜ built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
LIVESCOPE

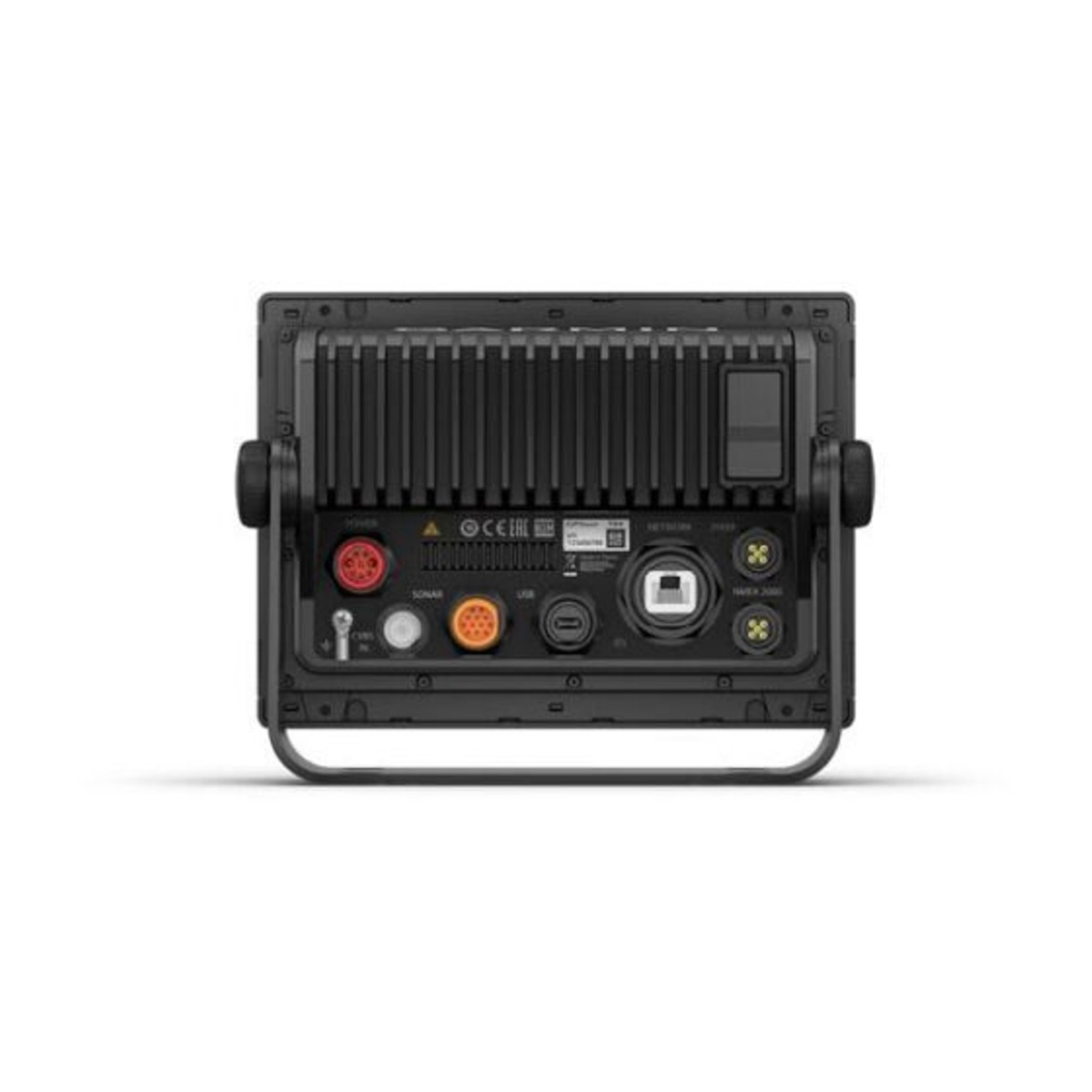

Connections
NMEA 2000 PORTS 1
CONNECTIONS NMEA0183 INPUT PORTS 1 (Differential)
NMEA 0183 INPUT (TX) PORTS 1
VIDEO INPUT PORTS 1 BNC
J1939 PORTS 1
CONNECTIONS GARMIN MARINE NETWORK PORTS 1
12-PIN TRANSDUCER PORTS 1
USB PORTS
BNC EXTERNAL GPS ANTENNA PORT
BLUETOOTH® CALLING
ANT+ (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 10 to 32 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.18 A
MAXIMUM CURRENT DRAW AT 12 VDC 2.96 A
MAXIMUM POWER USAGE AT 10 VDC 35.9W
