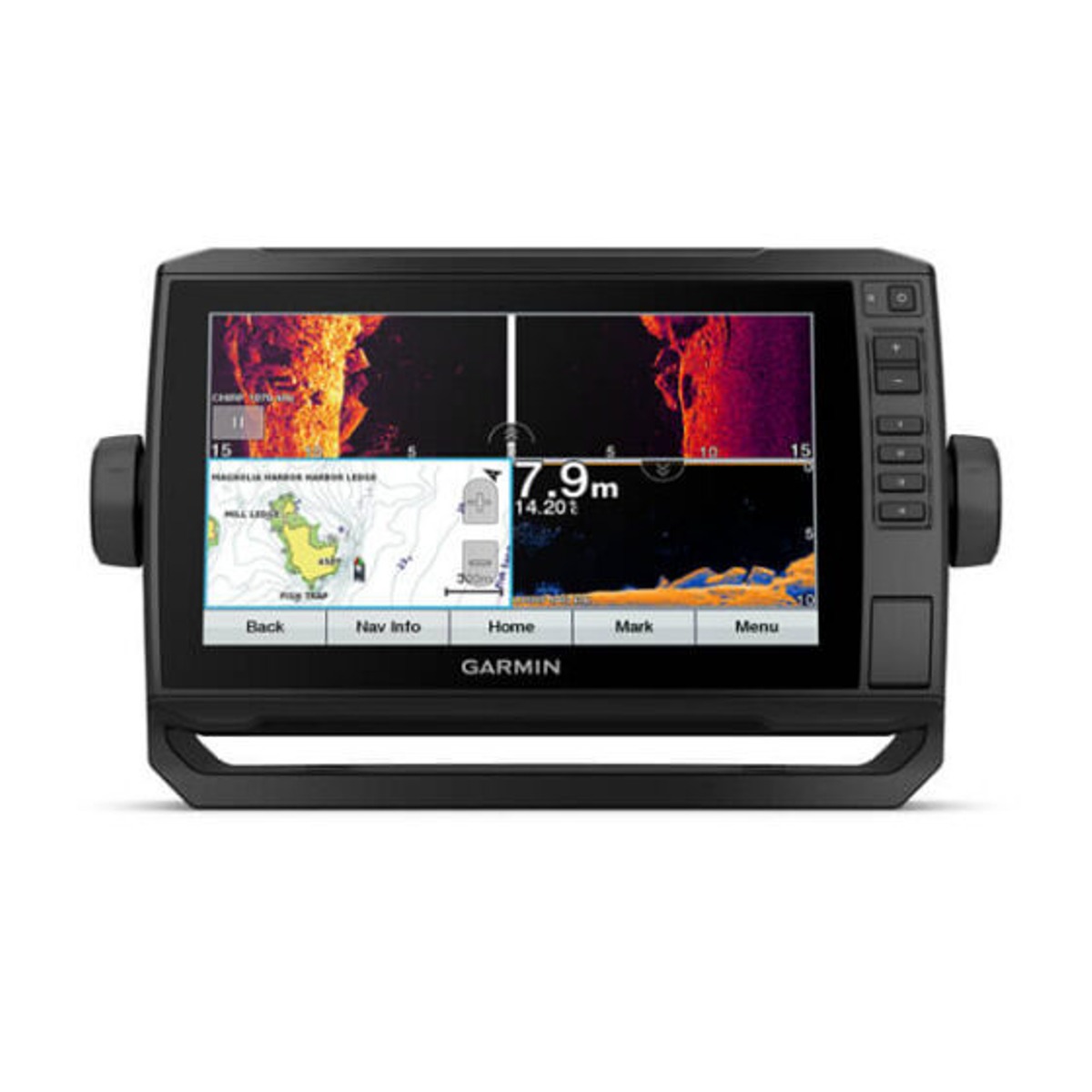

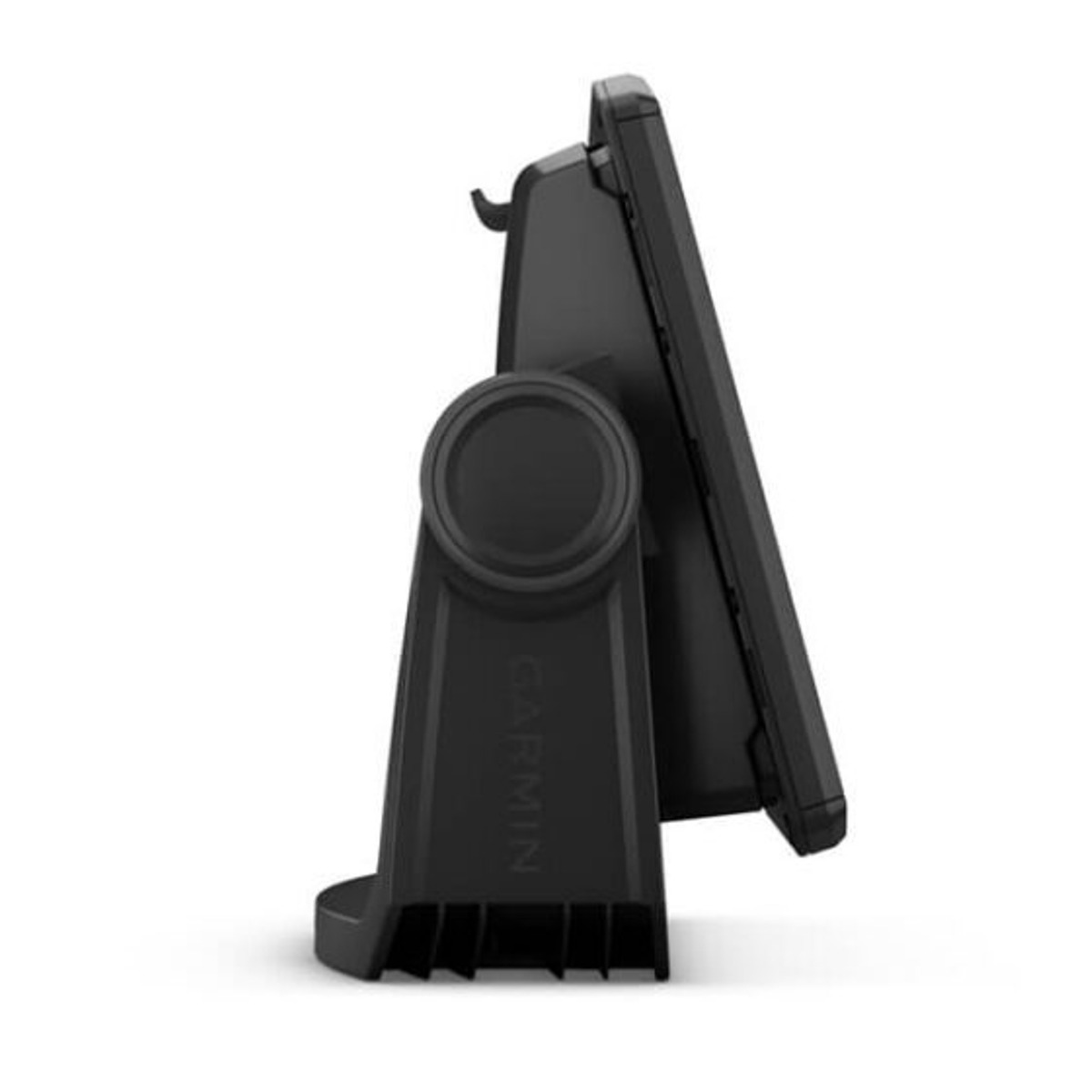

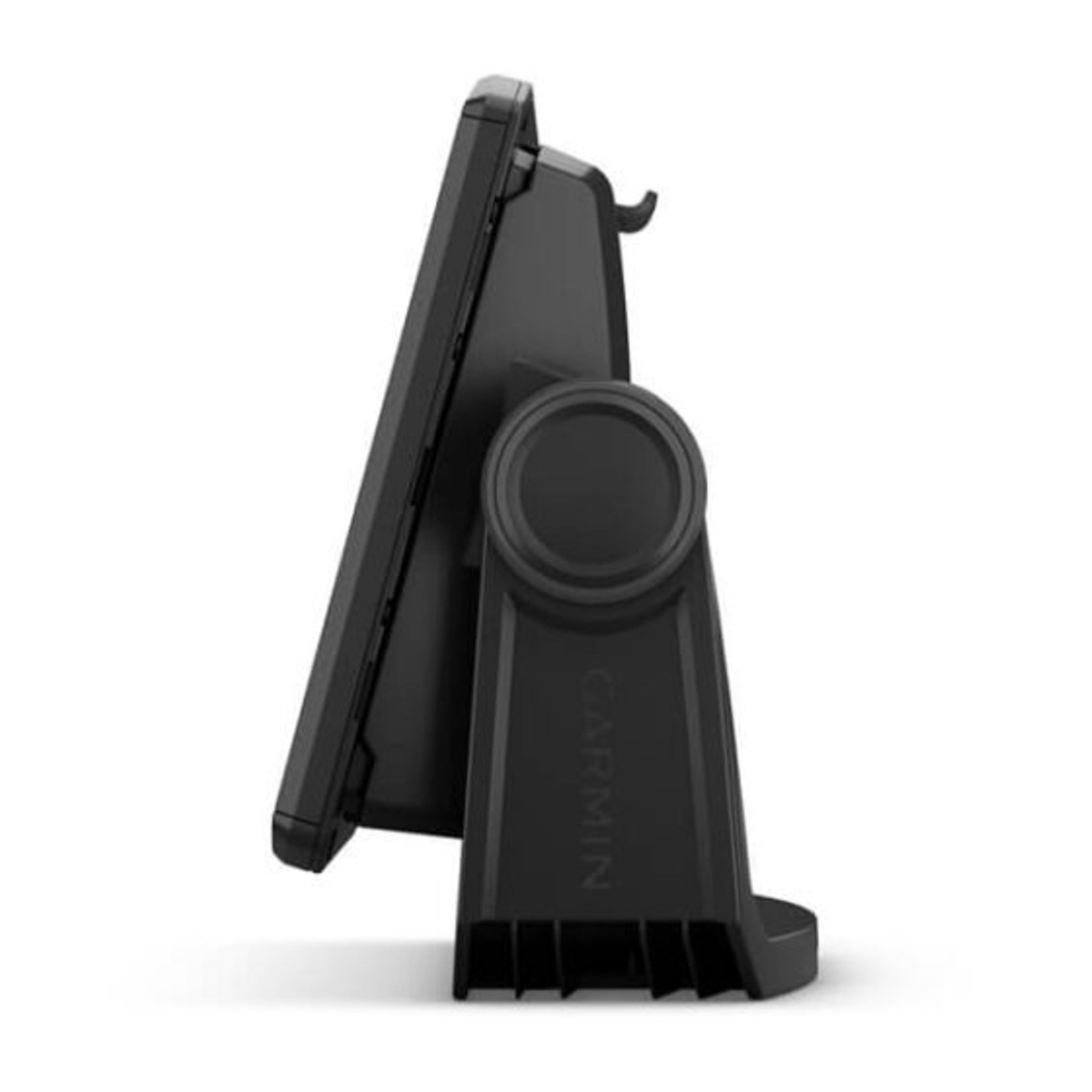

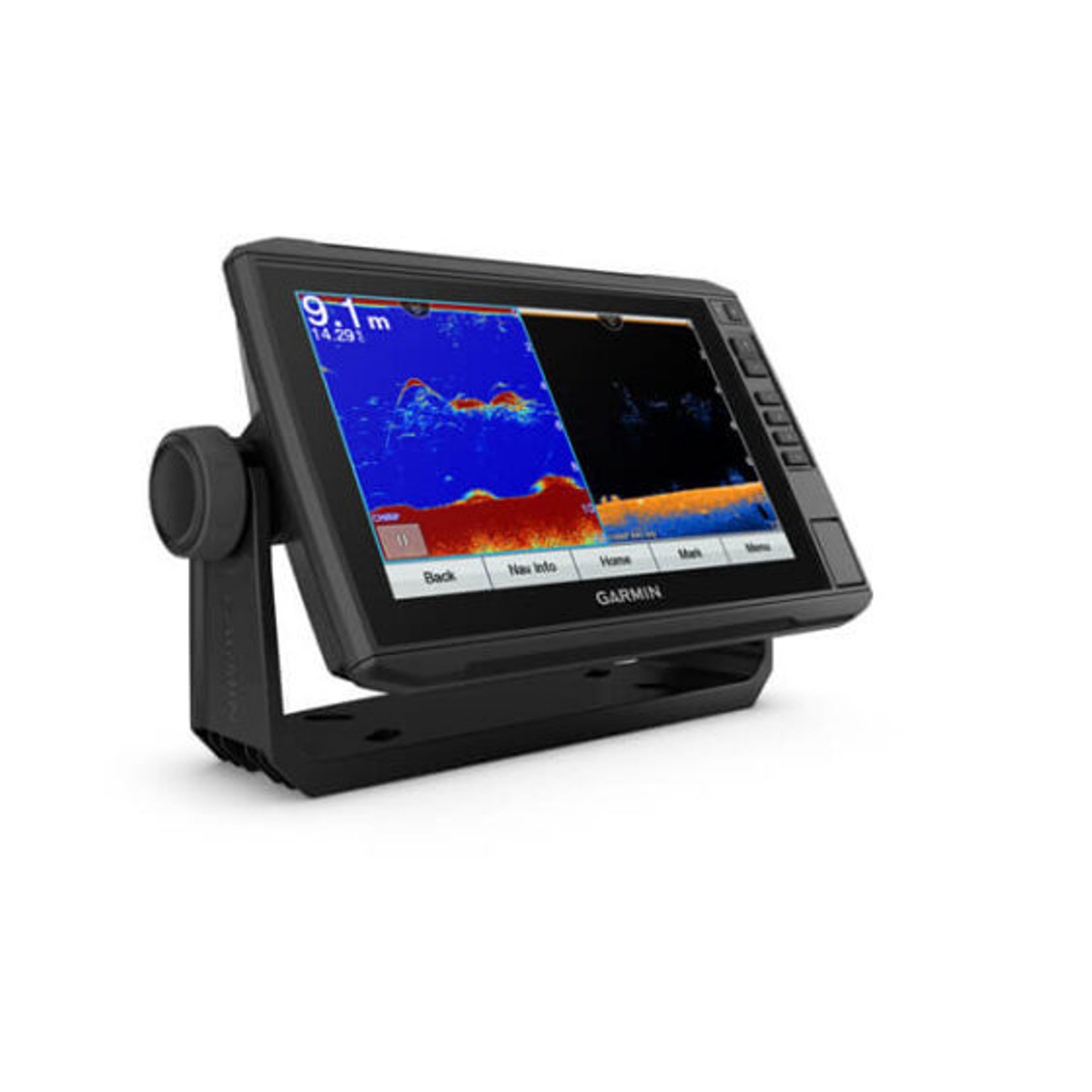

ECHOMAP UHD 92 Series

Description

ECHOMAP UHD 92 Series

Motor
Water rating IPX7
Maps & memory
Accepts data cards 1 microSD ™ card, 32GB maximum card size
Routes 100
Connections
Transducer Pin Numbers 4
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports None
Video output ports None
Wireless connectivity
Chartplotter Features
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
ActiveCaptain compatible
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
CHIRP sonar technology Yes (Built-in)
SideVü™ No
ClearVü Yes with CHIRP (built-in)
Maximum depth 700 metres @ 77 kHz, freshwater 335 metres @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind
Miscellaneous
Water rating IPX7
Additional
PHYSICAL DIMENSIONS Additional
General Additional
PHYSICAL DIMENSIONS 11.4″ x 6.5″ x 2.4″ (28.2 x 16.4 x 6.0 cm)
DISPLAY SIZE 7.8″ x 4.8″; 9″ diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT 2.3 lbs (1.0 kg)
WATER RATING IPX7
MOUNTING OPTIONS Bail or flush
POWER CONSUMPTION 18W
ANTENNA Internal or external over NMEA 2000
TRANSMIT POWER 500 W (RMS) / 4,000 W (peak to peak)
RECEIVER 5 Hz
GARMIN MARINE NETWORK™ PORTS 1 Panoptix™ port
Maps & Memory 1 Panoptix™ port
PRELOADED MAPS Worldwide basemap
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
Outdoor Recreation 100
TIDE TABLES
Chartplotter Features
GARMIN SONAR COMPATIBLE
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)
GCV™ BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN COMPATIBLE
SAILING FEATURES
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
CHIRP SONAR TECHNOLOGY Yes (Built-in)
CLEARVÜ Yes with CHIRP (built-in)
SIDEVÜ Yes with CHIRP (built-in)
MAXIMUM DEPTH 2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH
SONAR RECORDING
SONAR HISTORY REWIND

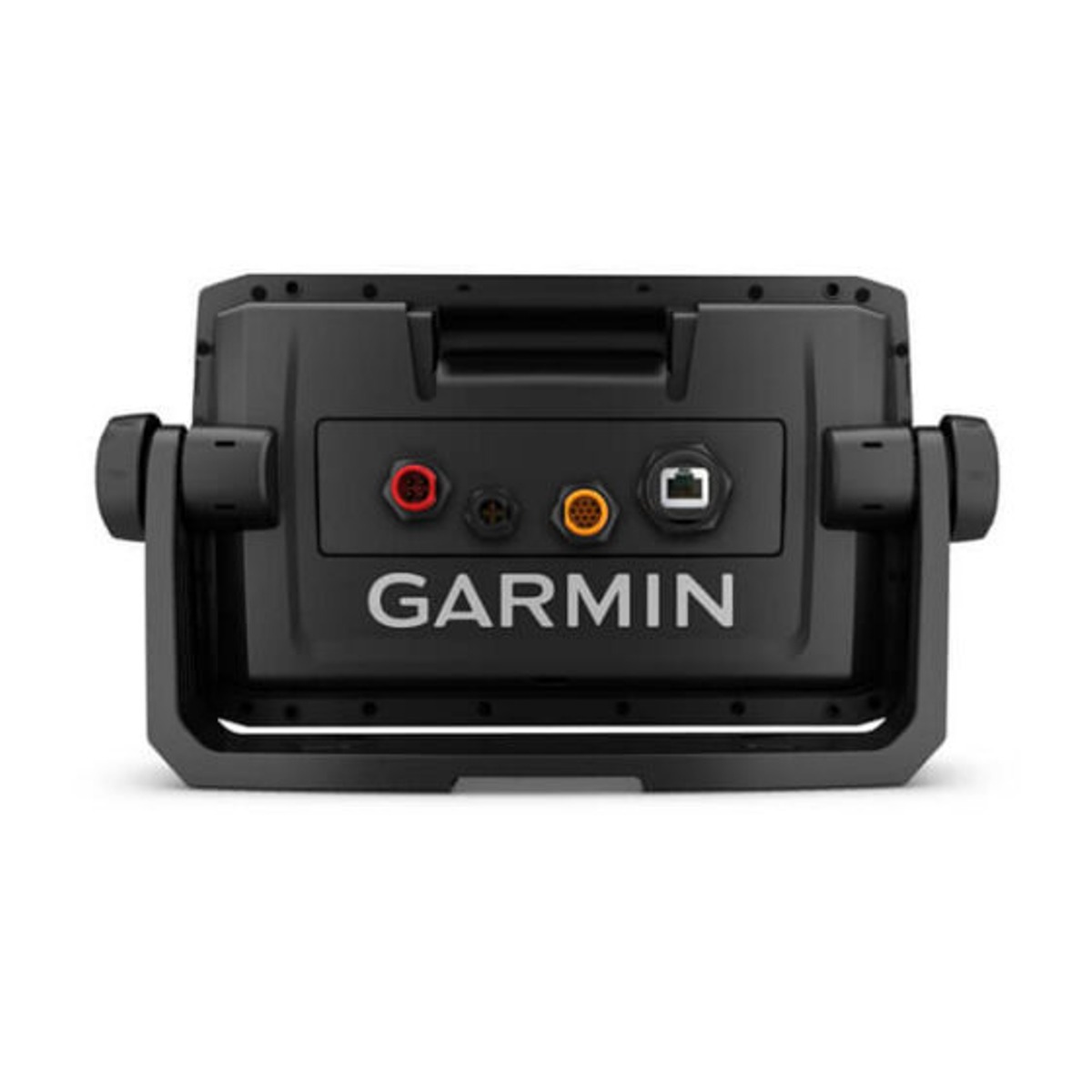

Connections
NMEA 2000® COMPATIBLE
TRANSDUCER PIN NUMBERS 12
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS None
VIDEO OUTPUT PORTS None
