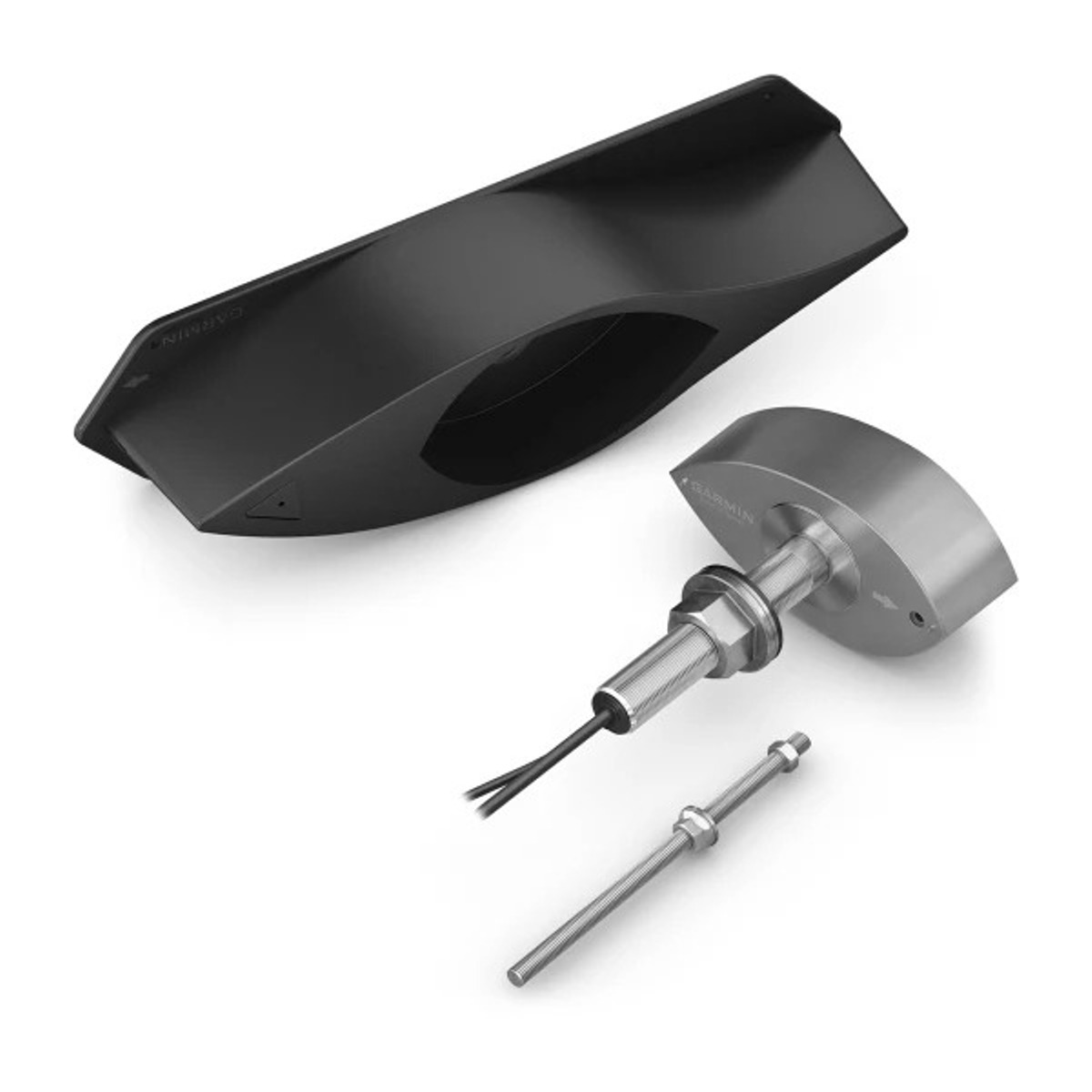

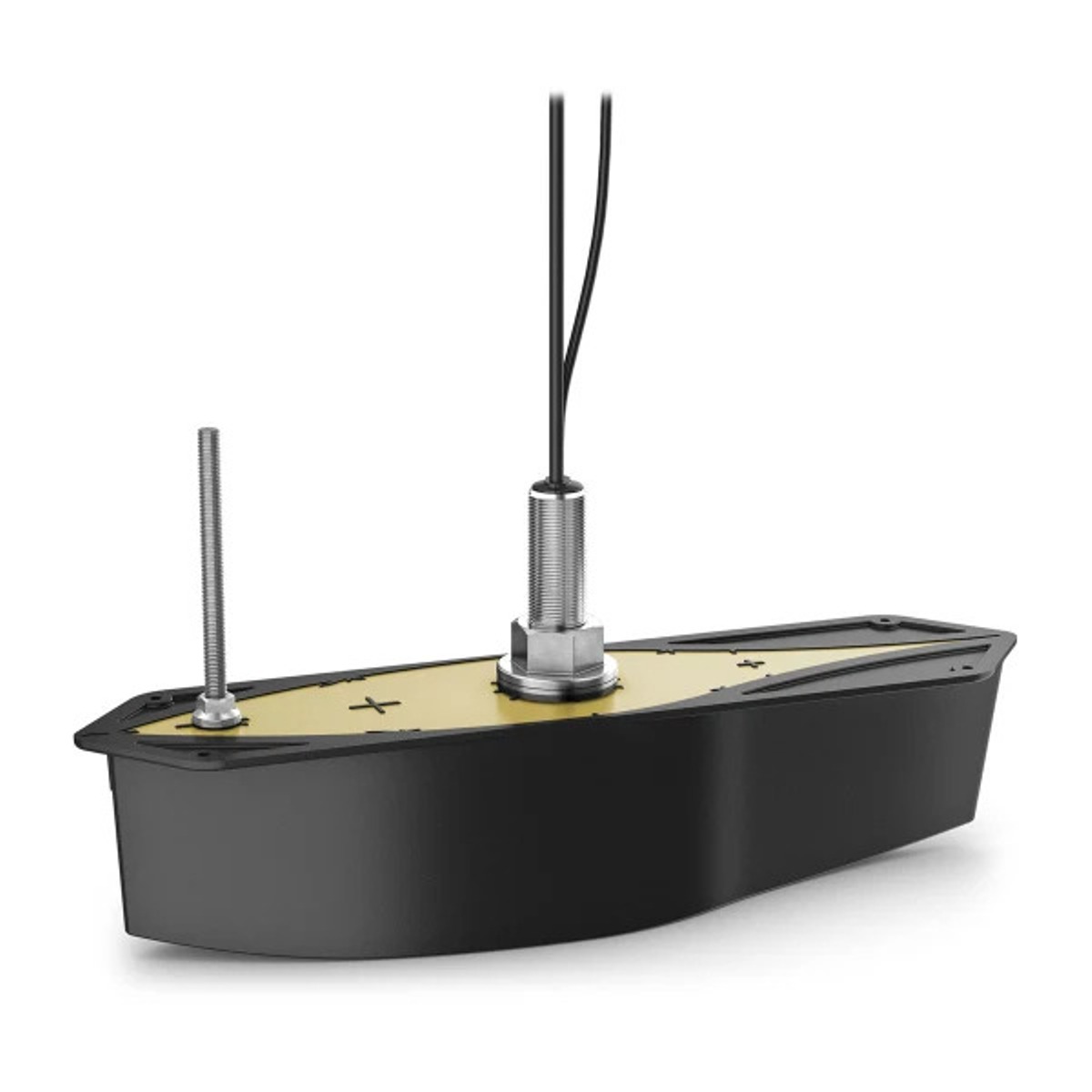

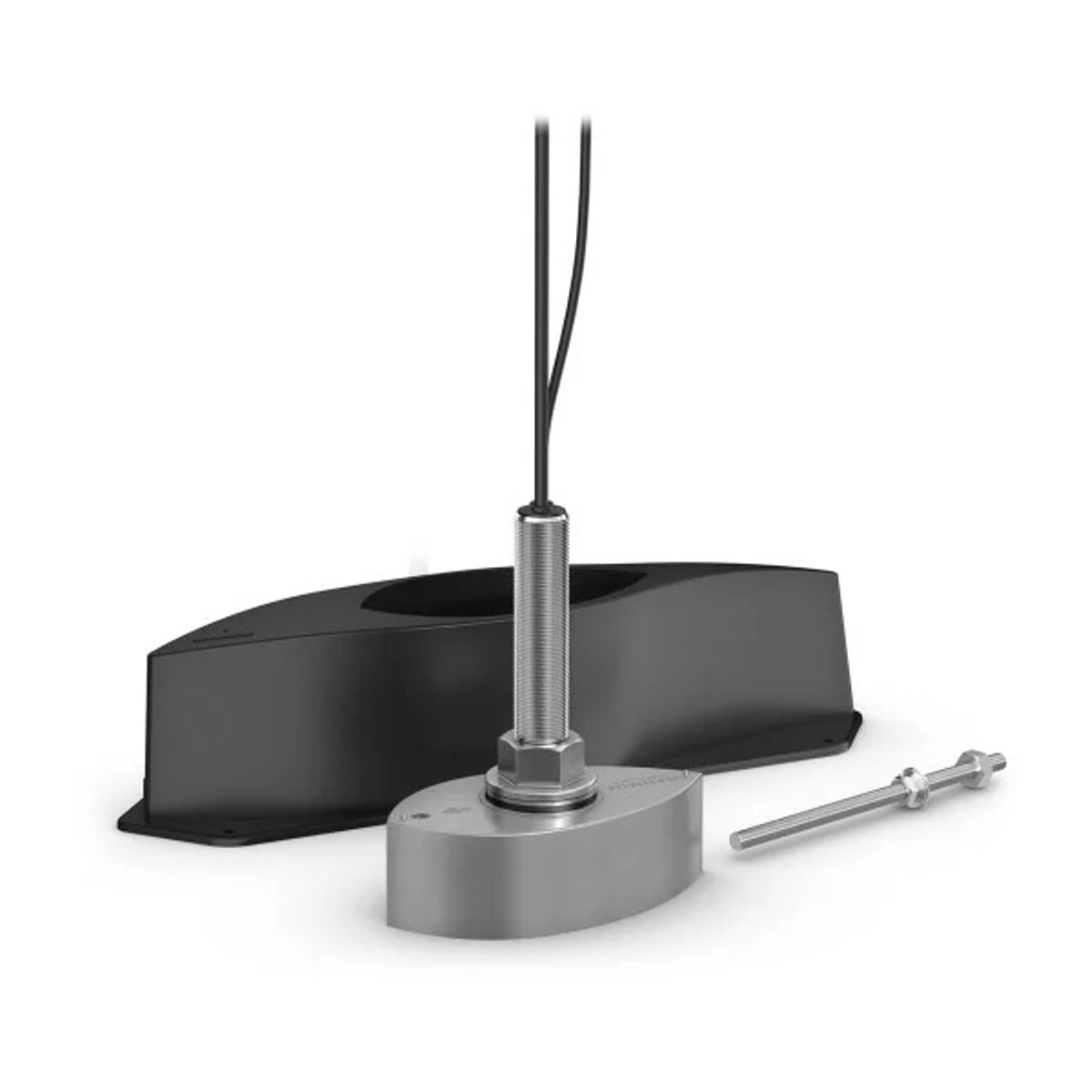

Panoptix™ PS70

Description

Panoptix™ PS70

General
DIMENSION 21.6 x 11.4 x 24.4 cm (8.5″ x 4.49″ x 9.61″)
WEIGHT 4.6 kg (10.12 lbs)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 120° x 8°
TRANSDUCER CABLE LENGTH 2.4 m (8 ft) + 12.1 m (40 ft) extension
TEMPERATURE RANGE 0° C to 40° C
Electrical features
POWER INPUT 10-35 V
POWER USAGE 35 W
FUSE 7.5 A
Sonar features & specifications
FREQUENCY 190-210 kHz
TRANSMIT POWER 800 W
MAXIMUM DEPTH Saltwater: 300 m (1000′)
SONAR TYPE Multi-beam phased array
Connections
GARMIN MARINE NETWORK PORTS 1 (small connector)
Sonar Modes
REALVÜ 3D HISTORIC
3-BEAM TRADITIONAL
TRADITIONAL SONAR SOURCE
