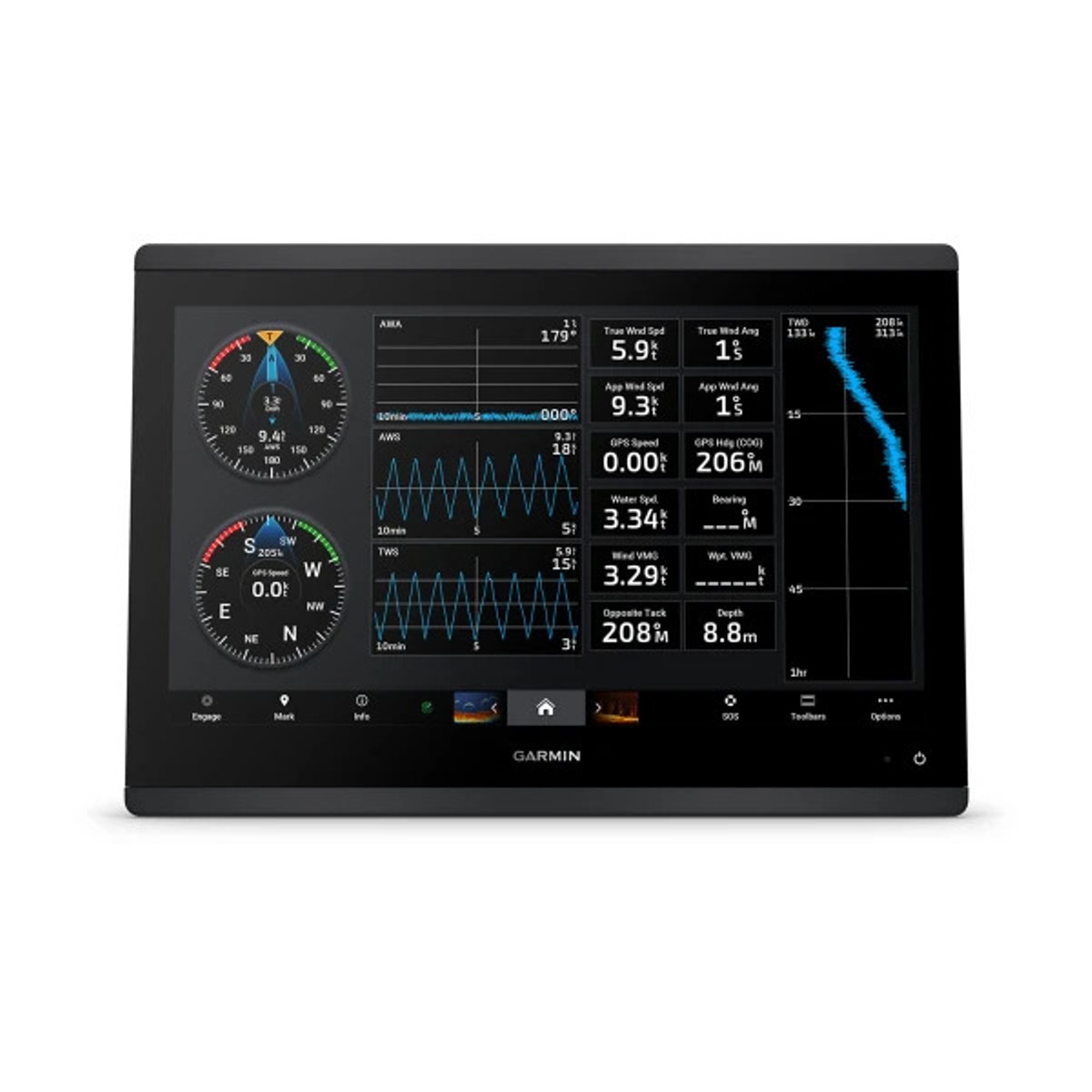

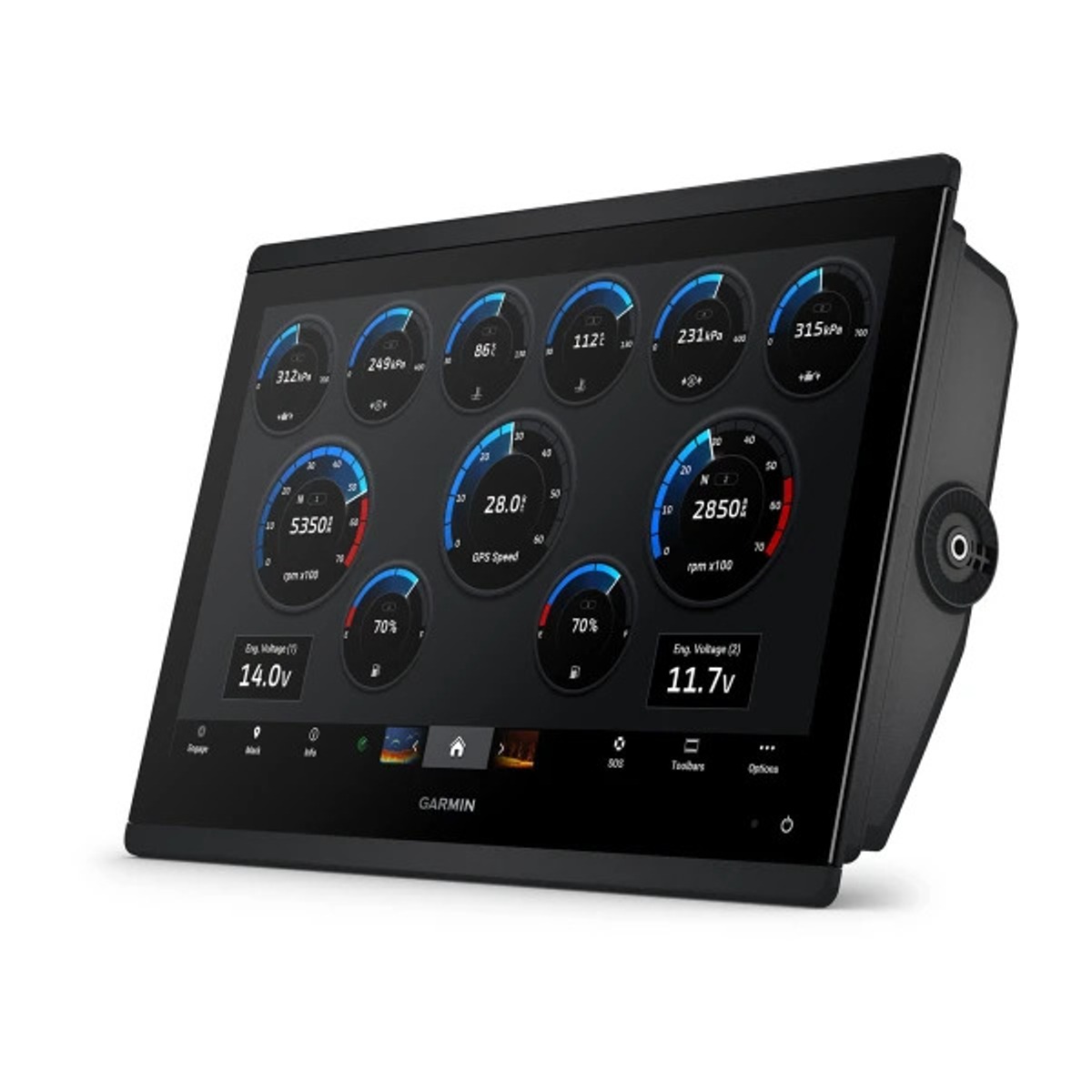

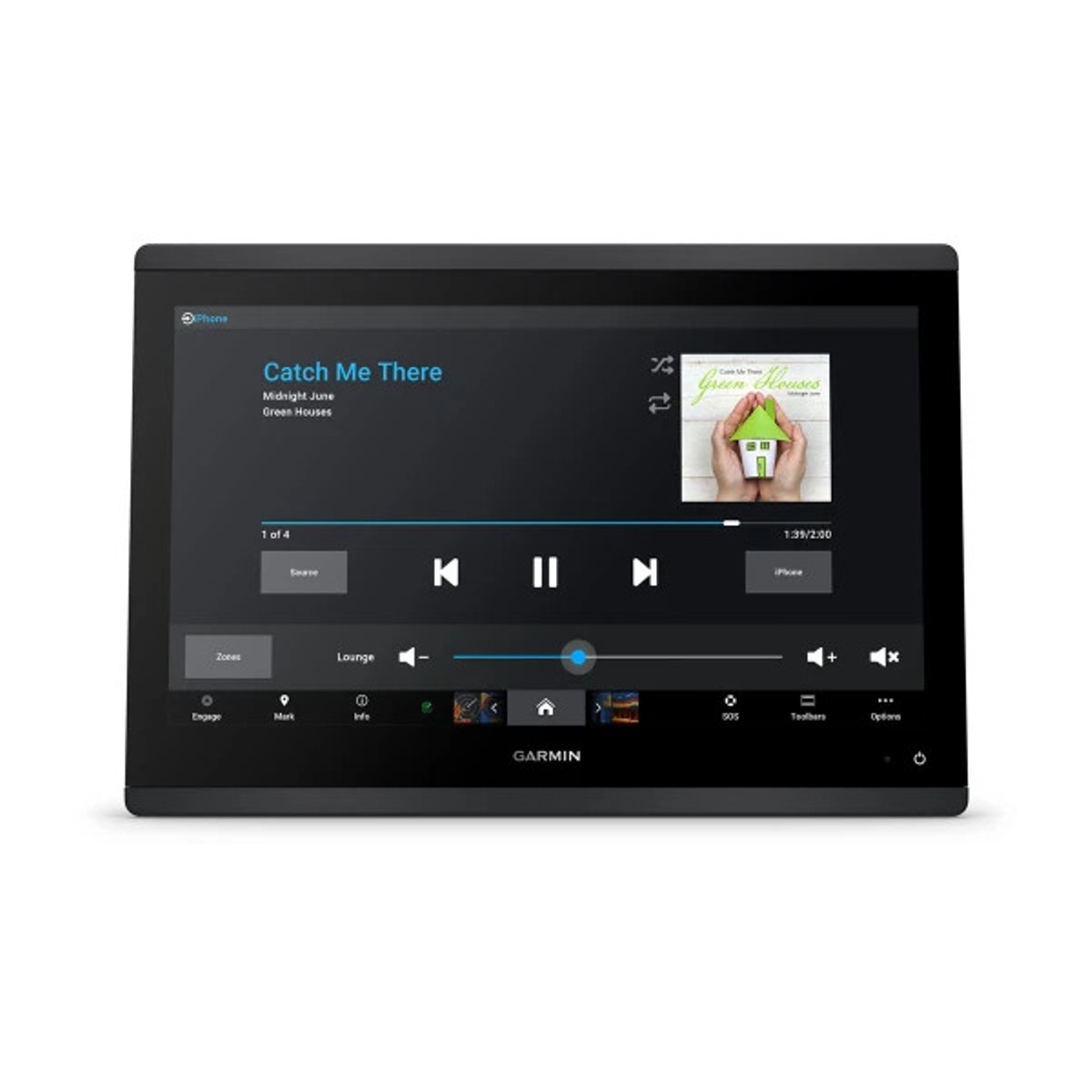

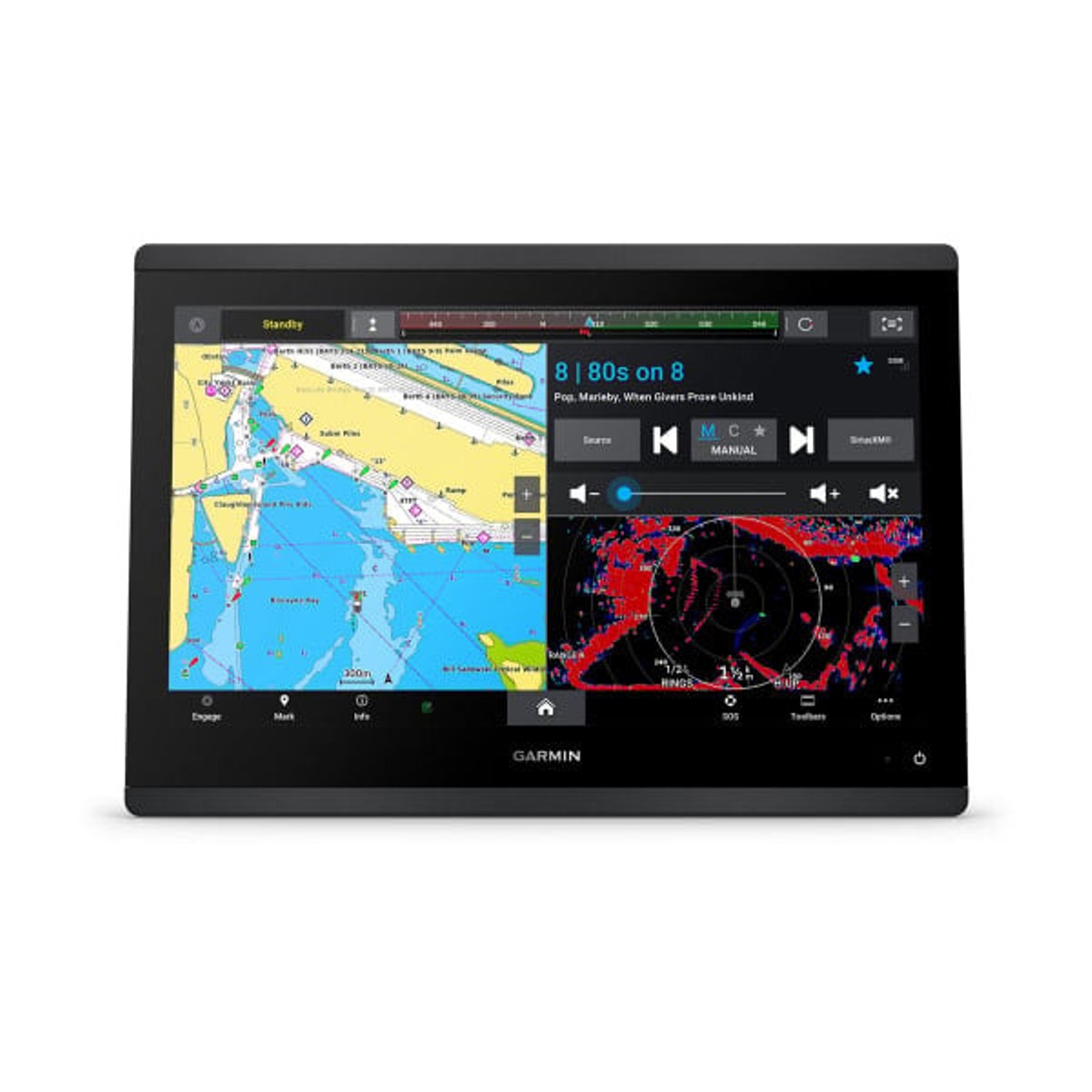

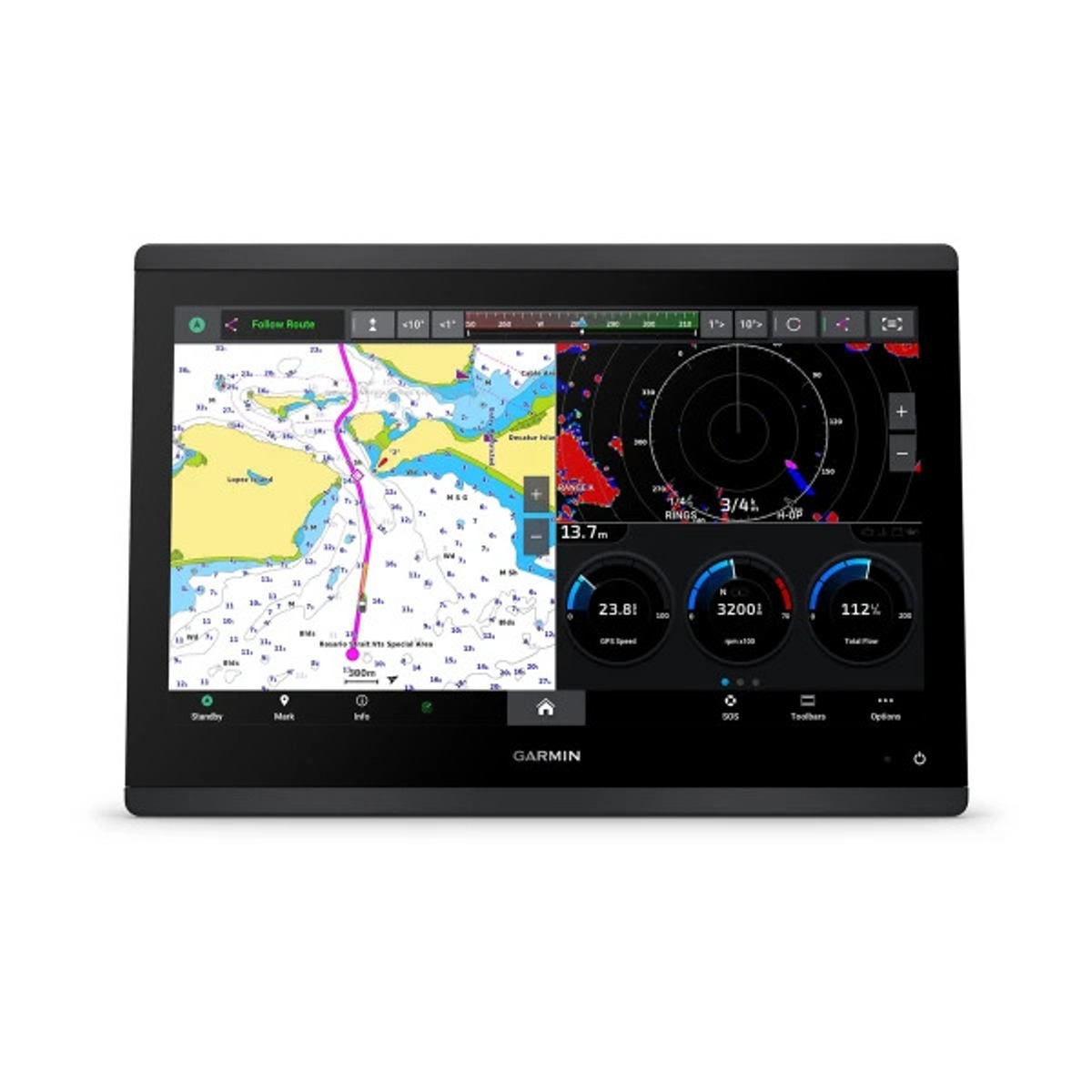

Garmin GPSMAP 1623

Description

Garmin GPSMAP 1623

General
Dimension 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm)
Touchscreen
Input Touchscreen
Display Size 6.1\” x 3.5\”; 7.0\” diagonal
(15.4 x 9.1 cm; 17.8 cm diagonal)
Display Resolution 1024 x 600 pixels
Display Type WSVGA display
Weight 2.8 lbs (1.3 kg)
Water rating IPX7
Mounting Options Bail, flush or flat
Maps & memory
Accepts data cards 2 microSD™ cards (back of unit)
Waypoints 5,000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
Has built-in receiver
Receiver 10 Hz high-sensitivity
NMEA 2000® compatible
NMEA 0183 Compatible
GPS
GLONASS
Galileo
Supports WAAS
Built-in Maps
Built-in Auto Guidance
BlueChart (coastal)
LakeVu (inland)
(Sounder) Tide tables
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
(Sounder) TOPO
Standard Mapping
Garmin Quickdraw Contours
Raster chart support
Chartplotter Features
Garmin SmartMode compatible (customisable monitor presets)
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV™ Black Box sonar support
ActiveCaptain Mobile Planning Compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible
sailing-features
Spoken audio alerts
OneHelm support
Sonar Features & Specifications
Displays sonar
Traditional sonar (dual frequency/beam) yes (with GCV™ black box, sold separately)
ClearVü yes (with GCV™ black box, sold separately)
(Sounder) SideVü yes (with GCV™ black box, sold separately)
Panoptix™ sonar
LiveScope
Connections
NMEA 2000 ports 1
Connections NMEA0183 Input Ports 1 (Differential)
NMEA 0183 input (Tx) ports 1
Video input ports 1 BNC
J1939 ports 1
Connections Garmin Marine Network Ports 1
USB ports
BNC external GPS antenna port
Bluetooth® calling
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)
Electrical Features
Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 1.08 A
Maximum current draw at 12 Vdc 1.45 A
Maximum power usage at 10 Vdc 17.6W
