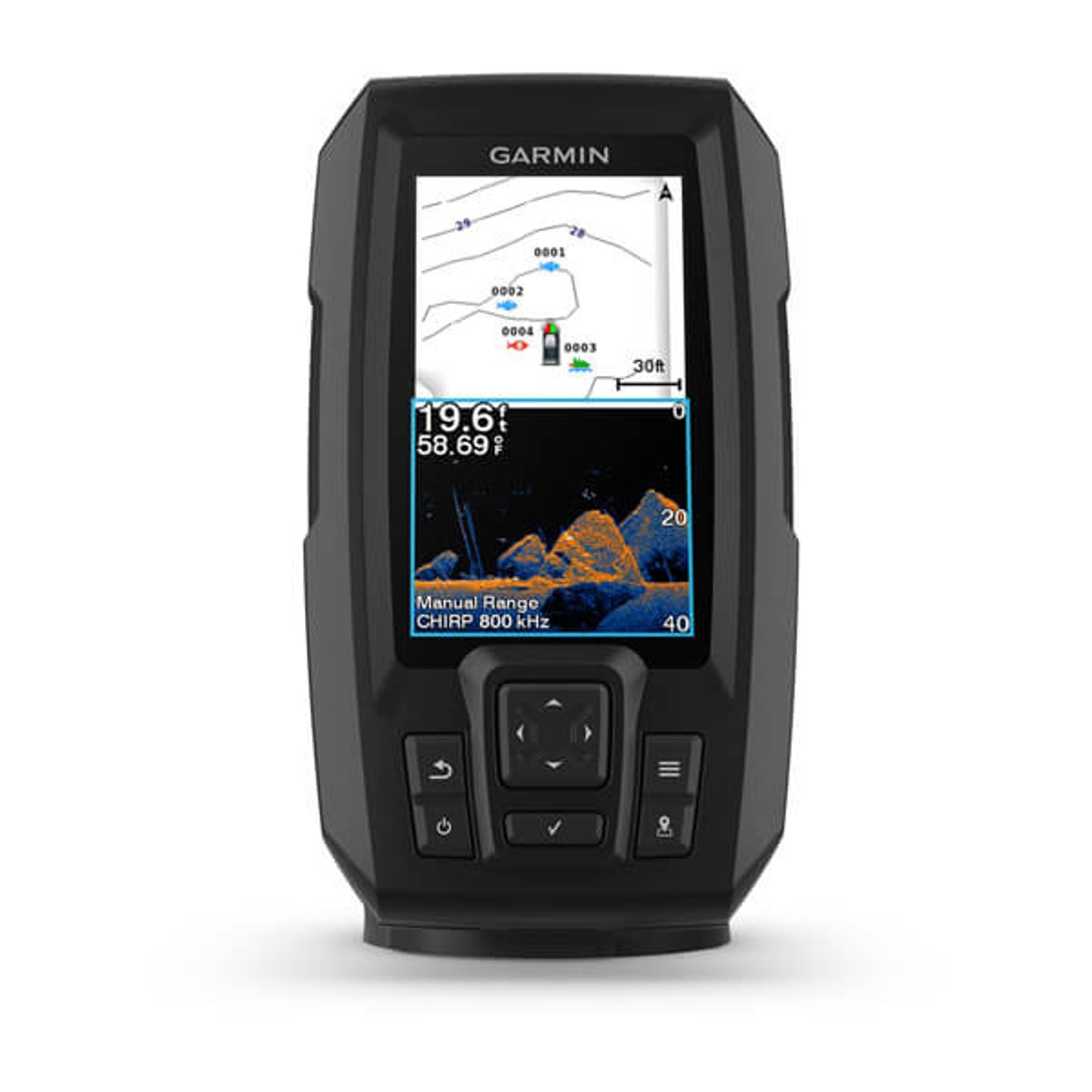

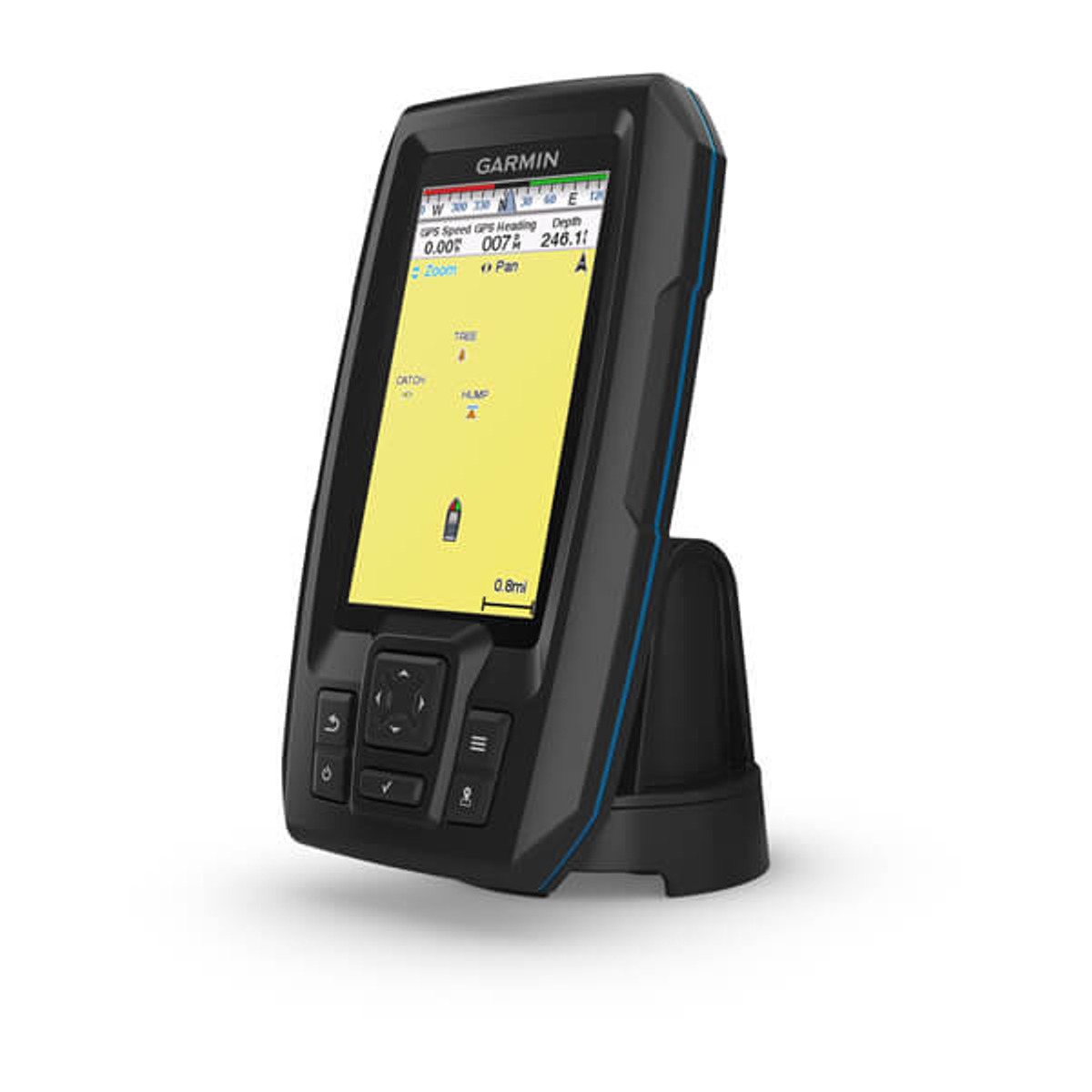

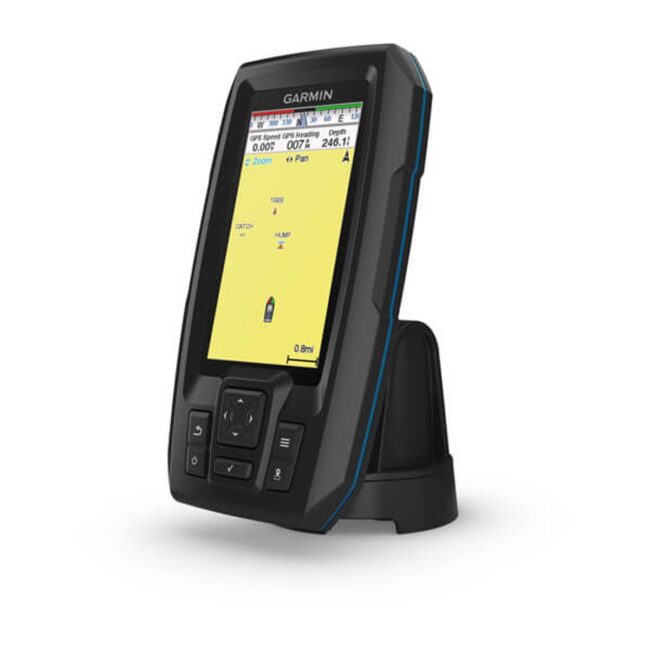

Garmin Striker Vivid 4Cv Ww W/Gt20

Description

Garmin Striker Vivid 4Cv Ww W/Gt20

General
Dimension 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm)
Input Keyed
Display Size 2.1″ x 3.7″ (5.4 x 9.5 cm); 4.3″ diag, (10.9 cm)
Display Resolution 272 X 480 pixels
Display Type QSVGA
Weight 0.7 lbs (0.3 kg)
Water rating IPX7
Mounting Options flush, tilt/swivel
Maps & memory
Waypoints/favourites/locations 5000
Track points 50,000
Tracks 50
Navigation Routes 100
Sensors
Has built-in receiver
Receiver Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz
GPS
Supports WAAS
Optional Map Support
Garmin Quickdraw Contours
Sonar Features & Specifications
Displays sonar
Traditional sonar (dual frequency/beam) Built-in
ClearVü
Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Bottom lock (shows return from the bottom up)
Water Temperature Log

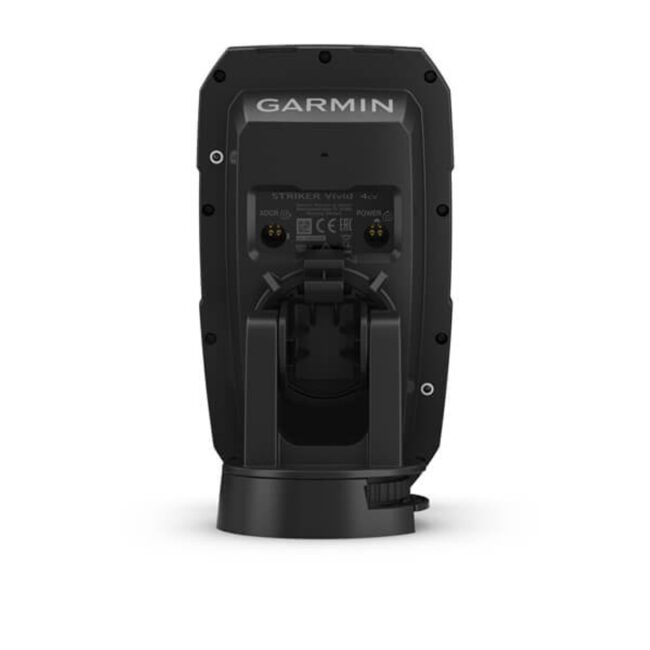

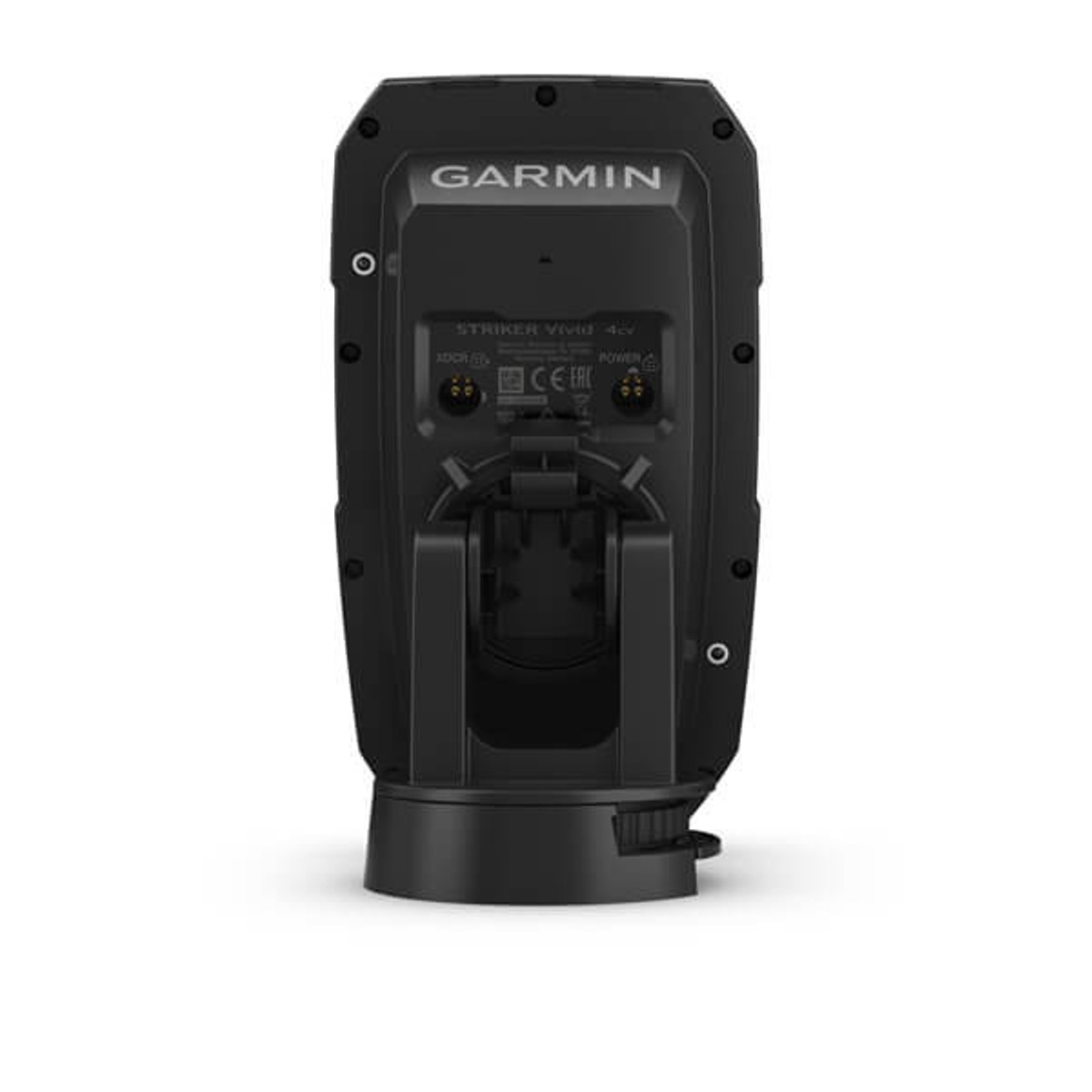

Connections
4-pin transducer ports 1
Electrical Features
Power Input 12 to 20 Vdc
Typical current draw 0.40 A
Max current draw 1.5 A
Power Consumption 4.8
Transmit power 300 W (RMS)
Fishfinder Features
Split-screen zoom
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimises clutter, maximises targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included
Depth range shading
Additional
Additional One 4-pin transducer port
Quickdraw Contours
Integrated GPS
Mark Waypoints
Course over Ground (COG)
Current draw @ 12V: 0.40A
