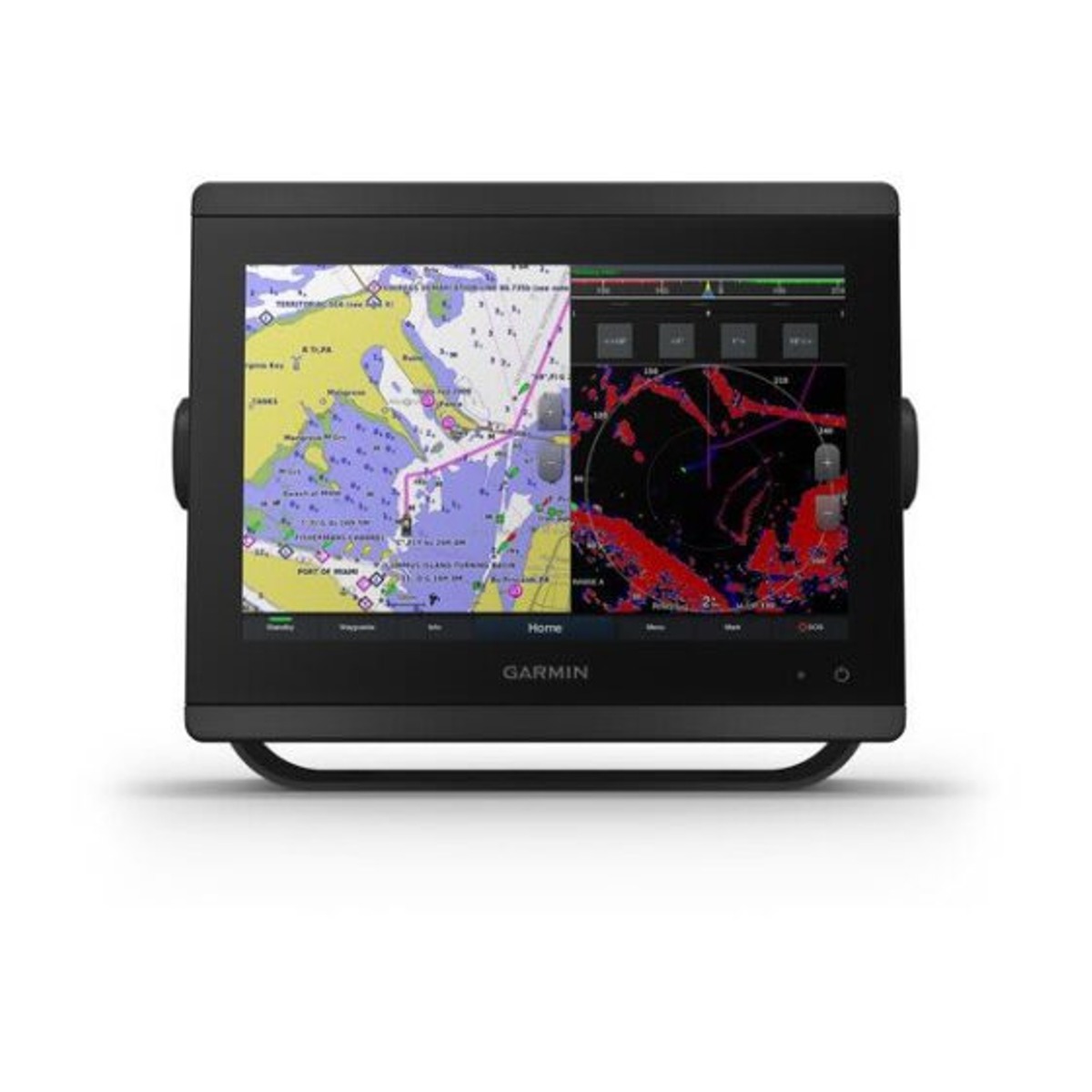

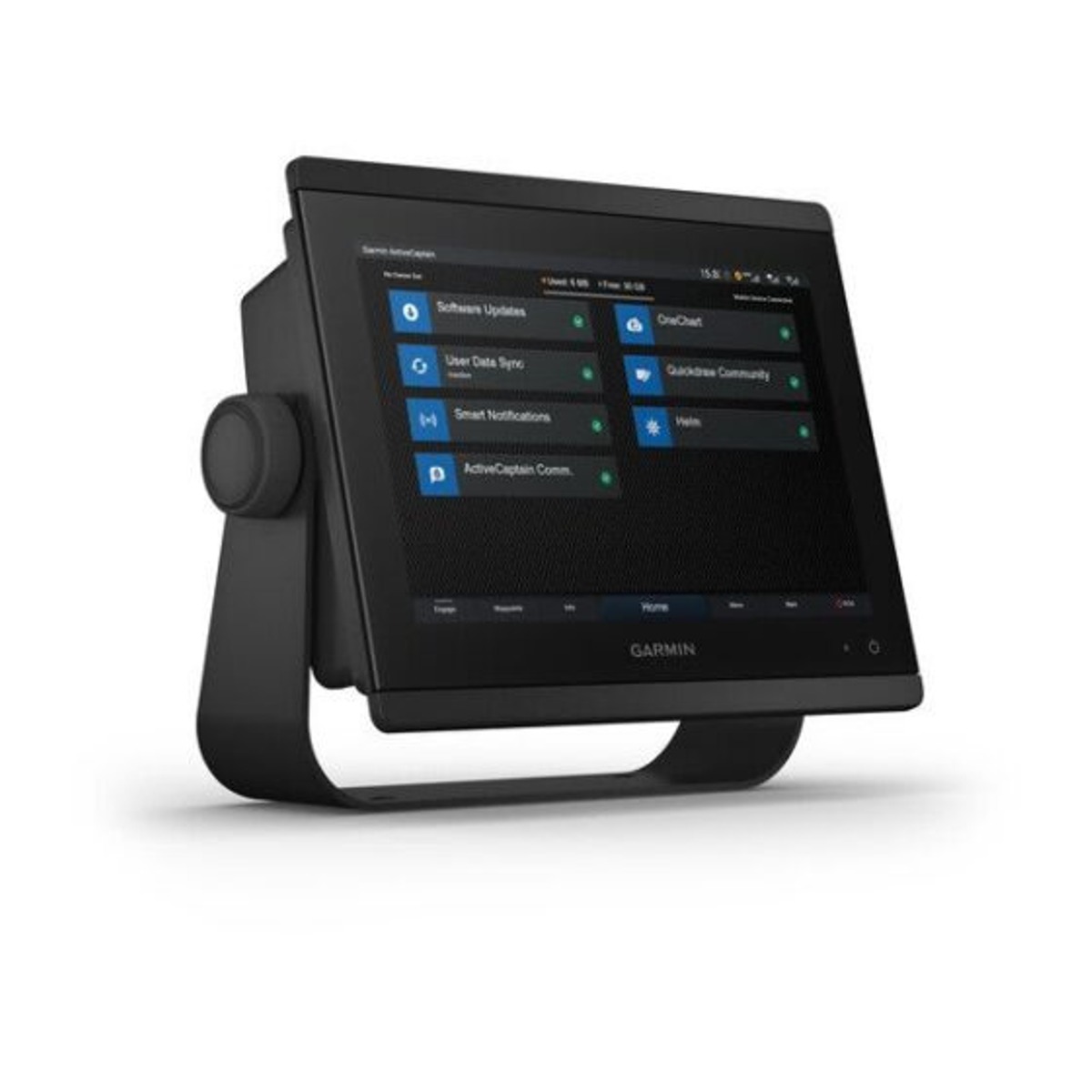

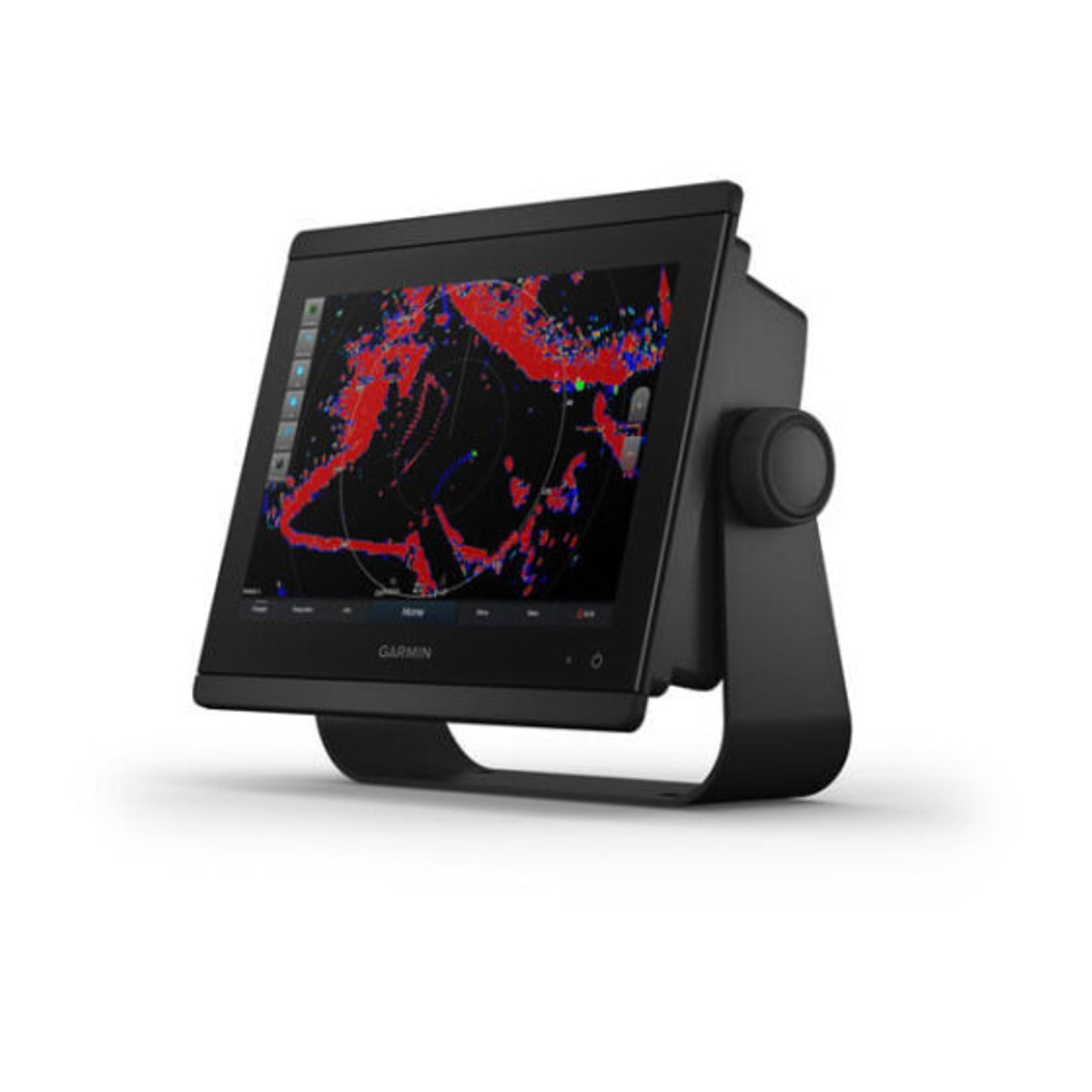

GPSMAP® 8410

Description

GPSMAP® 8410

General
DIMENSION 25.9 cm x 20.5 cm x 7.5 cm
TOUCHSCREEN
DISPLAY SIZE 21.8 cm x 13.7 cm; 10.1″ (25.7 cm) diagonal
DISPLAY RESOLUTION WUXGA; 1920 x 1200 px
DISPLAY TYPE Touchscreen IPS display (anti-glare finish)
WEIGHT 2.4 kg
WATER RATING IPX7
MOUNTING OPTIONS Bail, flat or flush. (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Maps & memory
ACCEPTS DATA CARDS 2 SD™ cards (on back of unit)
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100 (250 waypoints each)
Sensors
HAS BUILT-IN RECEIVER
RECEIVER 10 Hz GPS/GLONASS/Galileo
NMEA 2000® COMPATIBLE
NMEA 0183 COMPATIBLE
GPS
GLONASS
GALILEO
SUPPORTS WAAS
Built-in Maps
(SOUNDER) TIDE TABLES
Optional Map Support
BLUECHART G3
BLUECHART G3 VISION
LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
(SOUNDER) TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
RASTER CHART SUPPORT
Chartplotter Features
GARMIN SMARTMODE COMPATIBLE (CUSTOMISABLE MONITOR PRESETS)
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
GSD BLACK BOX SONAR SUPPORT
GCV™ BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
WIRELESS REMOTE COMPATIBLE
SAILING-FEATURES
SPOKEN AUDIO ALERTS
ONEHELM SUPPORT
Sonar Features & Specifications
DISPLAYS SONAR
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) yes (with GCV™ black box, sold separately)
CLEARVÜ yes (with GCV™ black box, sold separately)
(SOUNDER) SIDEVÜ yes (with GCV™ black box, sold separately)
PANOPTIX™ SONAR
LIVESCOPE

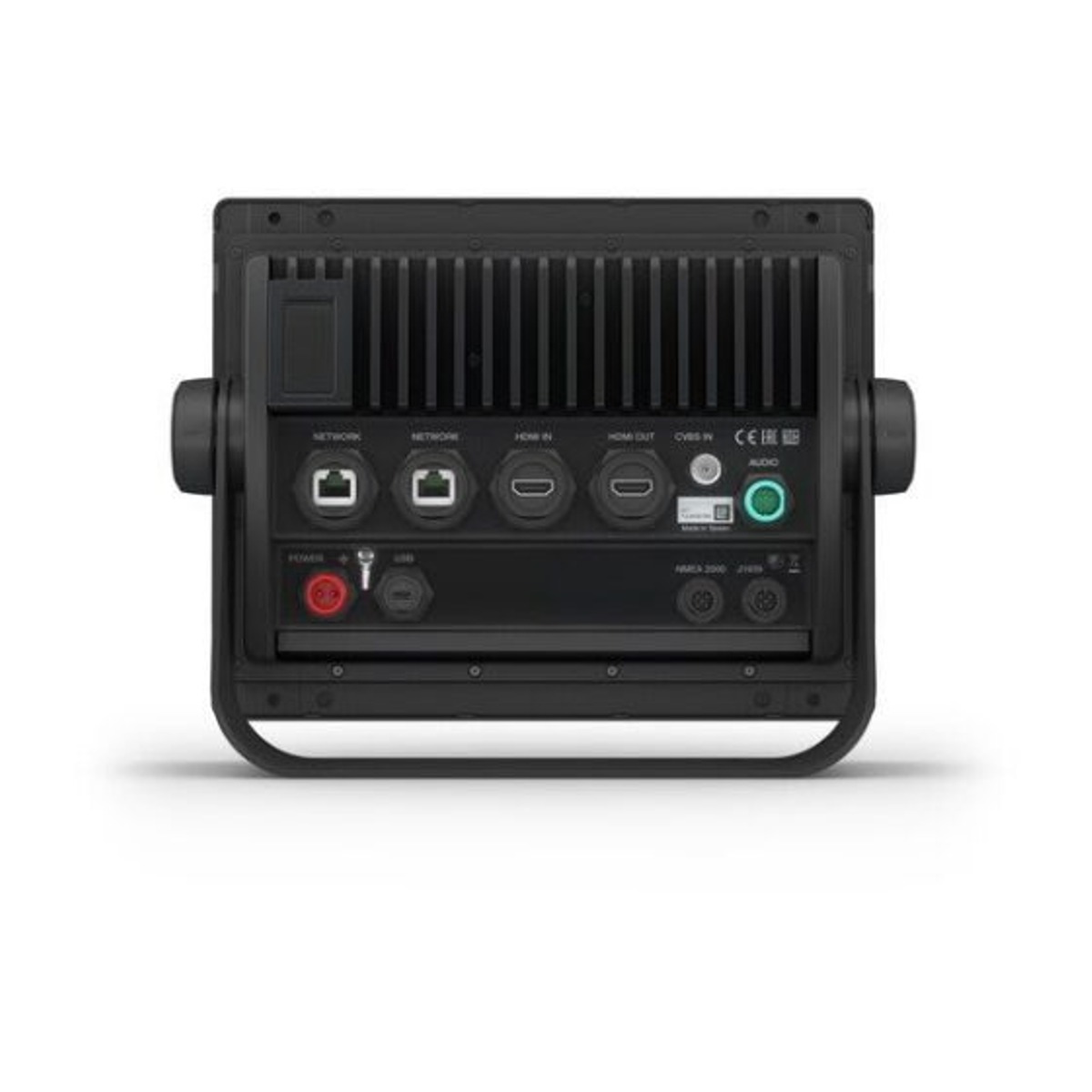

Connections
NMEA 2000 PORTS 1
CONNECTIONS NMEA0183 INPUT PORTS 1 differential
NMEA 0183 INPUT (TX) PORTS 1
VIDEO INPUT PORTS 1 – BNC composite1 – HDMI (HDCP compliant)
VIDEO OUTPUT PORTS 1 HDMI
J1939 PORTS 1
CONNECTIONS GARMIN MARINE NETWORK PORTS 2
USB PORTS
BNC EXTERNAL GPS ANTENNA PORT
BLUETOOTH® CALLING
ANT+ (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 10 to 32 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.5 A
MAXIMUM CURRENT DRAW AT 12 VDC 6.0 A
MAXIMUM POWER USAGE AT 10 VDC 40.1W
