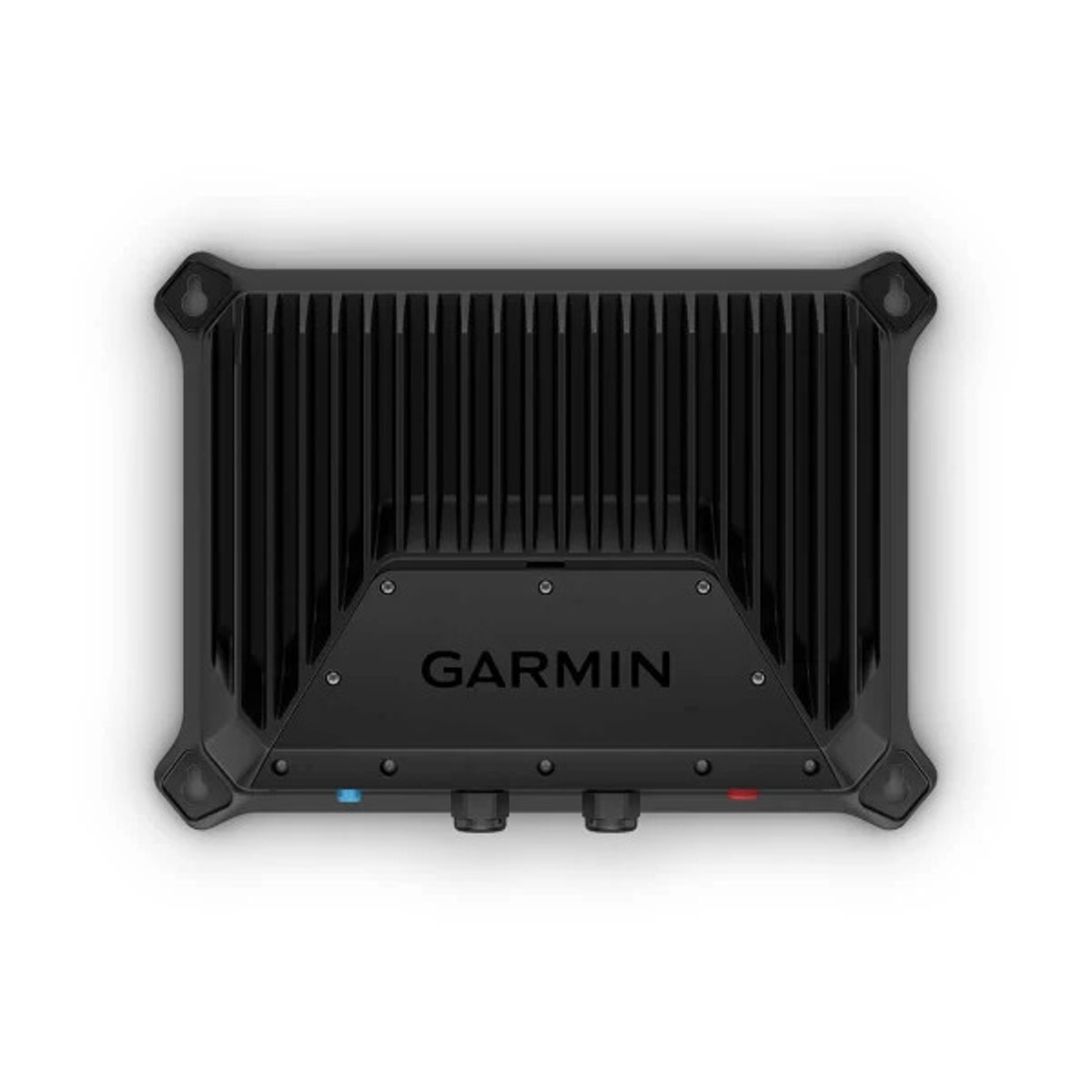

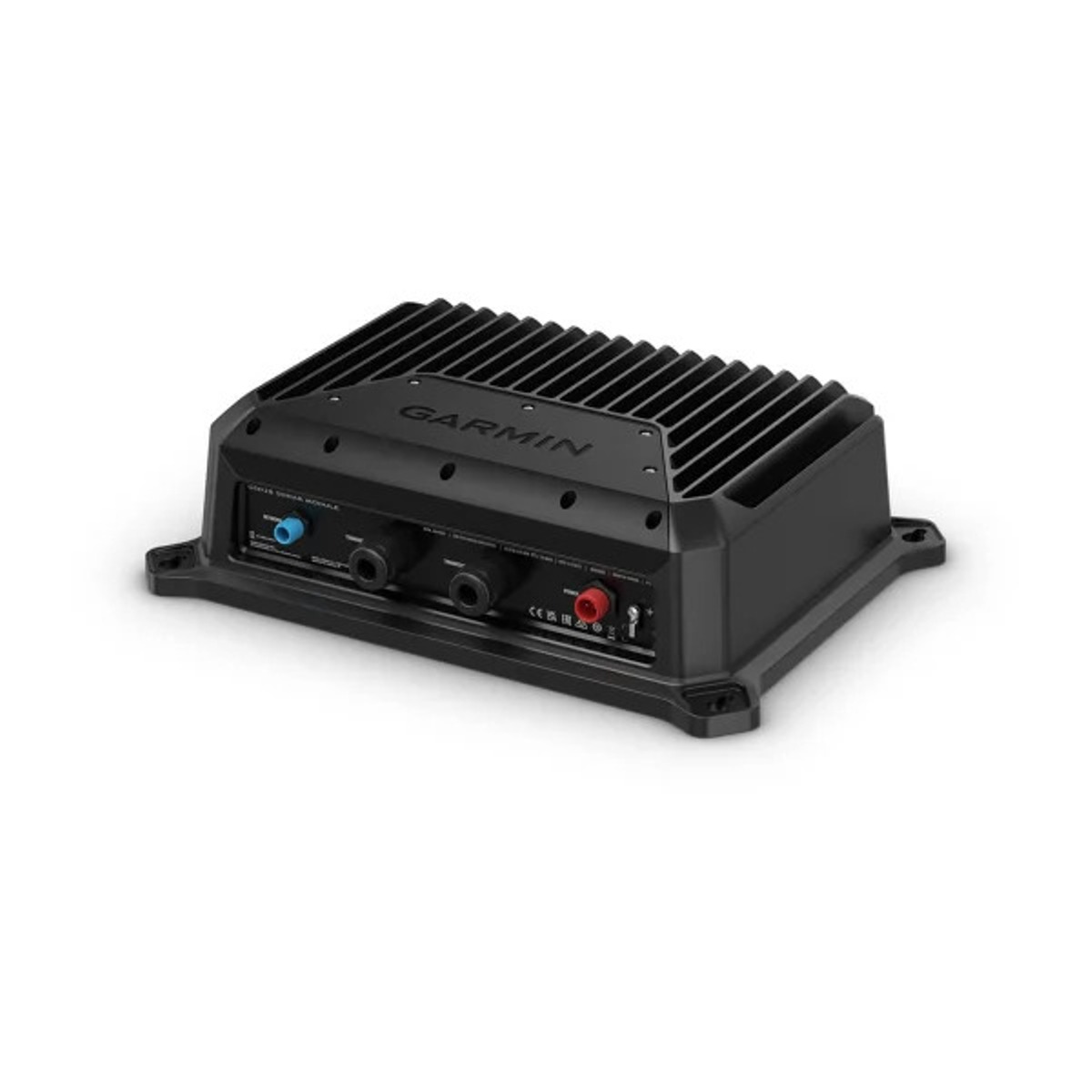

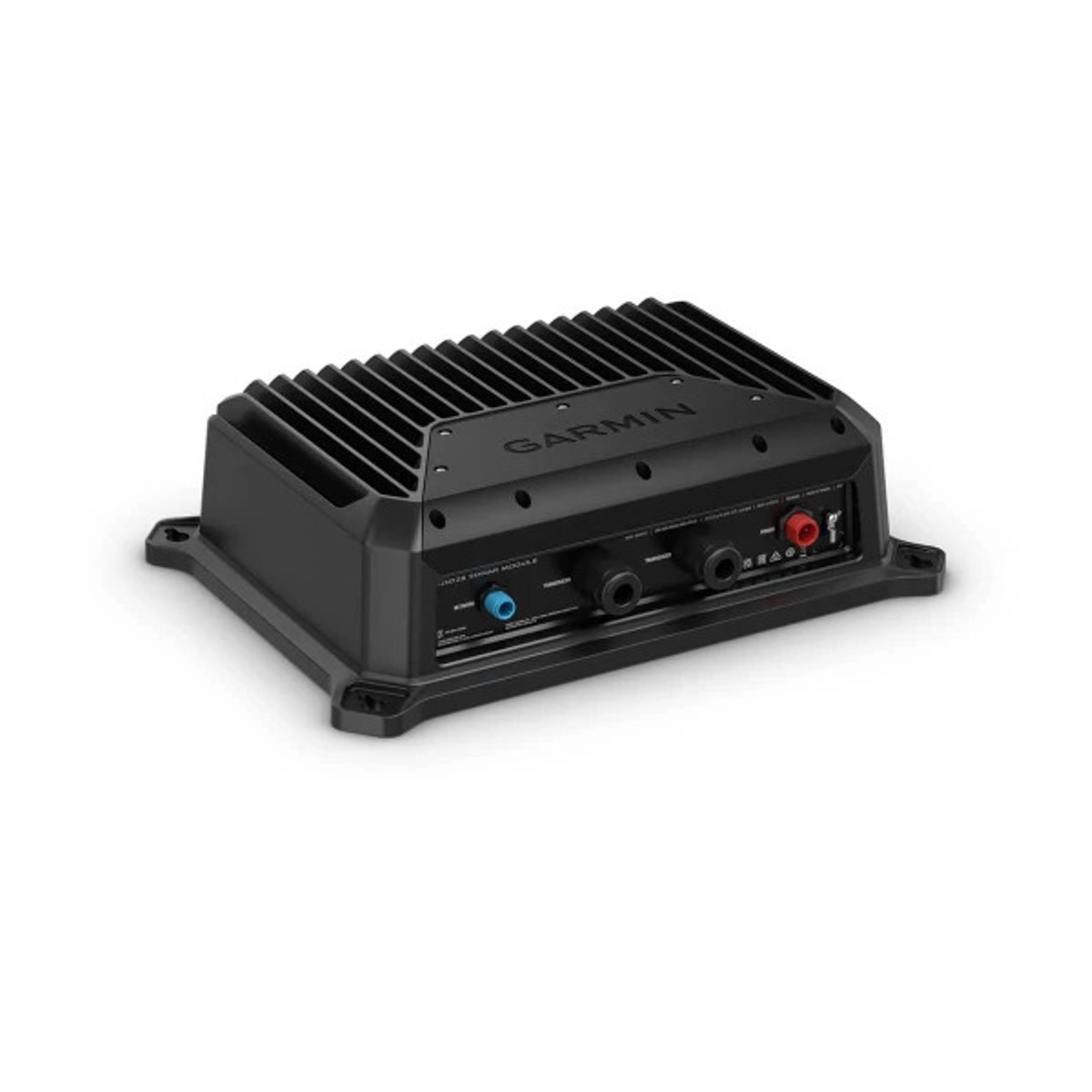

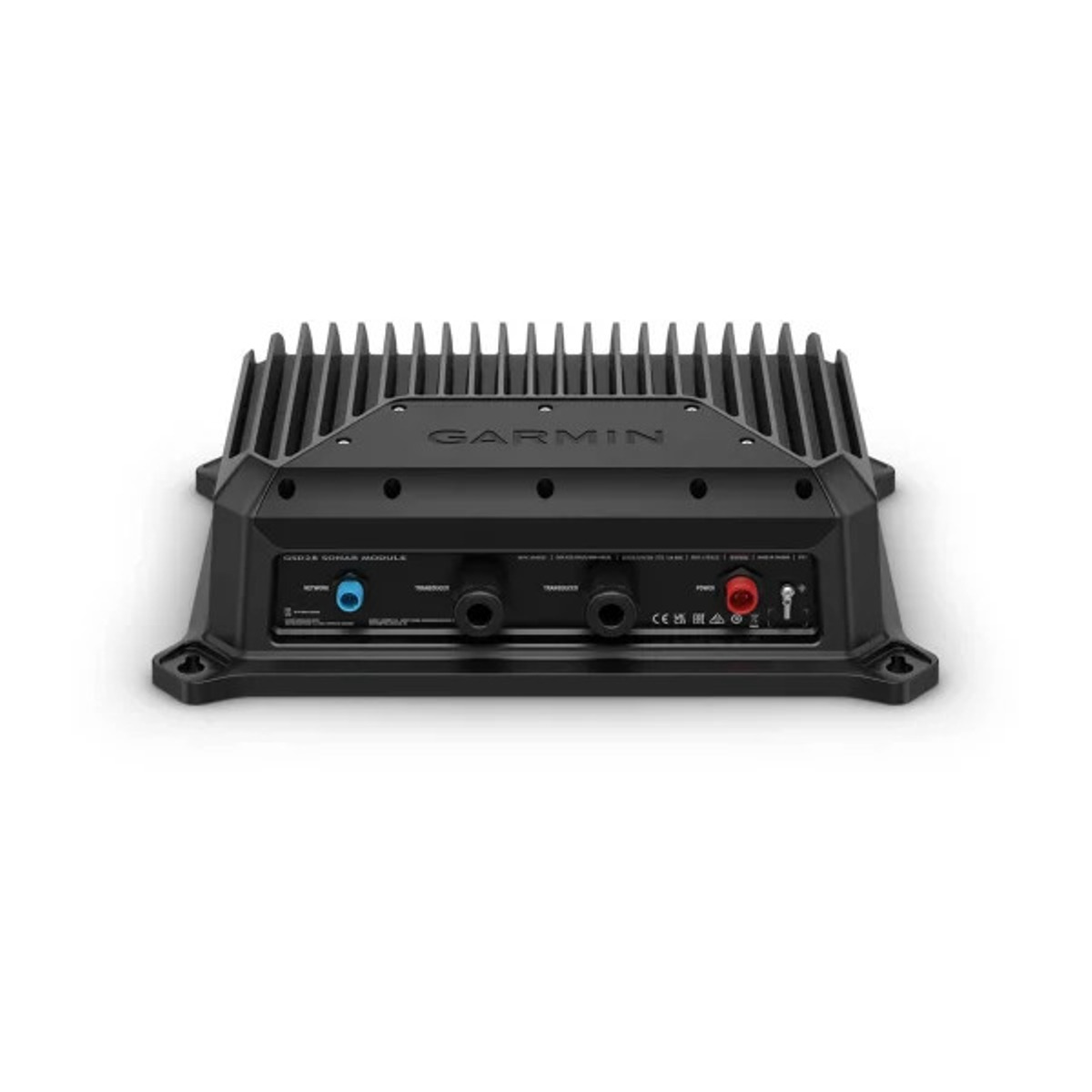

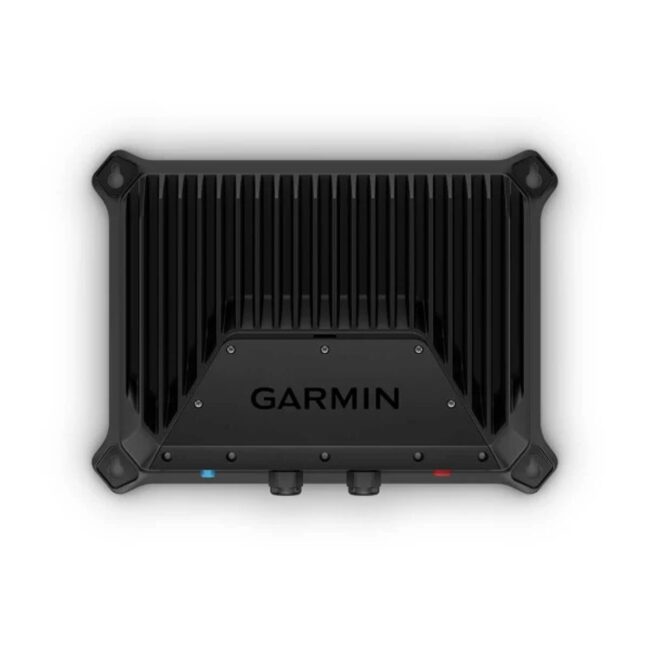

GSD™ 28 Sonar Module

Description

GSD™ 28 Sonar Module

General
Case material Fully gasketed, aluminium housing, steel back panel, plastic access panel
Physical dimensions 27.06 cm x 36.66 cm x 10.01 cm (10.7″ x 14.4″ x 4″)
Weight 6.4 kg (14.13 lbs)
Water rating IPX7
Temperature range From -15° C to 70° C (from 5° F to 158° F)
Electrical Features
Power input 10-32 V
Power Usage 120 W maximum
Fuse 15 A
Sonar features
Frequencies supported Dual channel CHIRP: 25-250 kHz (tranducer dependant)
Transmit power 300W–3kW rms (transducer dependant)
Maximum depth 3,048 m (10,000 ft)
xCHIRP Yes
Rapid return Yes
Connections
Garmin Marine Network ports 1 (Garmin BlueNet)
Sonar connections 2 bare wire
