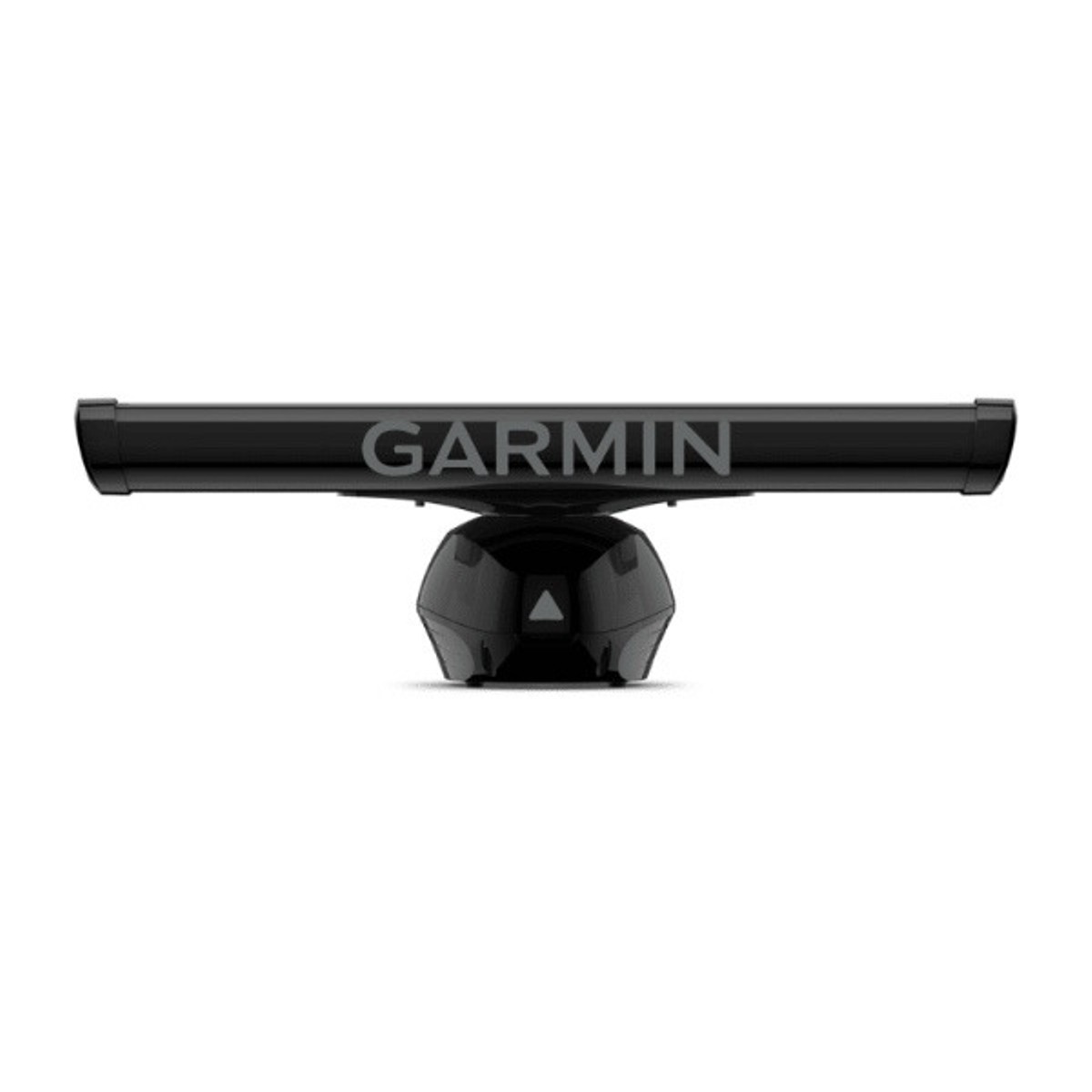

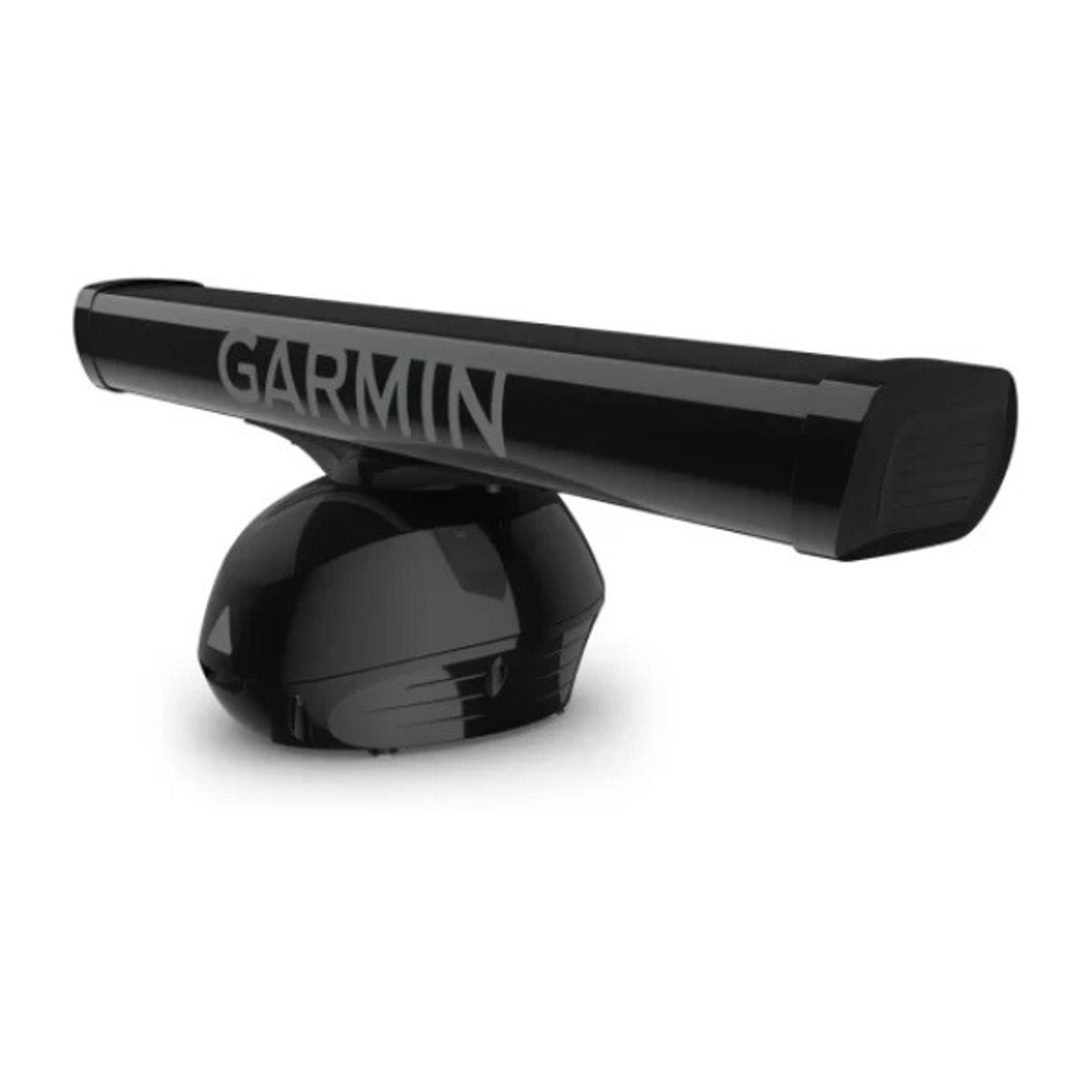

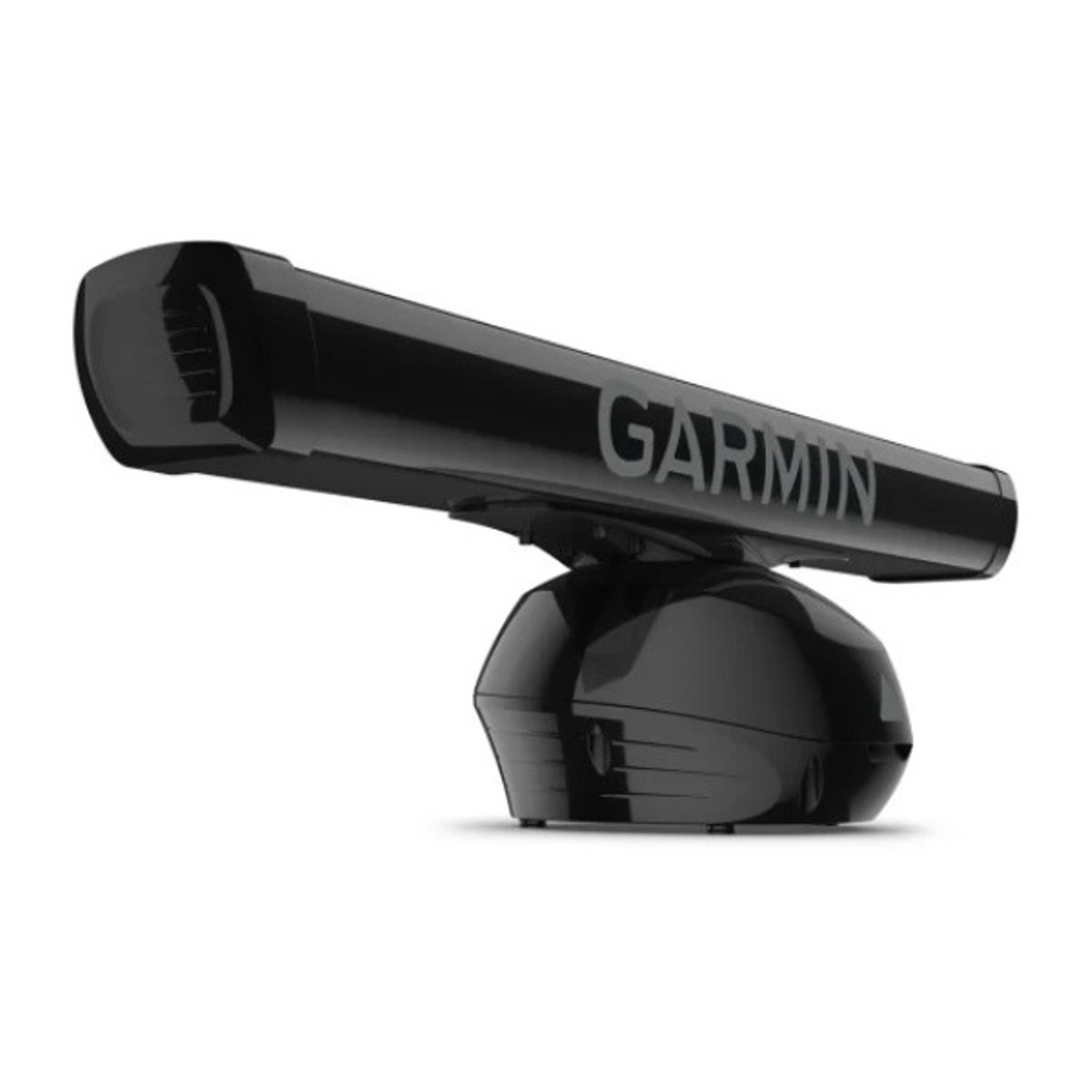

GMR Fantom 254

Description

GMR Fantom 254

General
DIMENSION Pedestal: 42.1 x 36.4 x 27.1 cm
Full assembly: 40.3 cm x 131.4 cm
WEIGHT Array: 5.2 kg
Pedestal: 15.7 kg
WATERPROOF IPX6
MAX WIND LOAD 80kt
ANTENNA LENGTH 121.92 cm
ROTATION SPEED (RPM) 24 and 48 rpm. High speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower
BEAM WIDTH 1.8° horizontal, 23° vertical
MAXIMUM RANGE 96 nm
MINIMUM RANGE 6 metres
RADAR TYPE Open-array
Electrical features
POWER INPUT 10-32 V
TRANSMIT POWER 250 W power output, the approximate equivalent to a 15 kW magnetron
Radar features
DUAL RANGE
OVERLAY
DUAL RADAR SUPPORT
AUTO BIRD GAIN
AUTO GAIN Dynamic
MARPA TARGET TRACKING yes (requires heading sensor, sold separately)
ECHO TRAILS
MOTIONSCOPE
PROGRAMMABLE ANTENNA PARKING
TARGET SIZE
SCAN AVERAGING
Additional
ADDITIONAL

Scan averaging: Yes
MotionScope: Yes
Auto Bird Gain: Yes
Dual radar support: Yes
Echo trails: Yes (true)
Programmable antenna parking position: Yes
Max wind speed: 80 kt
