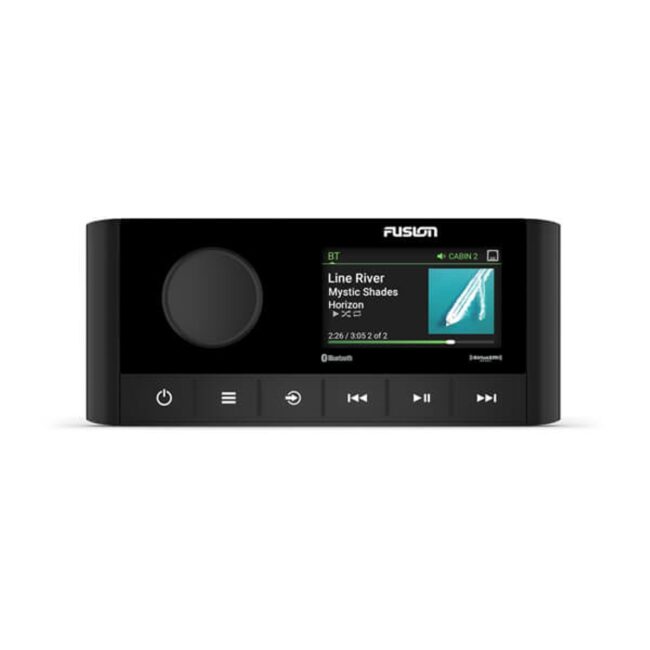

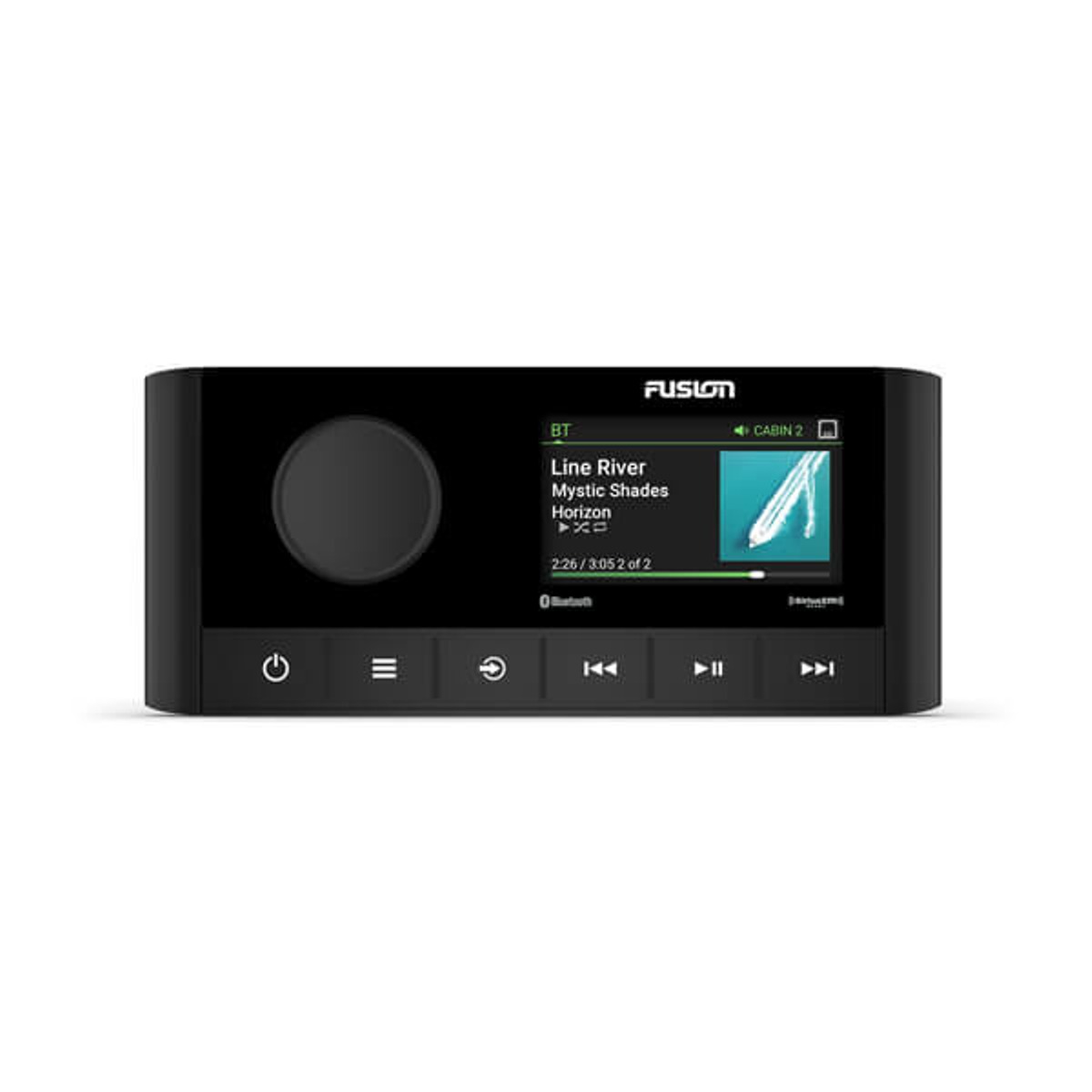

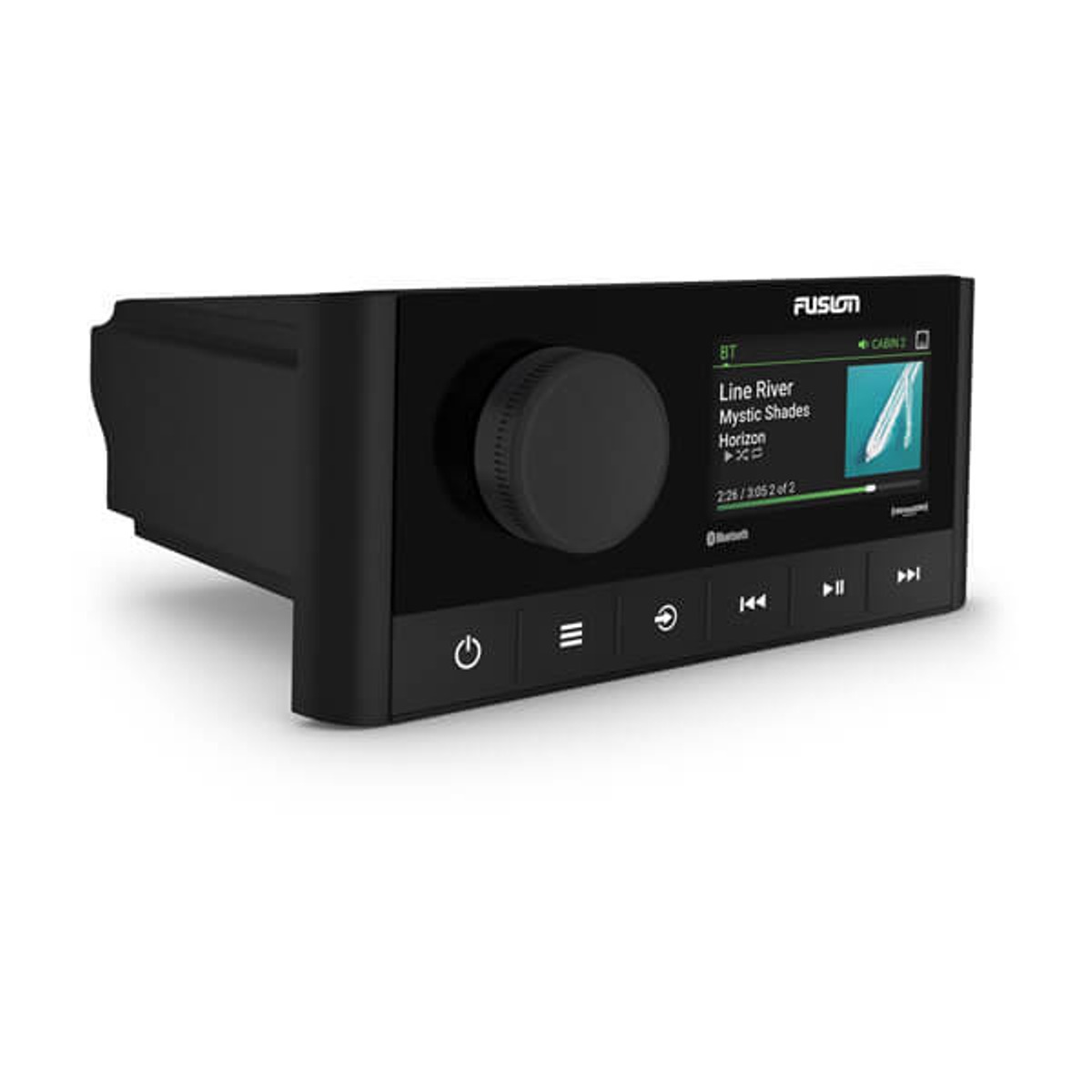

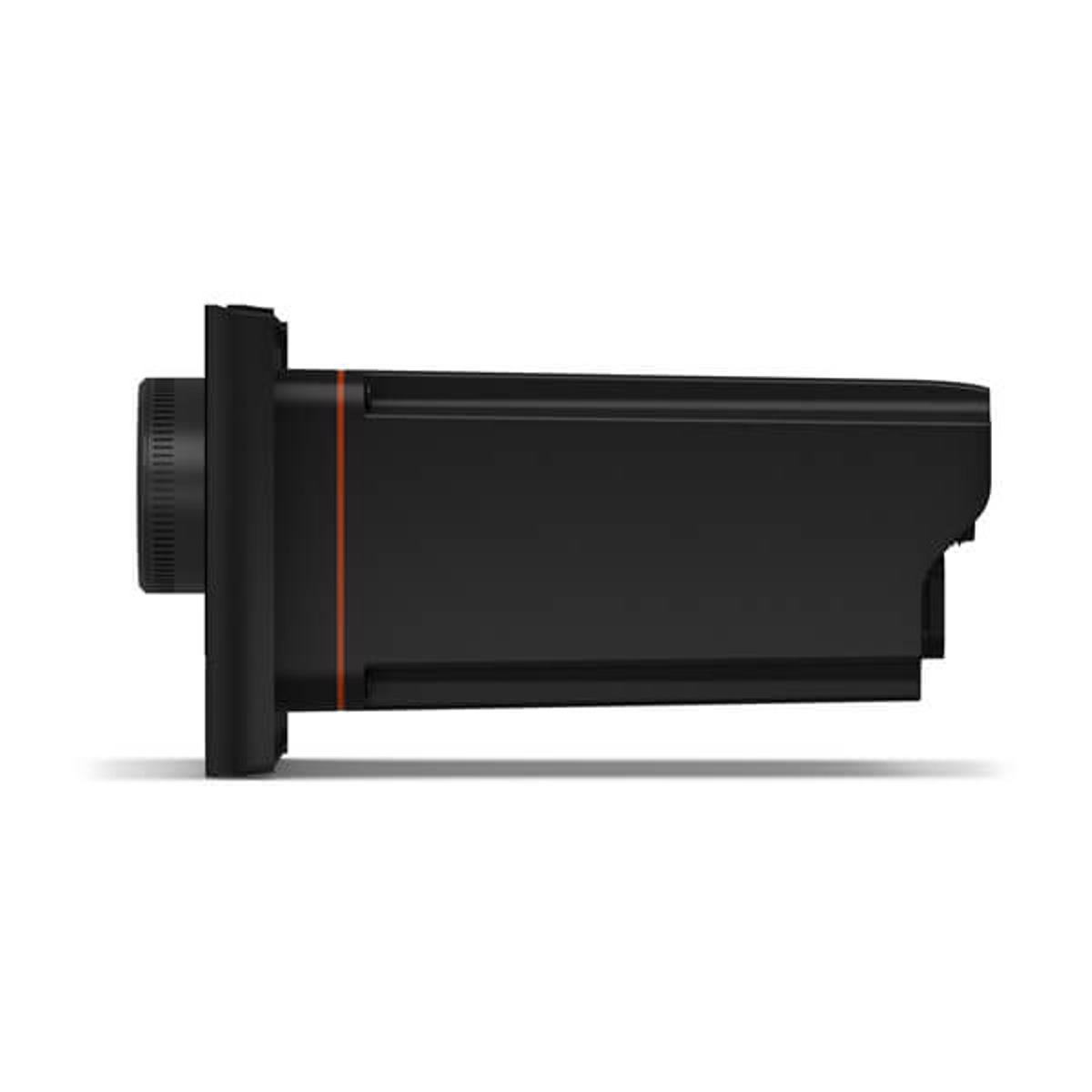

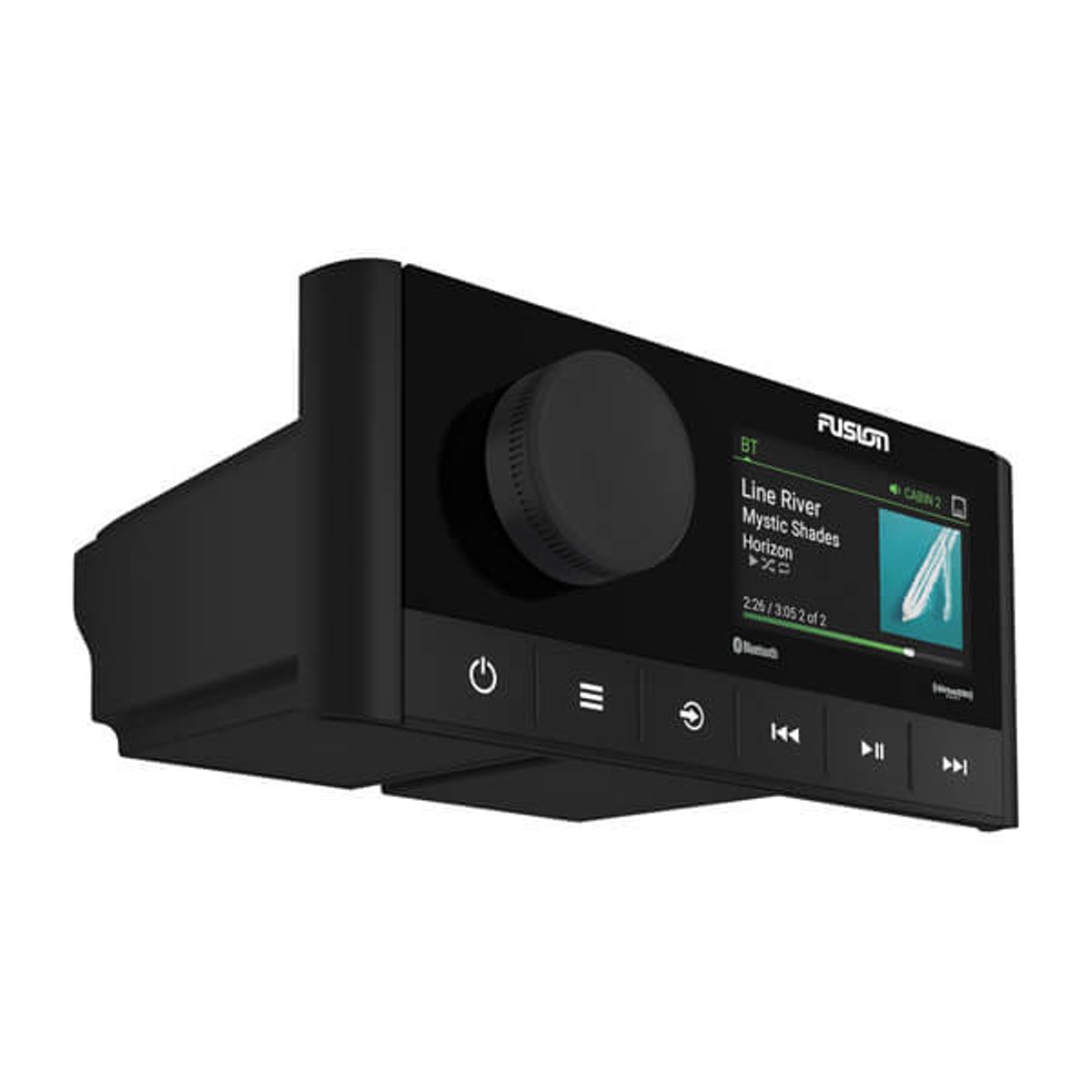

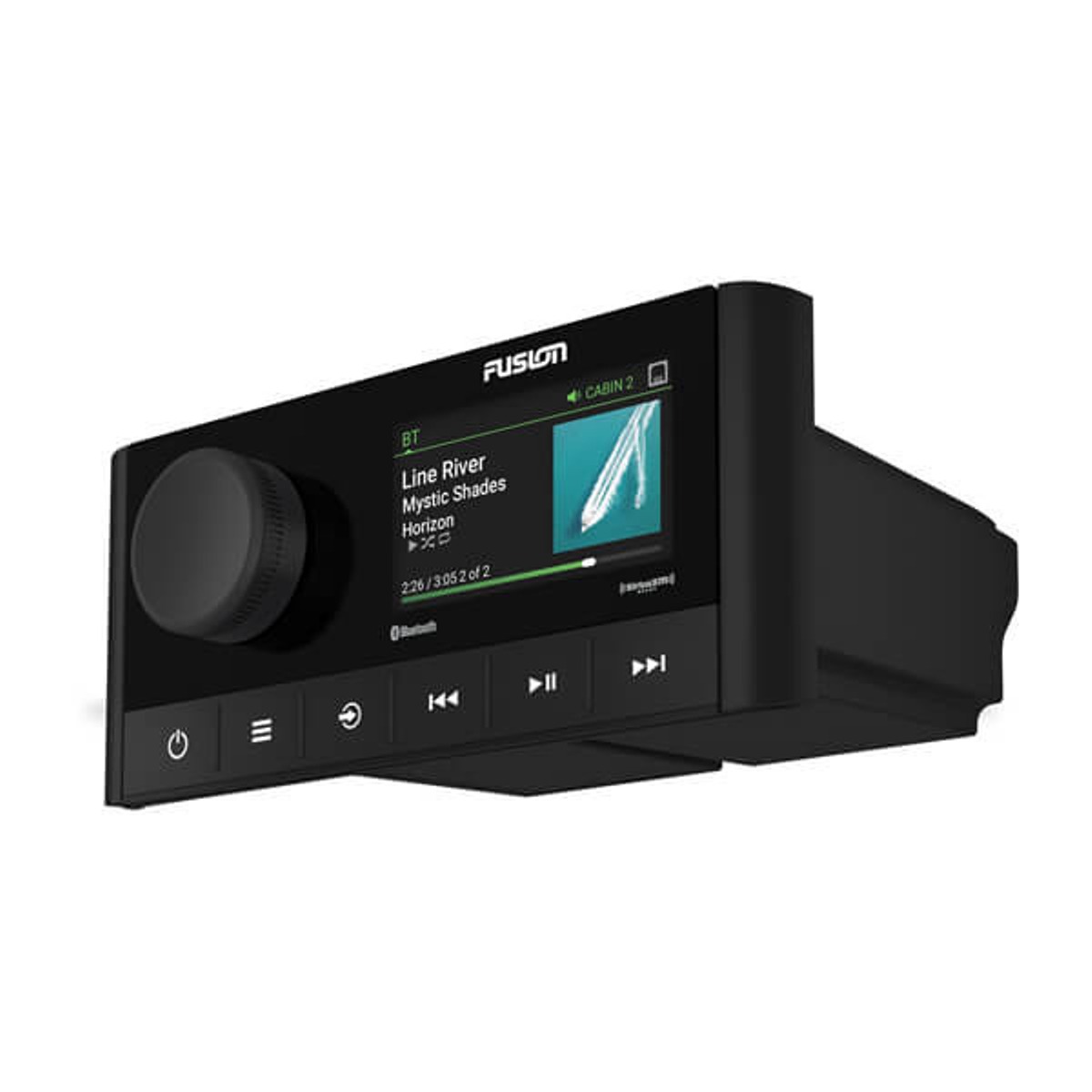

Fusion Ms-Ra210 Marine Entertainment System With Bluetooth & Dsp

Description

Fusion Ms-Ra210 Marine Entertainment System With Bluetooth & Dsp

General
Physical dimensions (H x W x D) 68 x 157 x 126.6 mm
Weight 350 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max.) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range Up to 10 m
ANT wireless range 3 metres
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 150 mm
Stereo features
Display 2.7″ optically bonded colour LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
Fusion-Link™ control Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology
ANT wireless technology
DAB+ ready Yes (requires DAB100A antenna module)
NRX remote compatibility
Multi-language interface Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish,, Portuguese (BR/PT), Slovenian, Spanish, Swedish,, Thai, Turkish
Software updates USB
Warranty 3 year
Sources
Sources AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /
MTP / DAB+ ready (available in
Europe and Australia only)
Connectivity
Auxiliary input One RCA input (AUX)
NMEA 2000 One NMEA 2000 port
USB 2.0 One USB 2.0 port
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out Zone 1, Zone 2 (L + R, requires external amplification)
Subwoofer out Zone 1, Zone 2 (requires external amplification)
