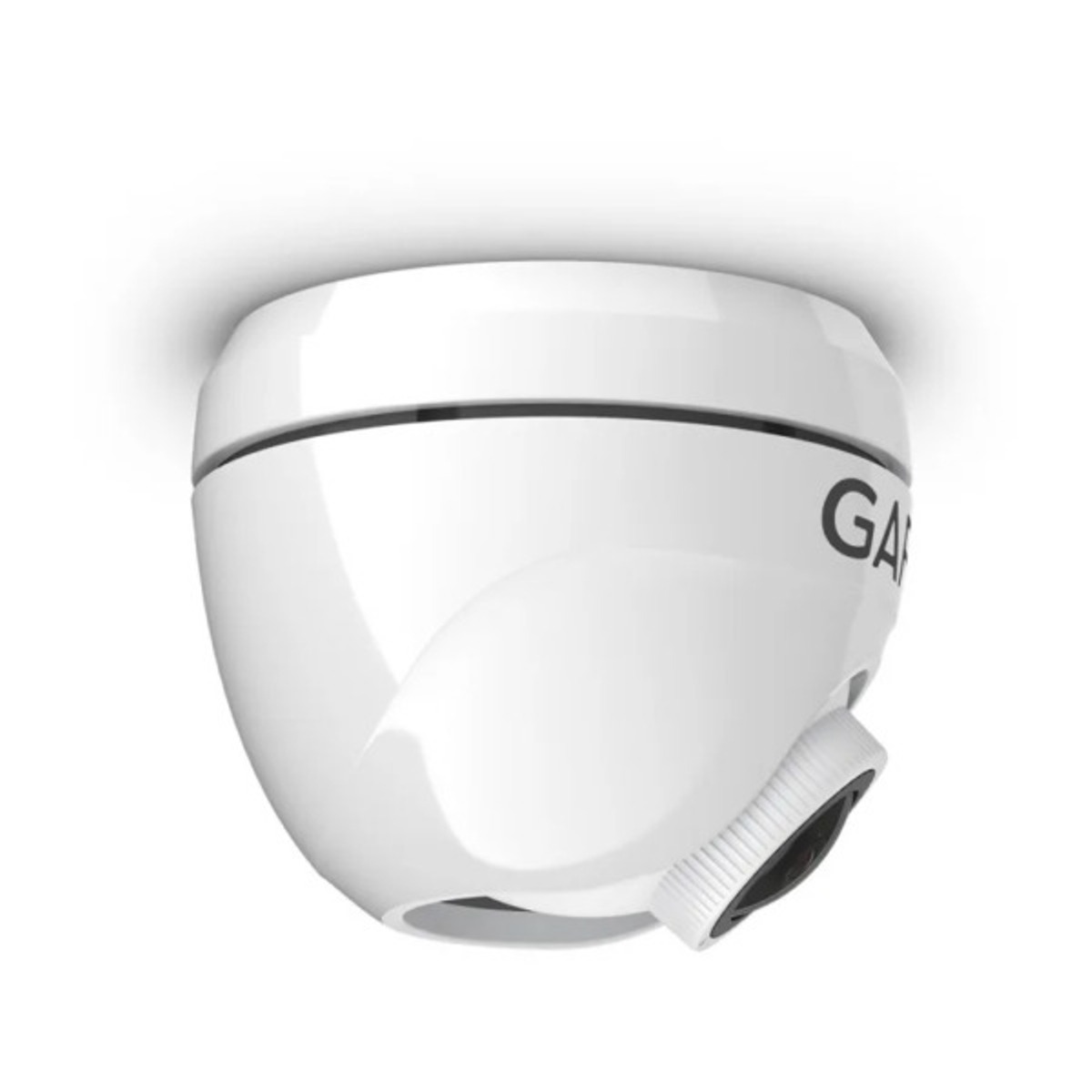

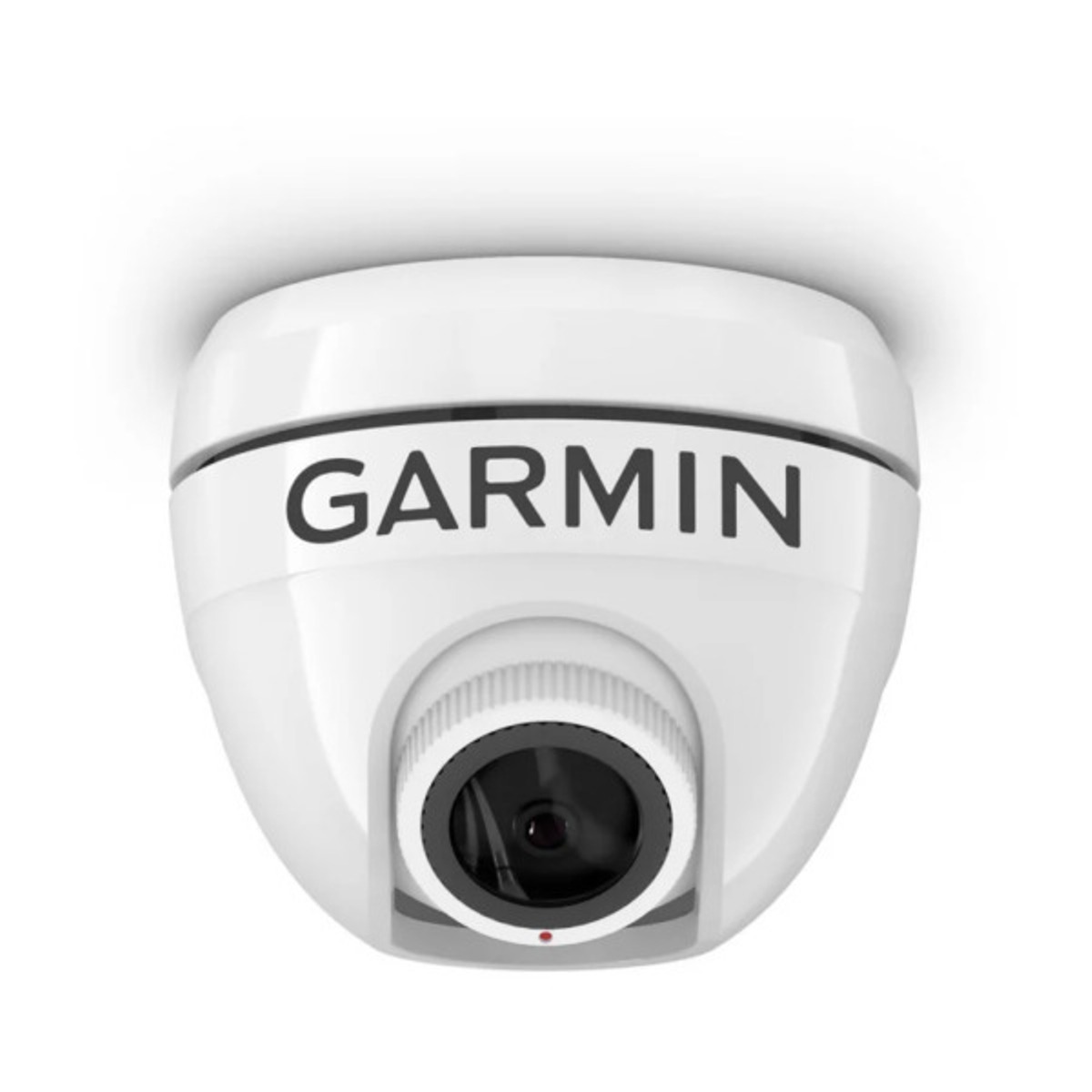

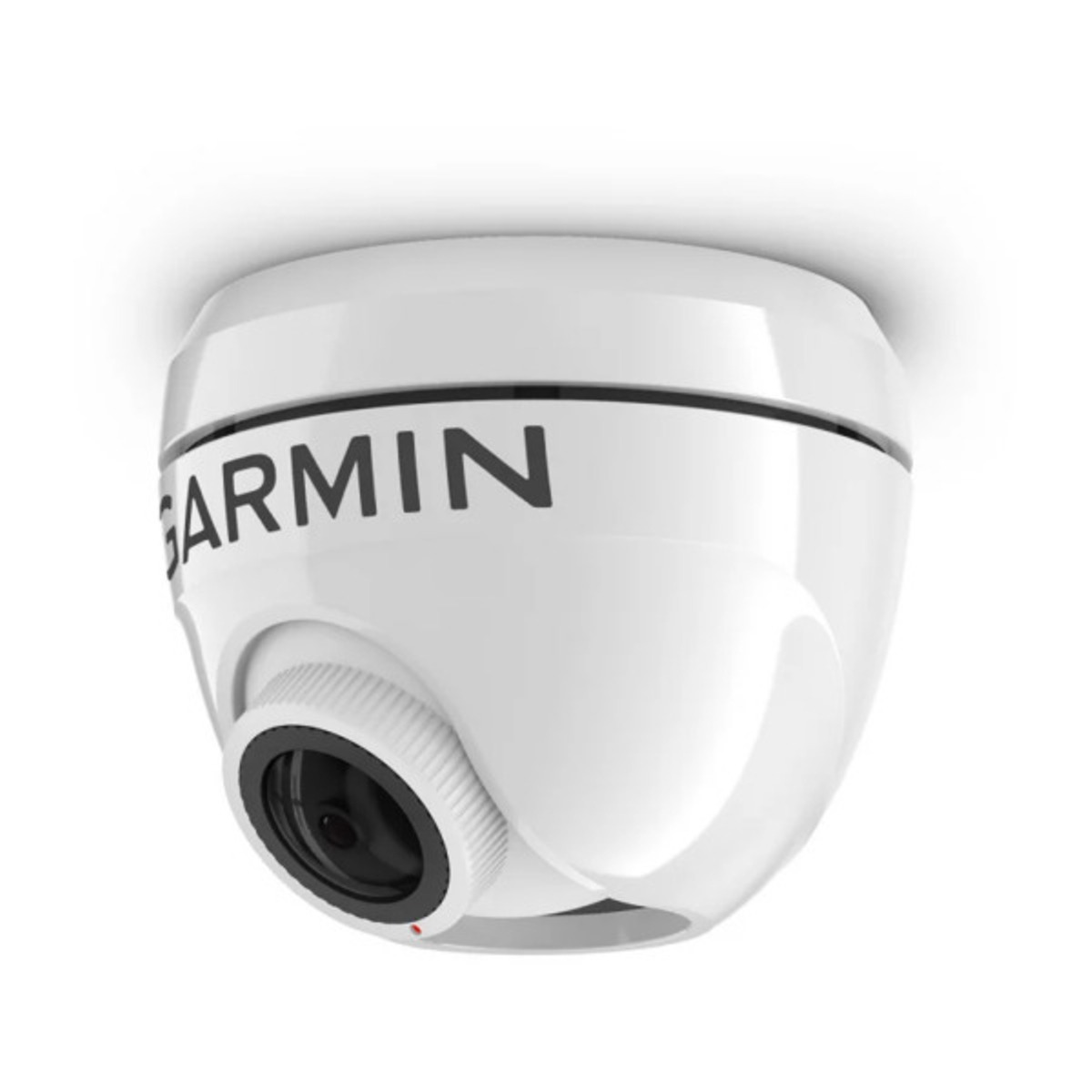

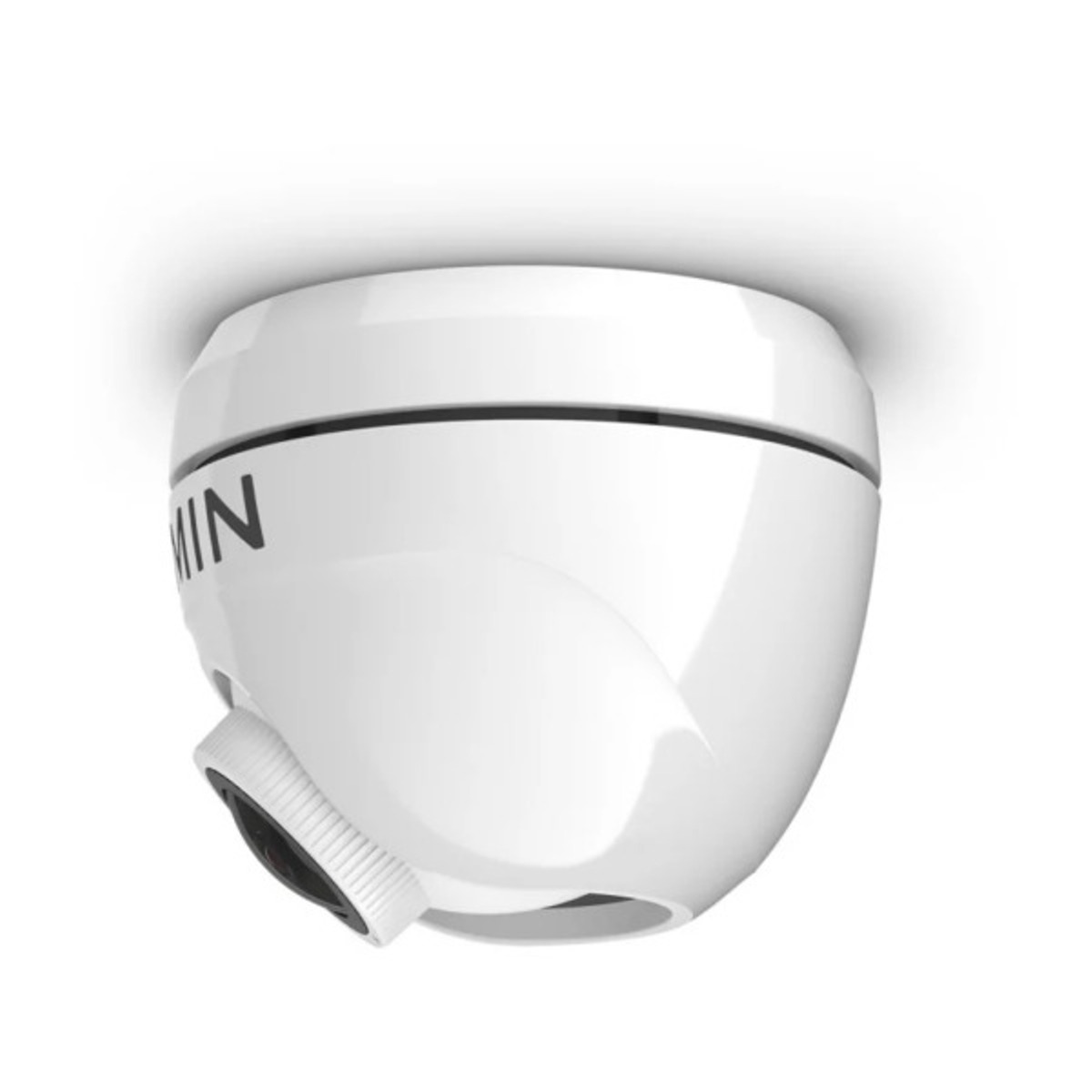

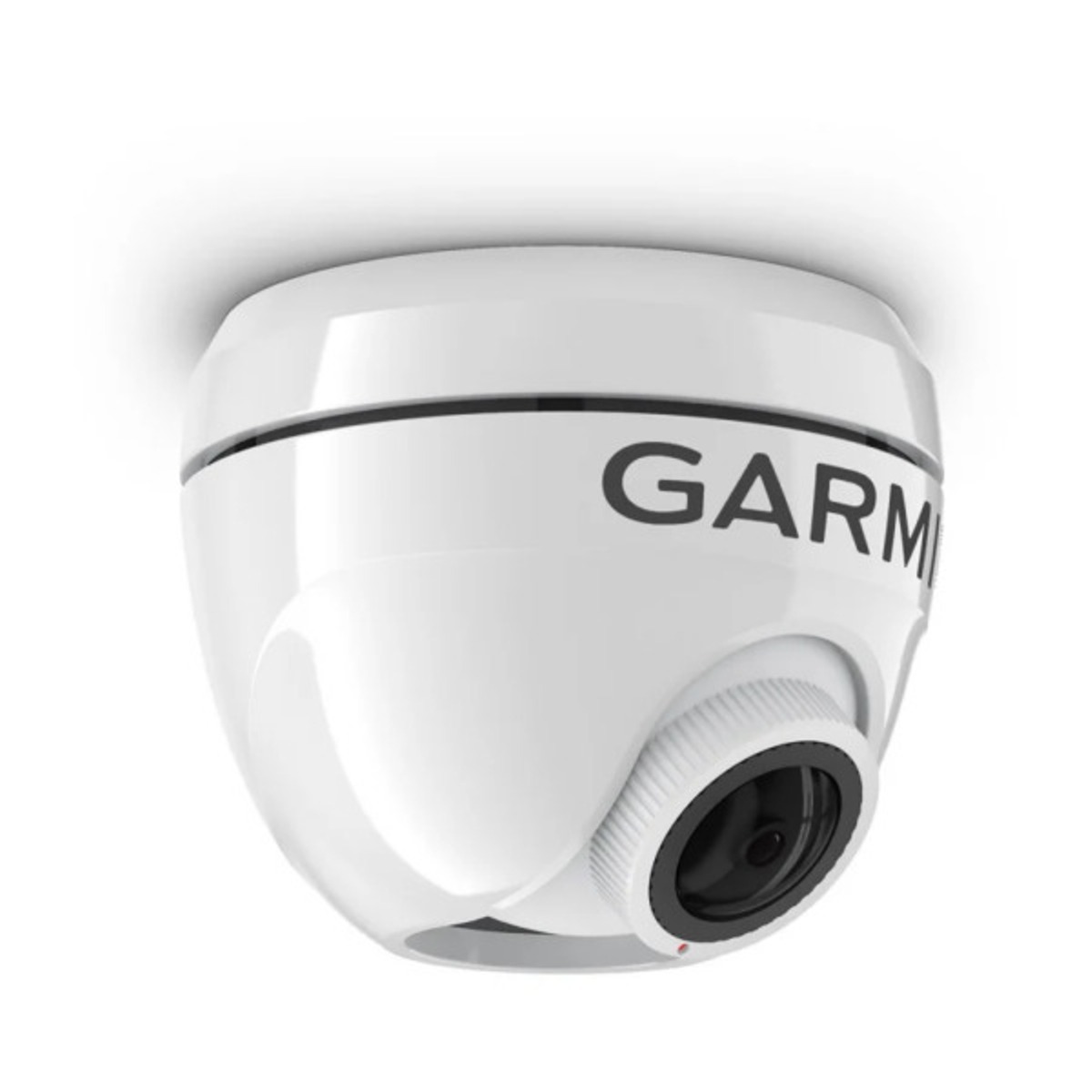

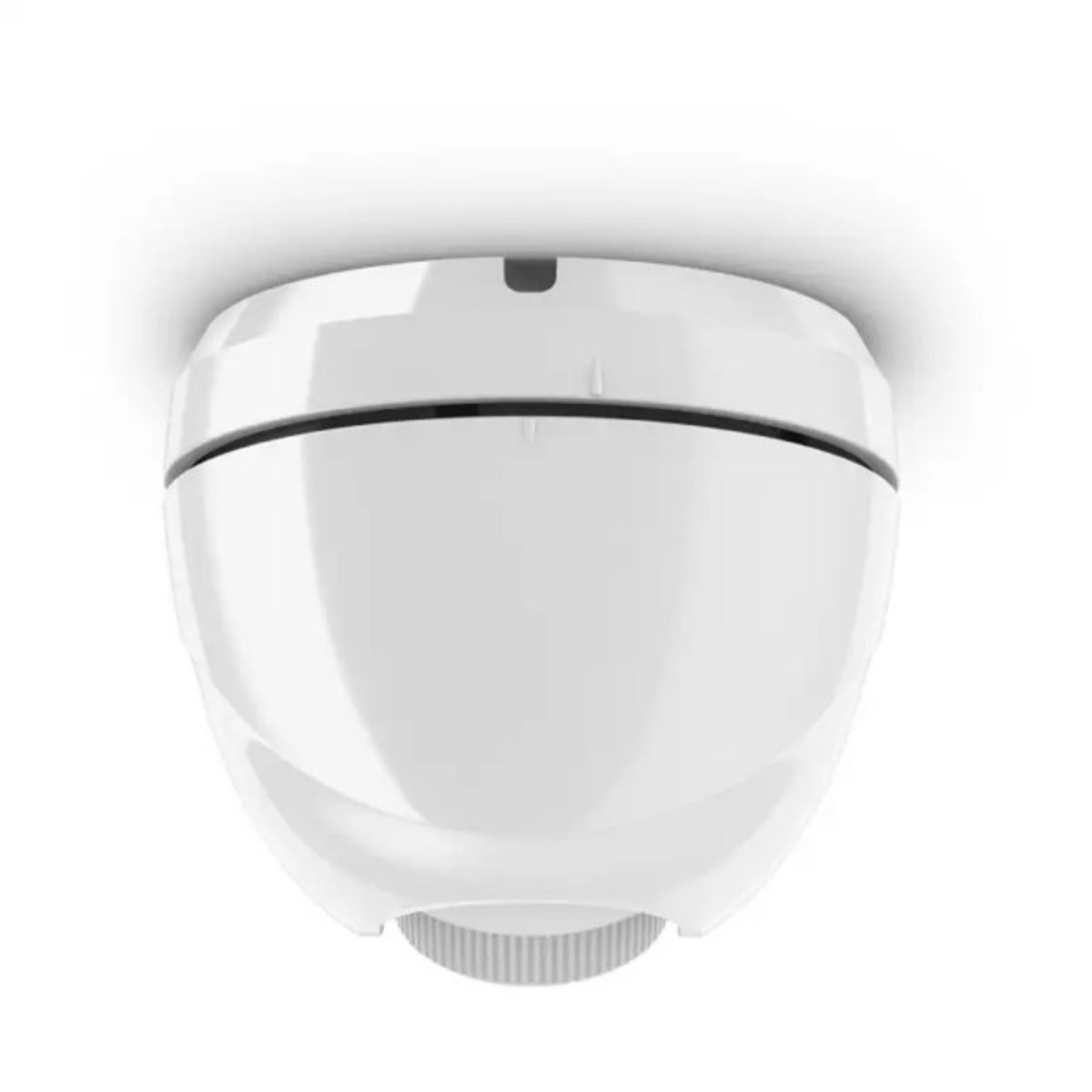

GC™ 245 Surface Mount Camera

Description

GC™ 245 Surface Mount Camera

Unit dimensions: 8.1 x 8.1 x 8.38 cm (3.2″ x 3.2″ x 3.3″), body; 8.1 x 8.1 x 2.4 cm (3.2″ x 3.2″ x 0.95″)
Weight: 650g (22.9 oz)
Hardwire power: 12V/24V
Operating current: 300 mA at 12VDC; 200 mA at 24VDC
Power consumption: 4.5 W
Connection to chartplotter: IP
Versatile mounting options: thru-hull installation
Rugged housing: yes (high impact)
Install below rub rail: yes
Setup: plug-and-play
Water rating: IPX7
Video resolution: 1920 x 1080 pixels*
Video output: H.264 over GMN and BlueNet™
Images: Standard and reverse
Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
Viewing angle (H/V): 160°H/90°V
Operating temperature: -20°C to +60°C
Scanning system: progressive scan
Day/night operation: RGB mode full-time

*1080p resolution available on select chartplotters only

In The Box
