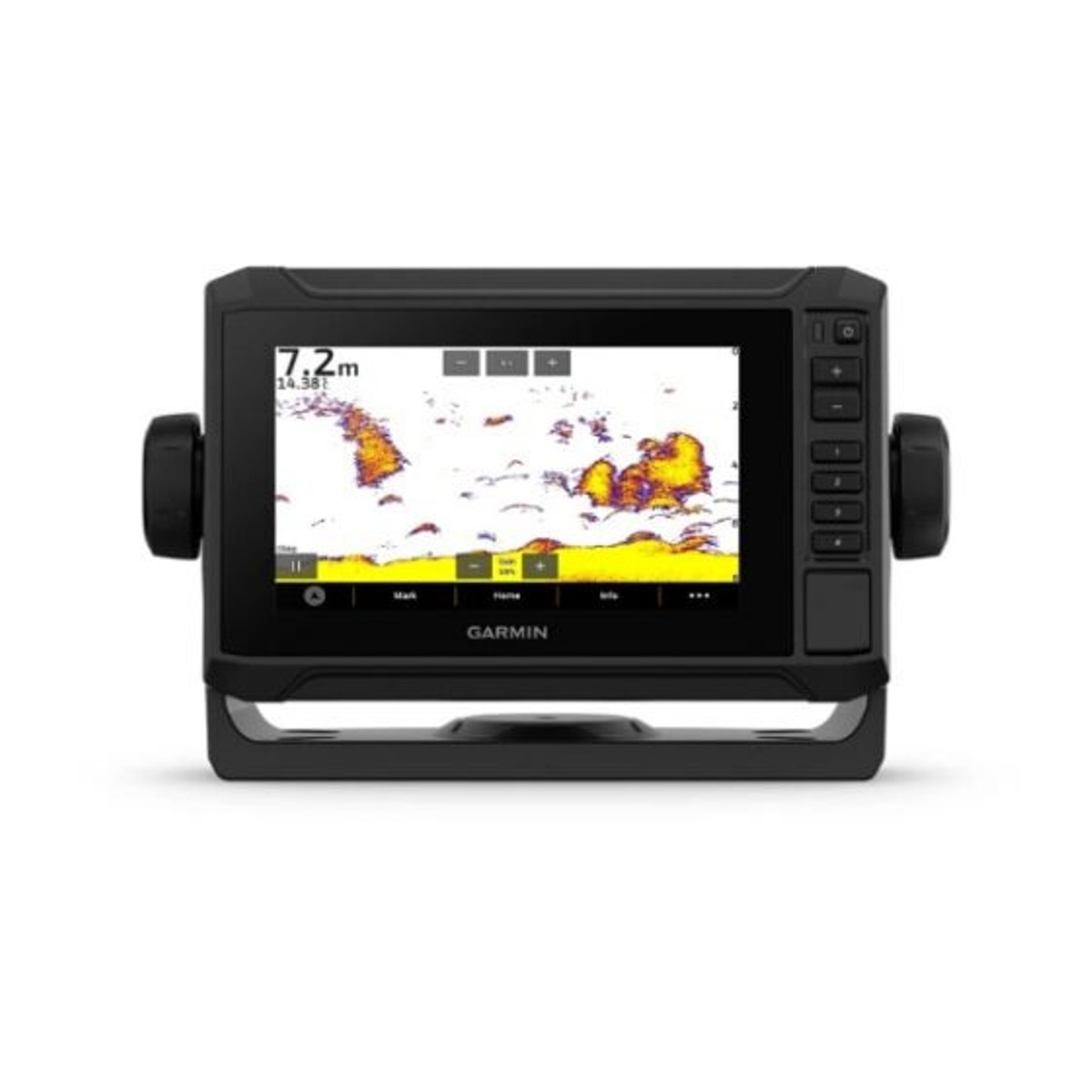

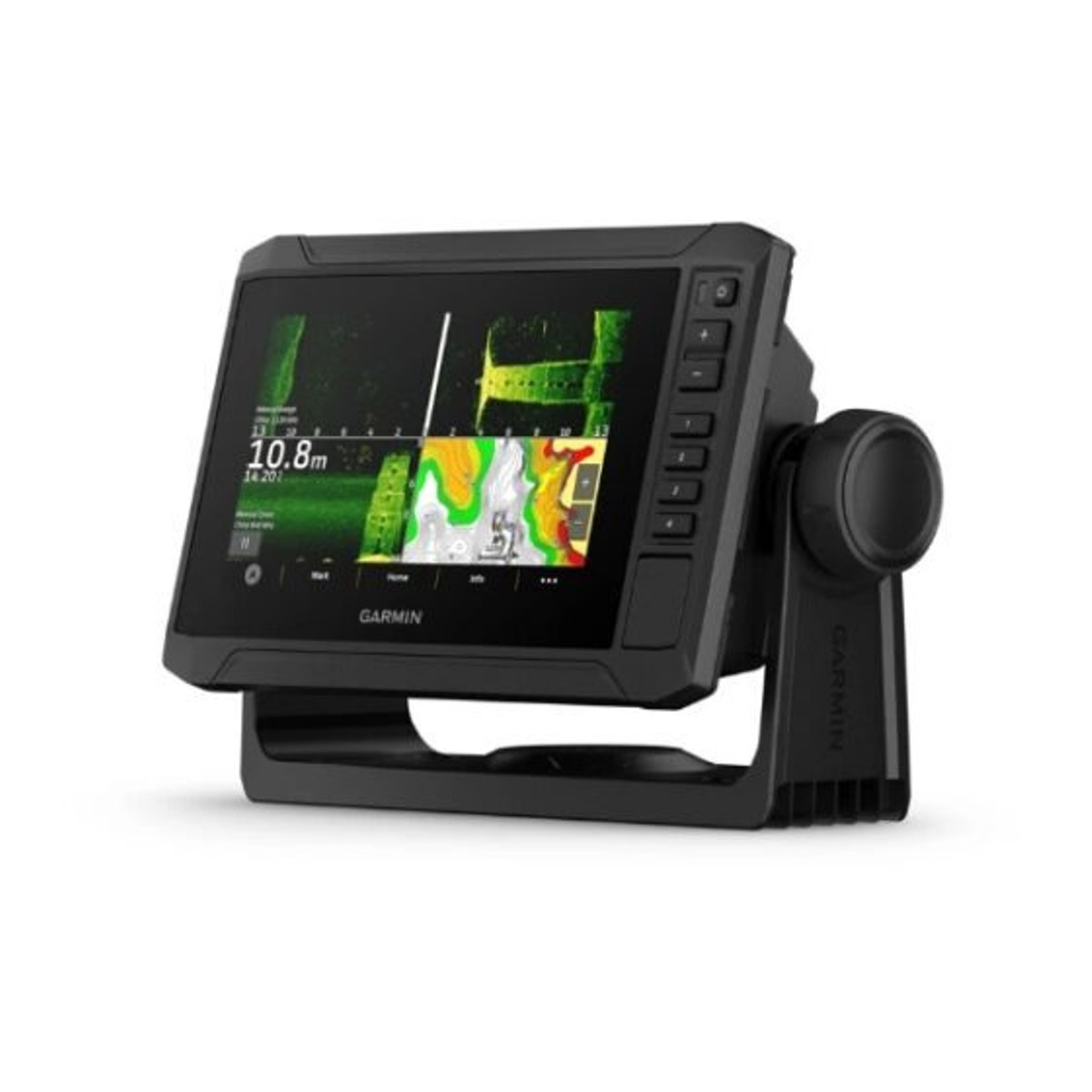

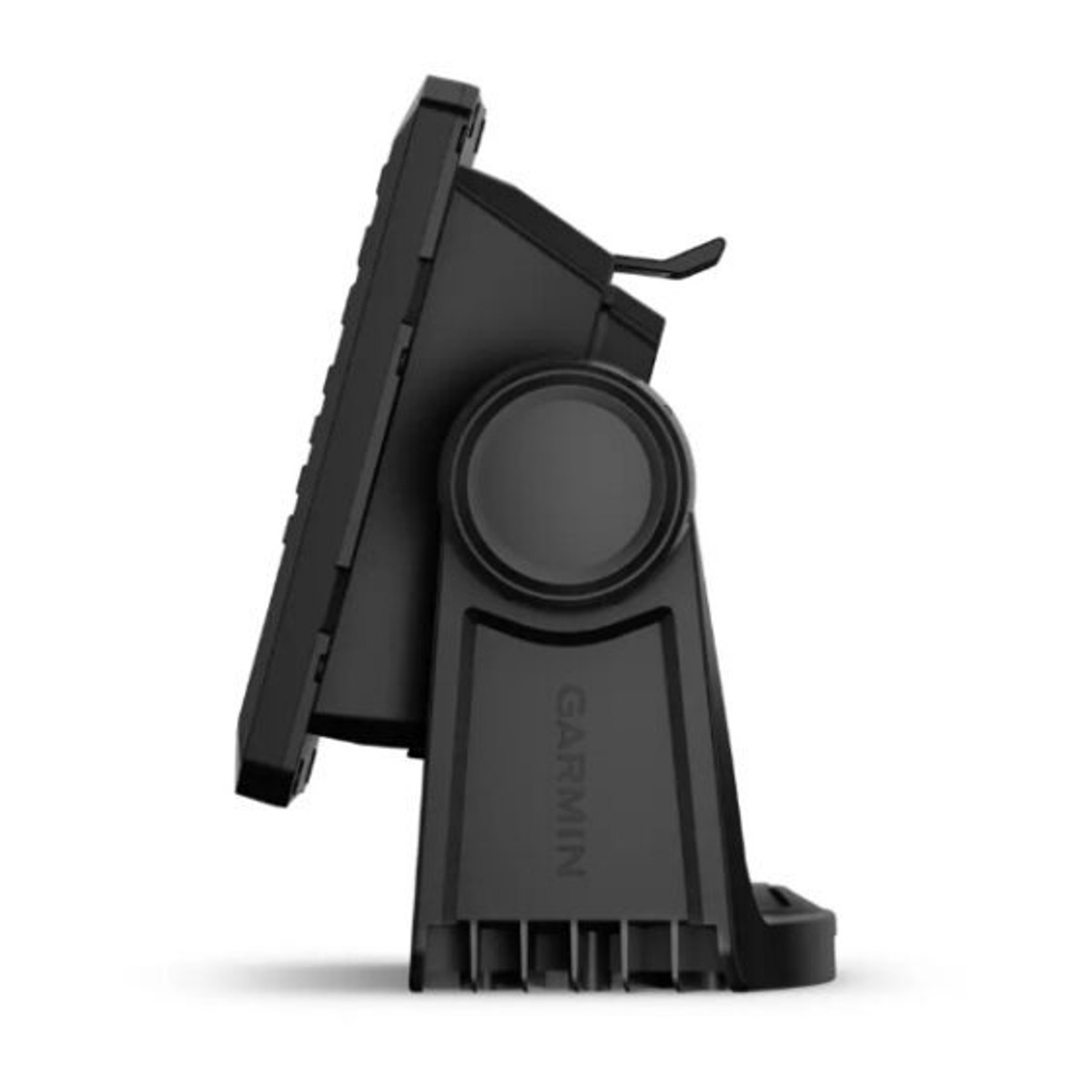

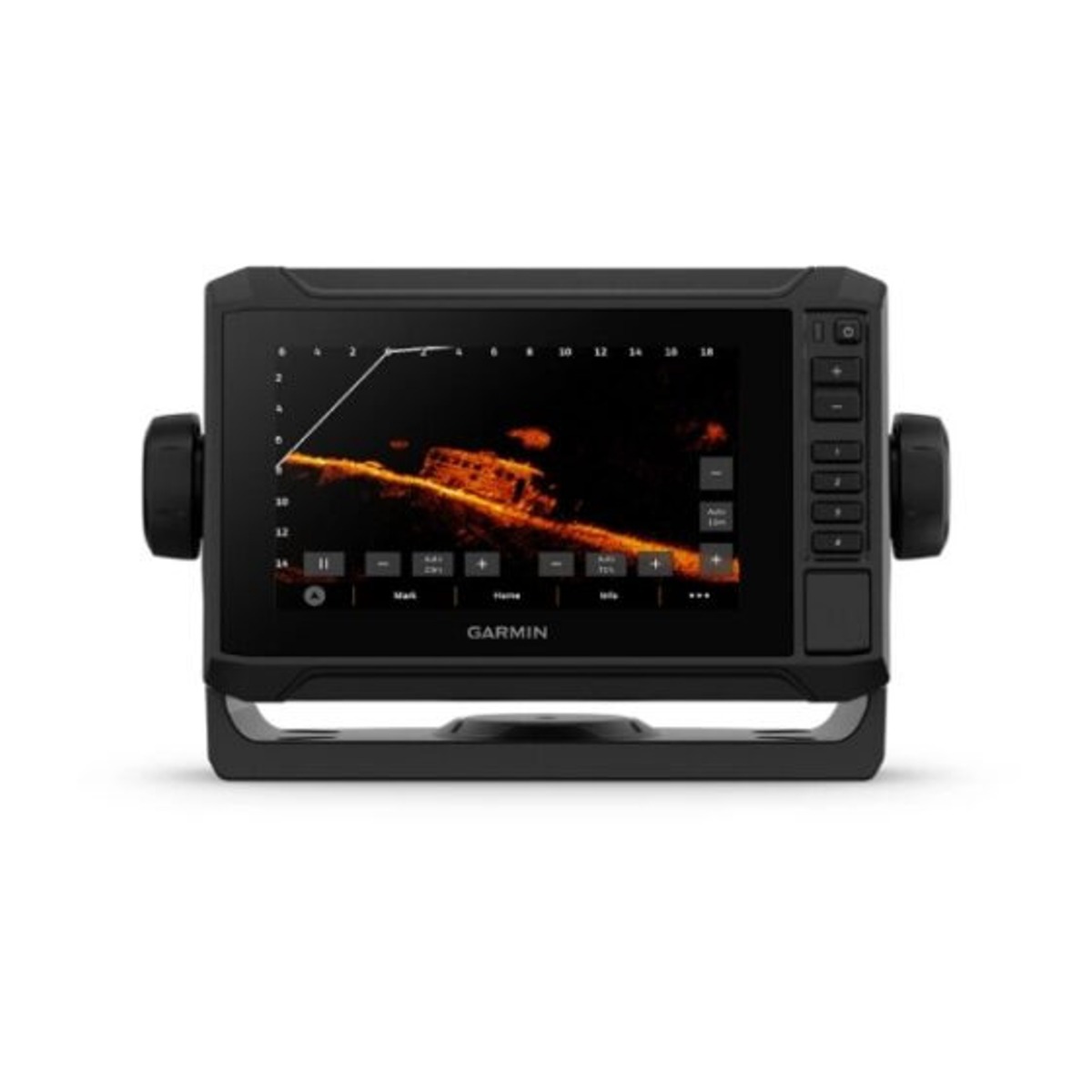

ECHOMAP™ UHD2 6″ Chartplotters

Description

ECHOMAP™ UHD2 6″ Chartplotters

General
TOUCHSCREEN
INPUT Touchscreen with Keyed Assist
Maps & Memory
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Sensors
HAS BUILT-IN RECEIVER
RECEIVER 10 Hz
NMEA 2000 COMPATIBLE
GPS
GLONASS
GALILEO
BEIDOU
SUPPORTS WAAS
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Built-in Maps
BUILT-IN AUTO GUIDANCE+ yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTAL yes (see Additional)
GARMIN NAVIONICS+ (COASTAL) yes (see Additional)
GARMIN NAVIONICS+ (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)
Optional Map Support
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS
Chartplotter Features
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
ACTIVECAPTAIN® COMPATIBLE
SAILING FEATURES
Sonar Features & Specifications
DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
SIDEVÜ built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
LIVESCOPE

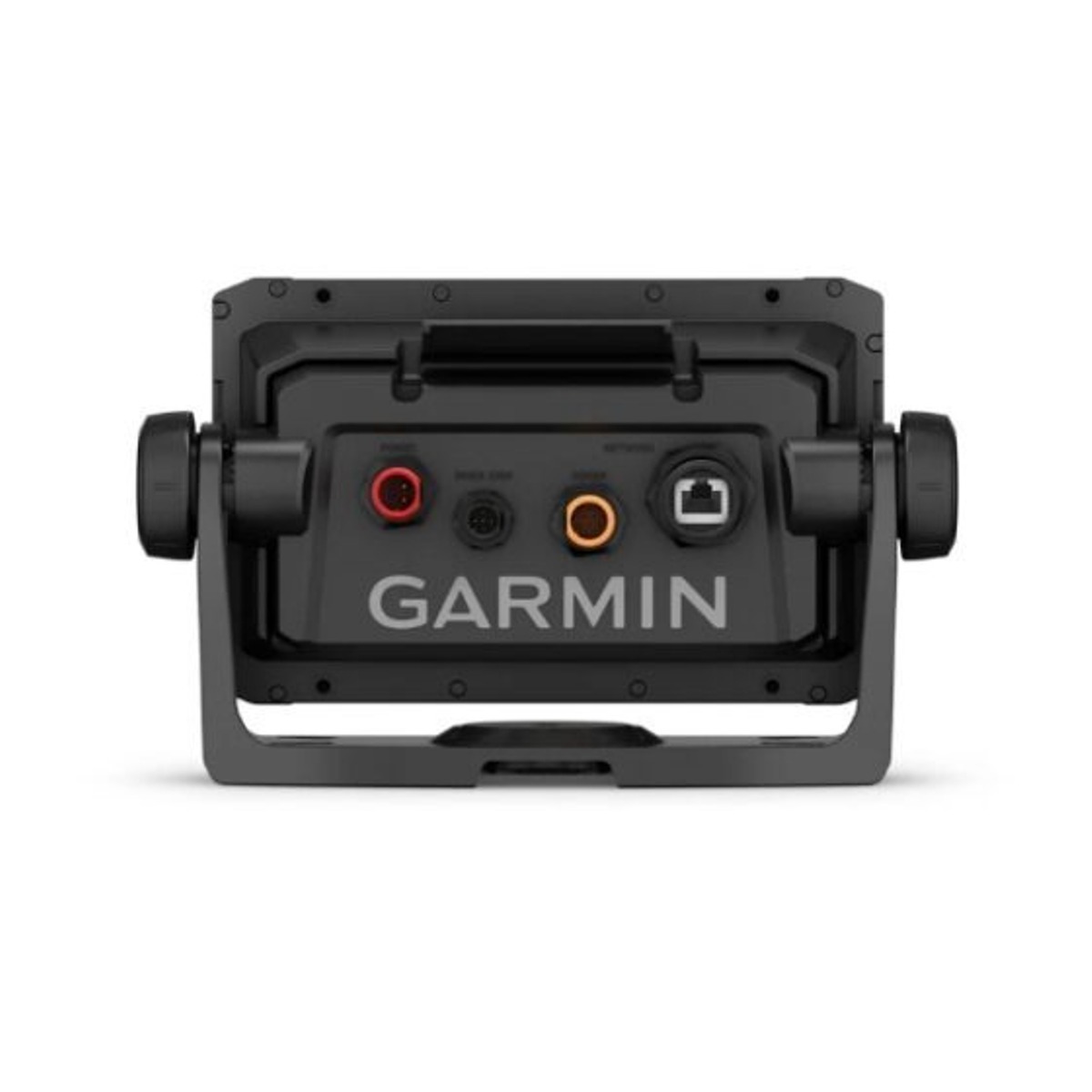

Connections
NMEA 2000 PORTS
GARMIN MARINE NETWORK PORTS 1
12-PIN TRANSDUCER PORTS 1
BLUETOOTH® PAIRING
ANT+ (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.53 A
MAXIMUM CURRENT DRAW AT 12 VDC 3.2 A
MAXIMUM POWER USAGE AT 10 VDC 18.4W
Additional
ADDITIONAL

Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand
Garmin Navionics+ (coastal): 64sv U.S. coastal, 65sv UK/Ireland
Garmin Navionics+ (inland): 63sv U.S. lakes
Tide tables: 63sv, 64sv, 65sv
