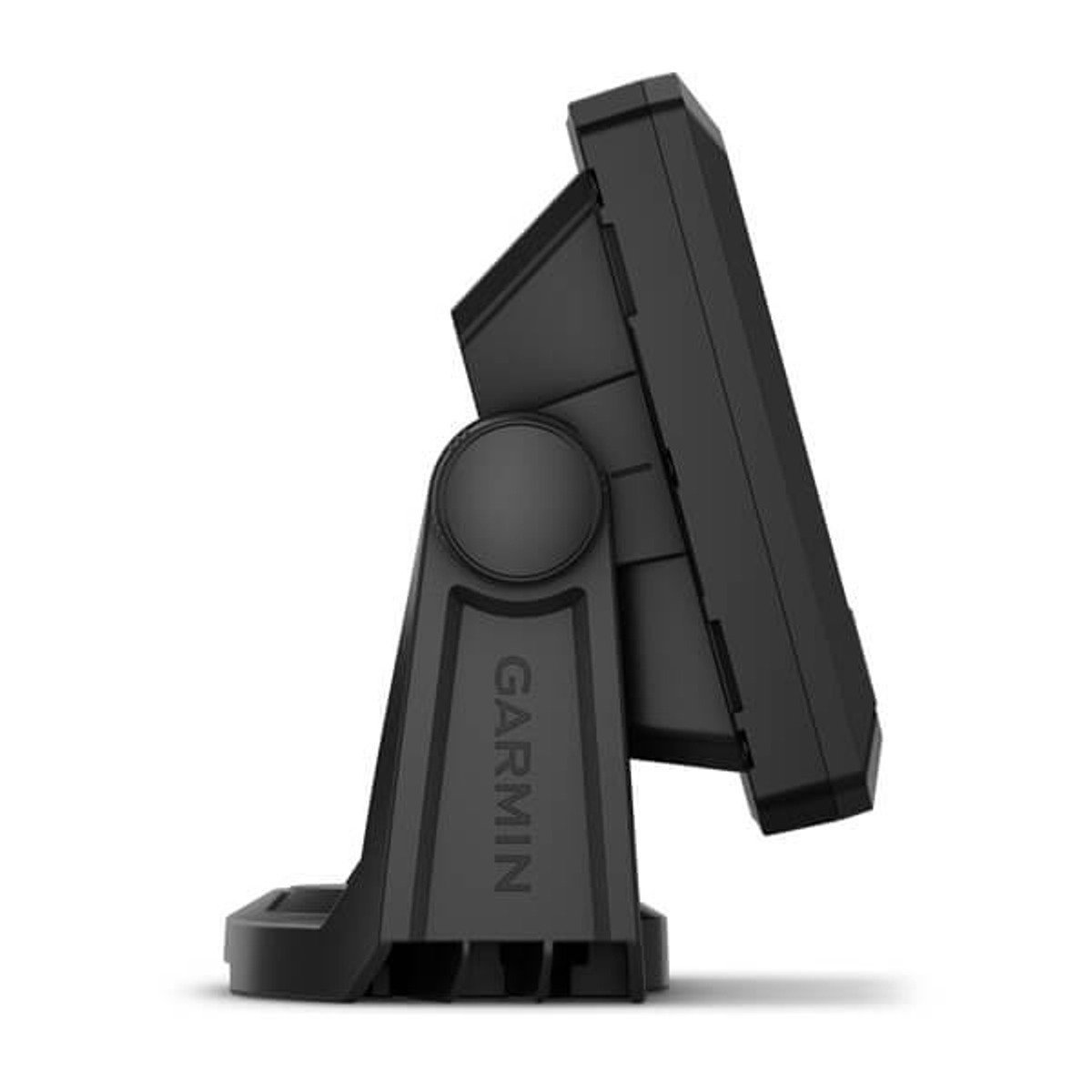

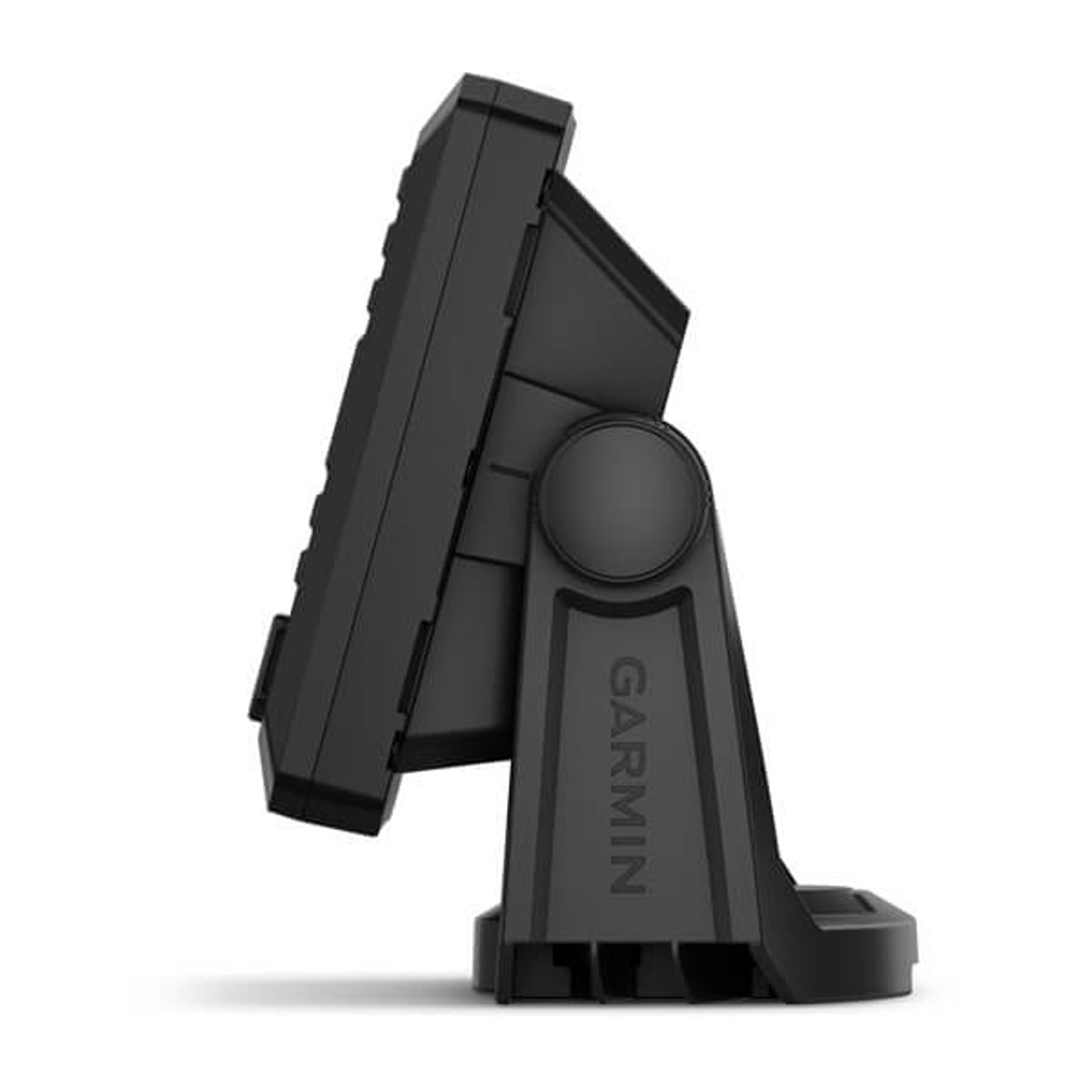

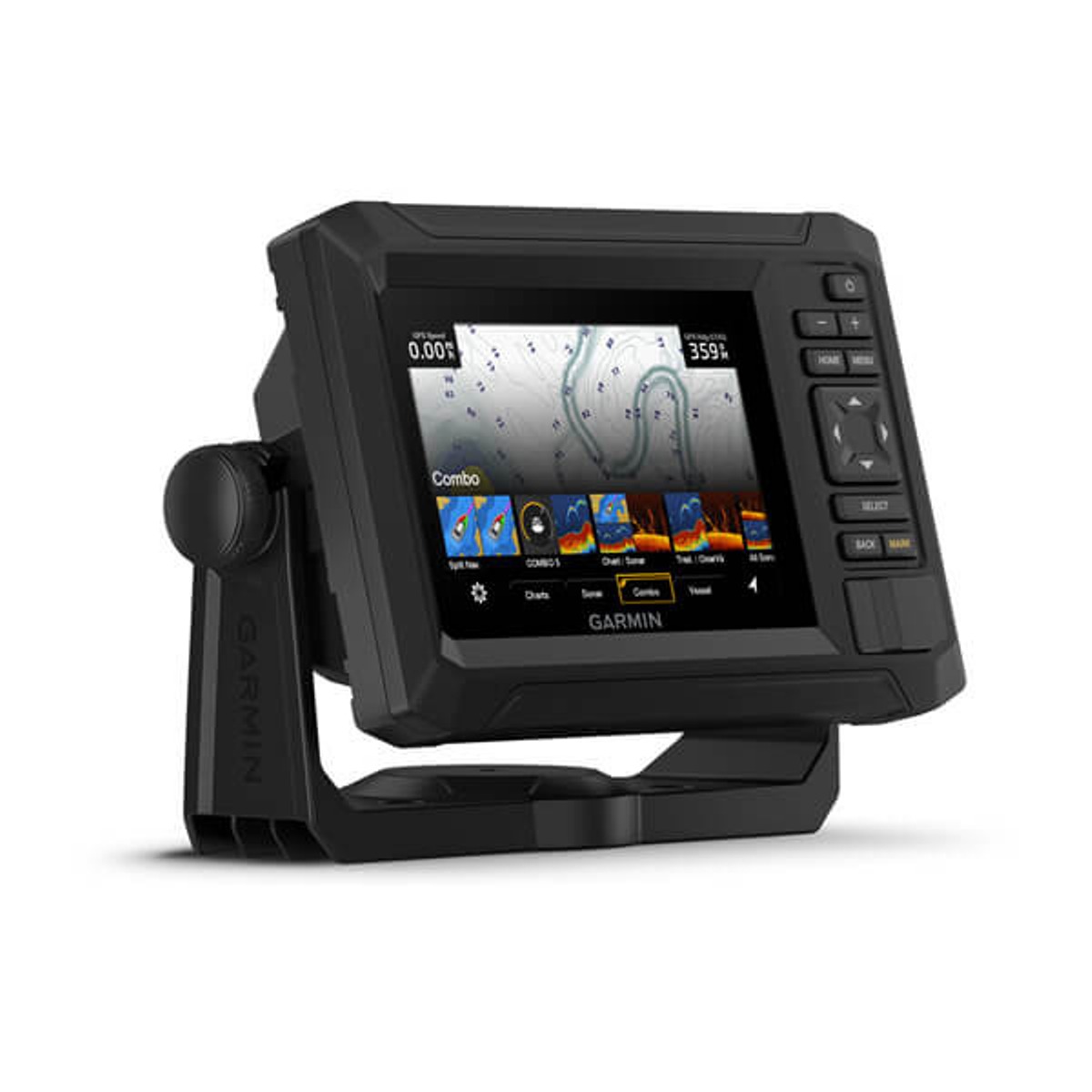

ECHOMAP™ UHD2 5″ Chartplotters 52cv with GT20-TM Transducer

Description

ECHOMAP™ UHD2 5″ Chartplotters 52cv with GT20-TM Transducer

General
Dimension 7.4″ x 4.8″ x 2.4″ (18.8 x 12.2 x 6.2 cm)
Input
Display Size 4.3″ x 2.6″ (10.9 x 6.6 cm)
Display Resolution 800 x 480 pixels
Display Type WVGA, IPS
Weight 1.1 lbs (0.5 kg)
Waterproof IPX7
Mounting Options Bail or flush
Maps & memory
Accepts data cards 1 microSD™ card; 32 GB maximum size
Waypoints 5,000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
Has built-in receiver
Receiver 5 Hz
GPS
Supports WAAS
Built-in Maps
BlueChart (coastal) yes (see Additional)
LakeVu (inland) yes (see Additional)
(Sounder) Tide tables yes (see Additional)
Optional Map Support
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
(Sounder) TOPO
Standard Mapping
Garmin Quickdraw Contours
Chartplotter Features
ActiveCaptain compatible
Sonar Features & Specifications

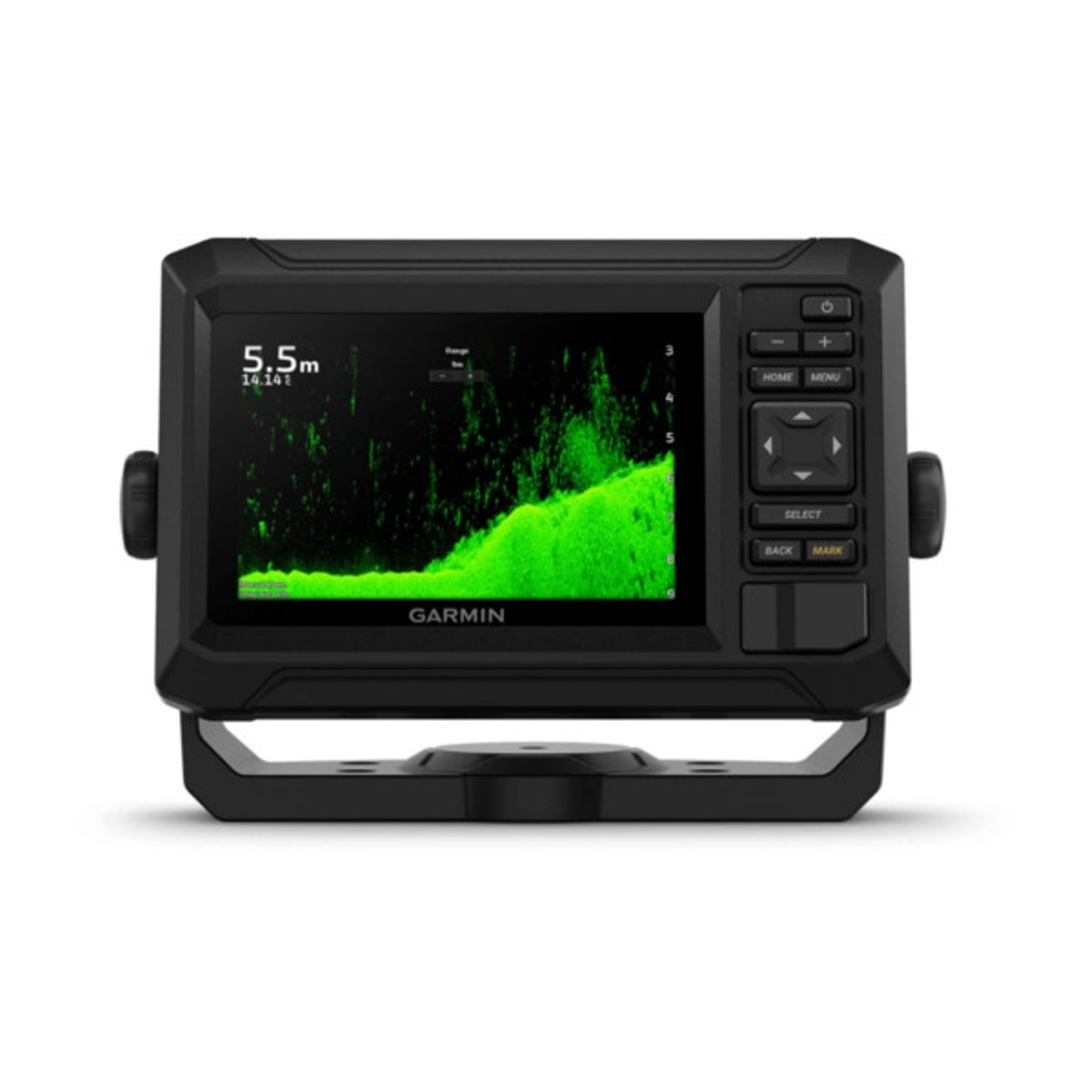

Displays sonar
Power output 500 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü built-in 260/455/800/1000/1200 kHz

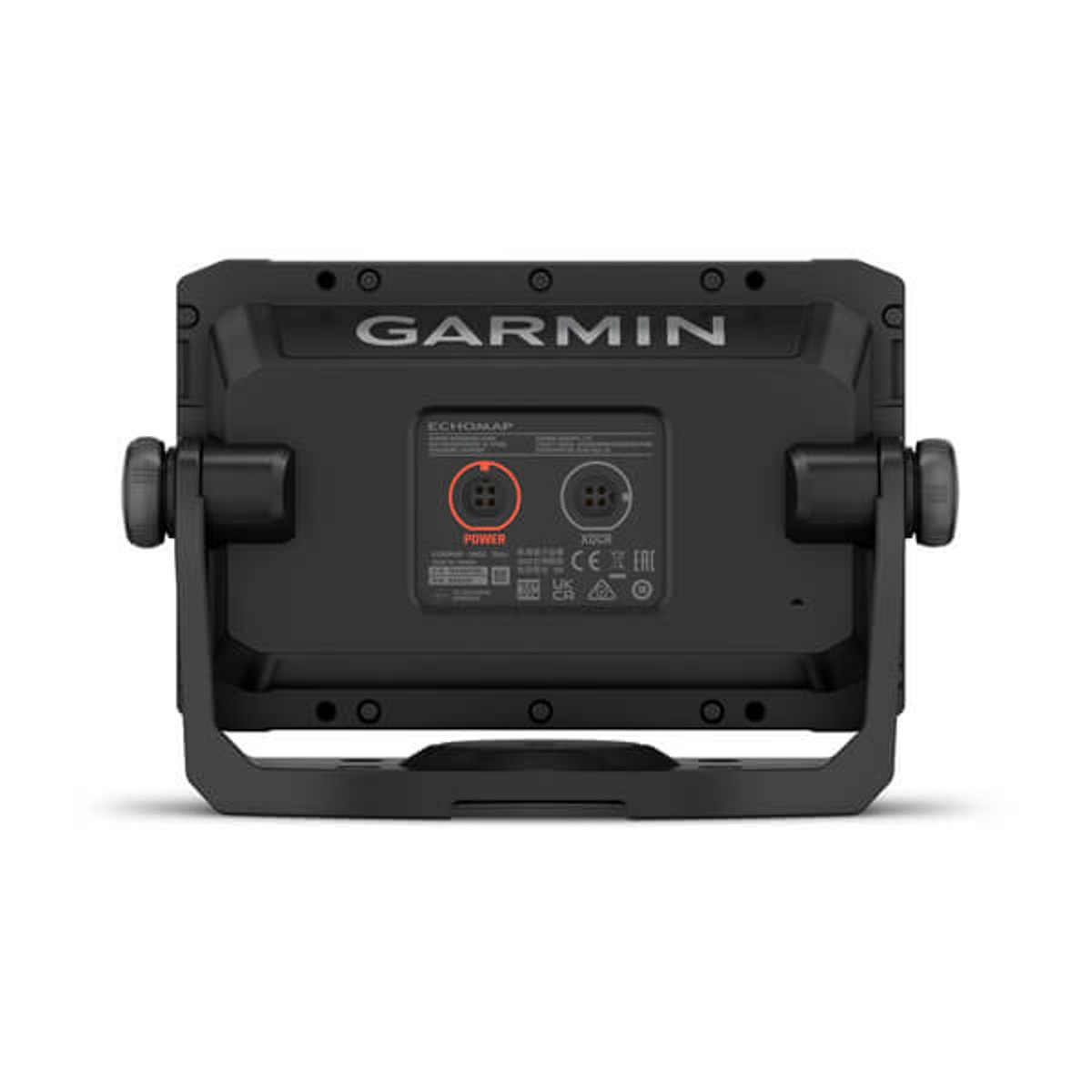

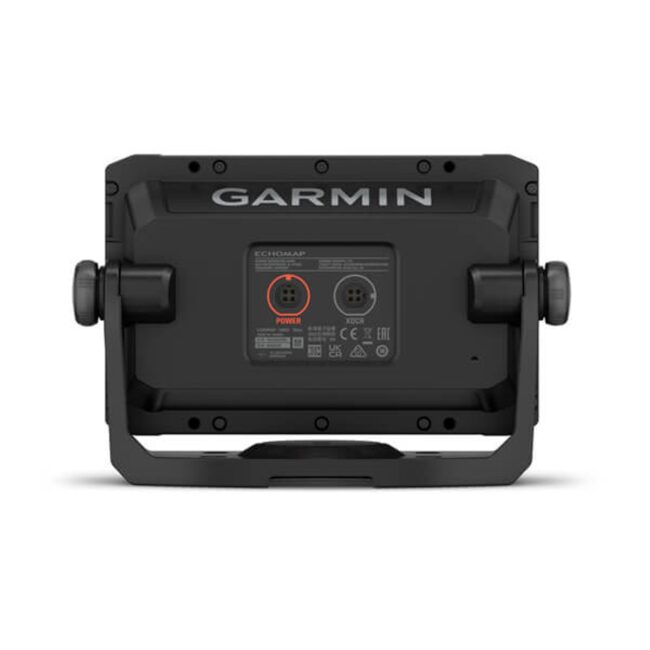

Connections
4-pin transducer ports 1
Garmin Wi-Fi network (local connection)
Electrical Features
Power Input 9 to 18 Vdc
Typical current draw at 12 Vdc 1.0 A
Maximum current draw at 12 Vdc 1.5 A
Maximum power usage at 10 Vdc 18W
Additional
Additional BlueChart (coastal): 54cv U.S. BlueChart g3, 55cv U.K./Ireland BlueChart g3, 55cv Australia/New Zealand BlueChart g3, 74cv U.S. BlueChart g3, 75cv UK/Ireland BlueChart g3, 75cv Australia/New Zealand BlueChart g3
LakeVü: 55cv U.S. LakeVü g3, 55cv Canada LakeVü g3, 73cv U.S. LakeVü g3, 73cv Canada LakeVü g3
Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
