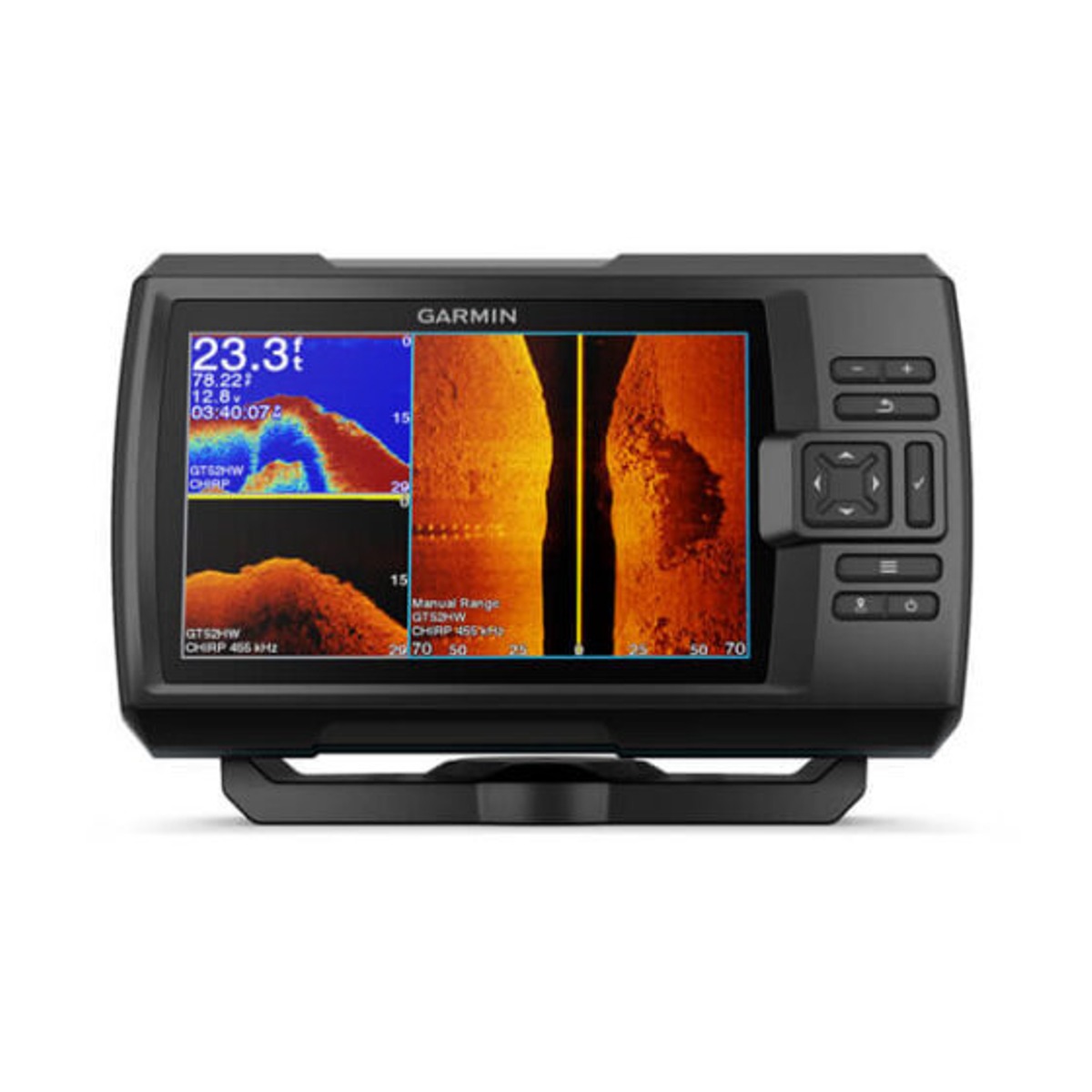

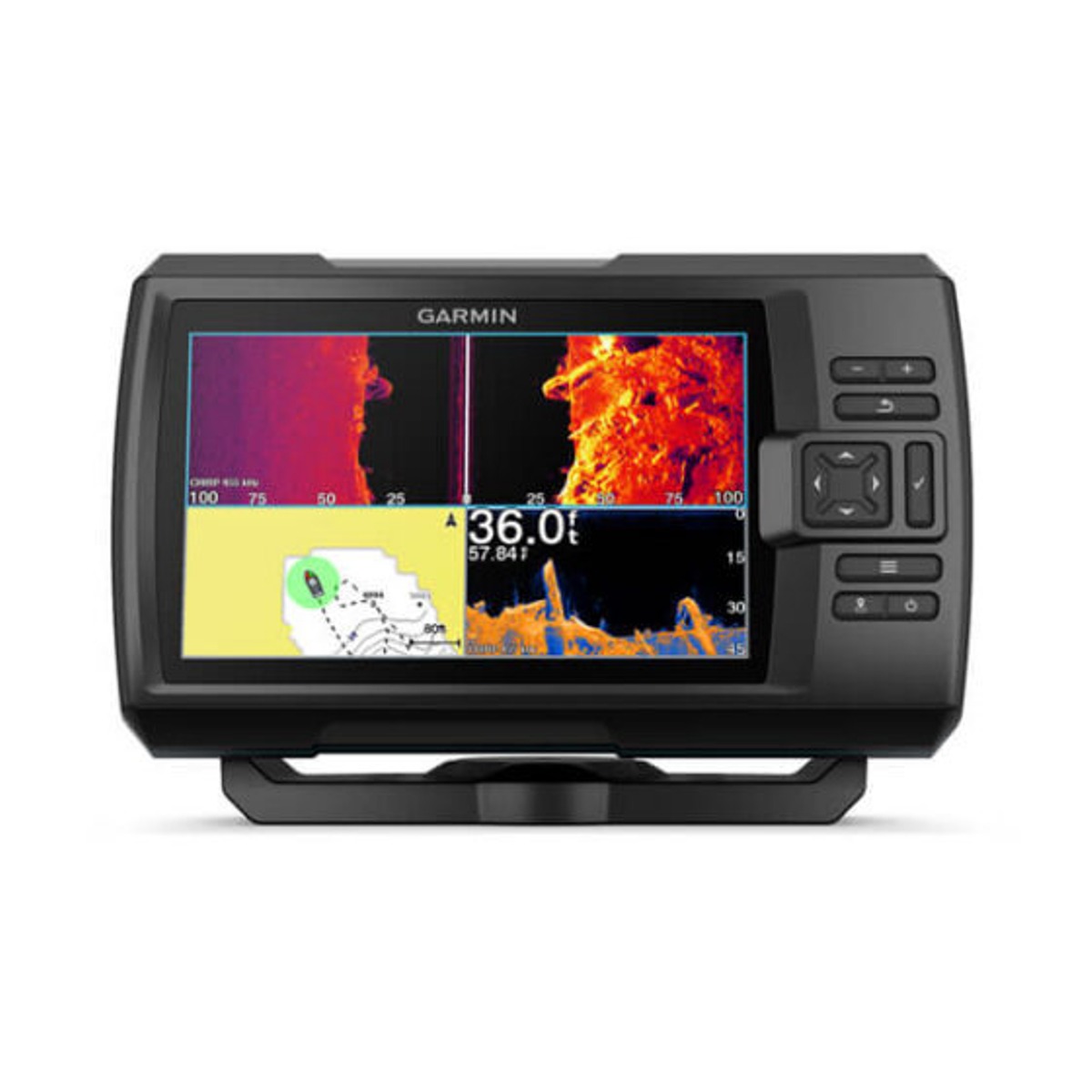

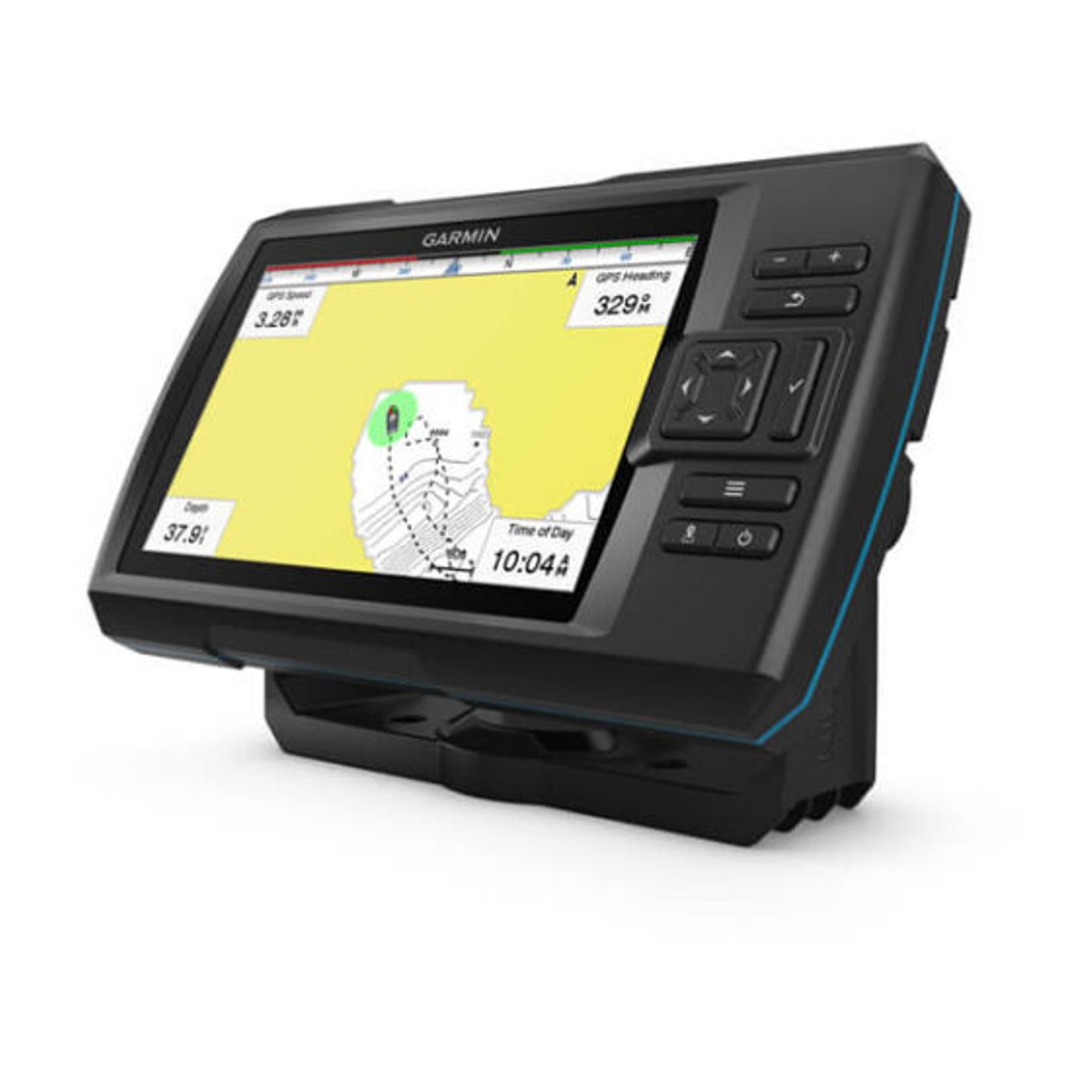

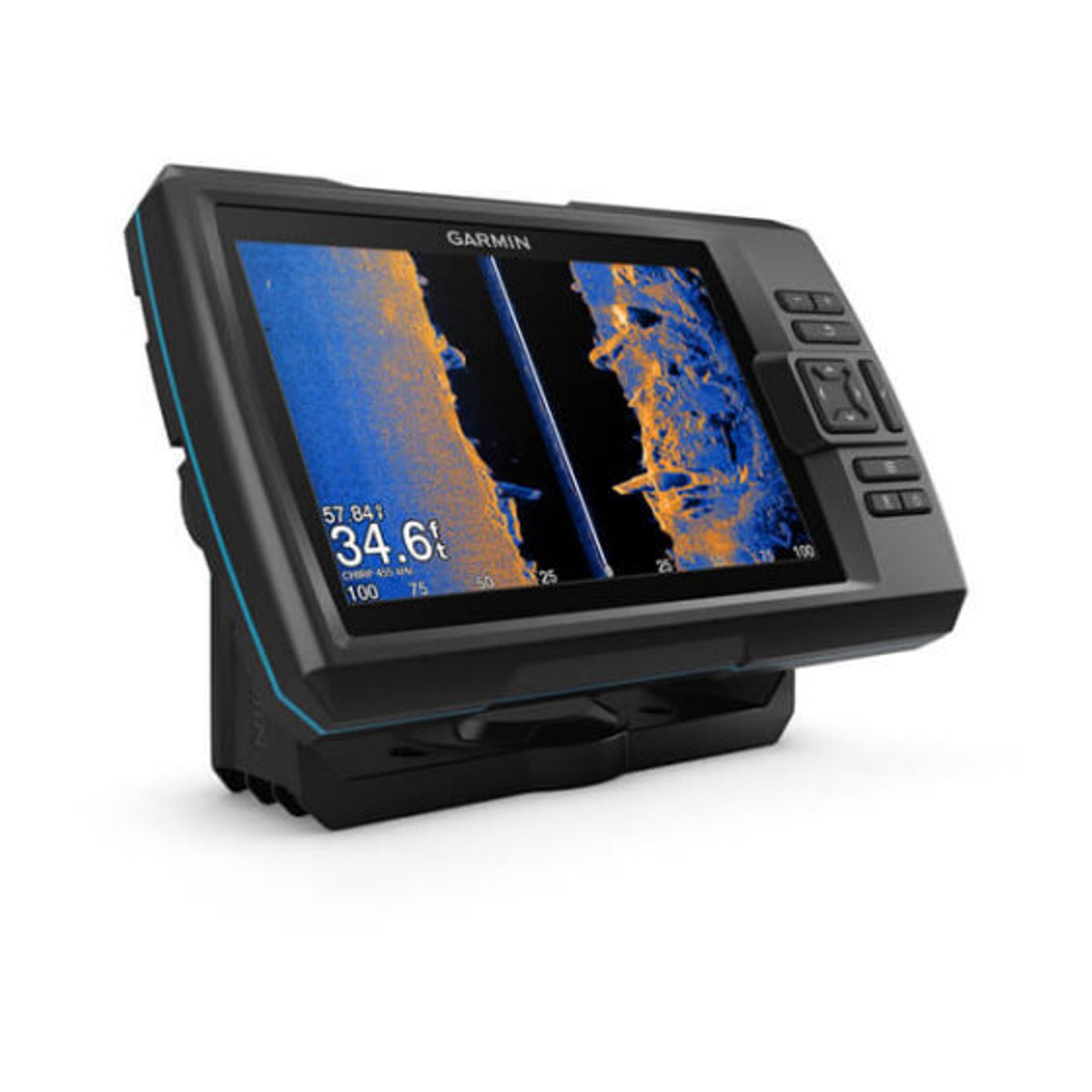

STRIKER™ Vivid 7sv

Description

STRIKER™ Vivid 7sv

General
DIMENSION 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA colour
WEIGHT 1.7 lbs (0.8 kg)
WATER RATING IPX7
Maps & memory
NAVIGATION ROUTES 100
Sonar Features & Specifications
FREQUENCY Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG
Electrical Features
TRANSMIT POWER 500 W (RMS)
Fishfinder Features
SPLIT-SCREEN ZOOM
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMISES CLUTTER, MAXIMISES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED
Additional

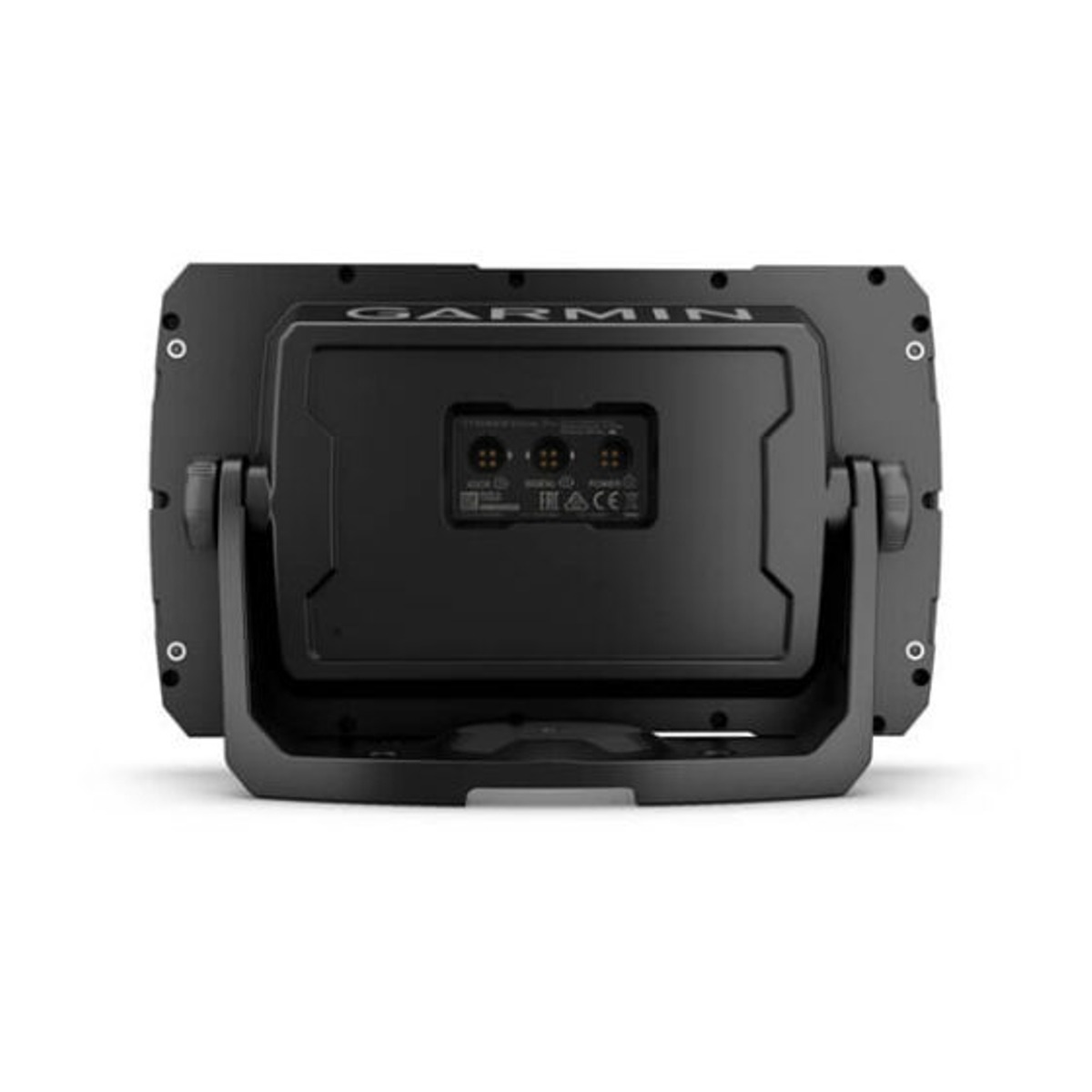

ADDITIONAL One 4-pin transducer port
One 4-pin SideVü transducer port
Wireless Connectivity: Yes
Quickdraw Contours
Integrated GPS
Mark Waypoints
Course over Ground (COG)
Current draw @ 12V: 0.67A
