LiveScope™ XR

Description

LiveScope™ XR

General

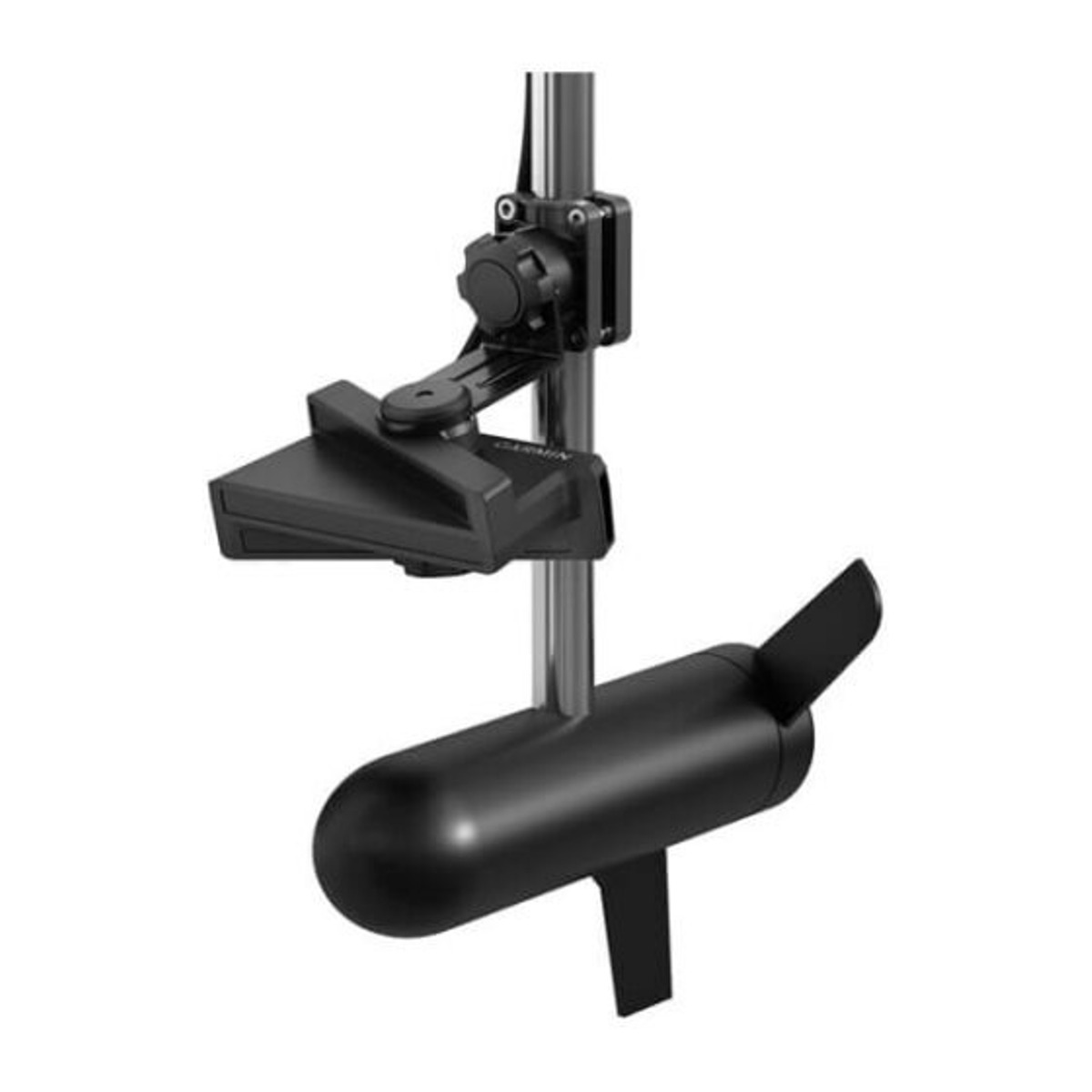

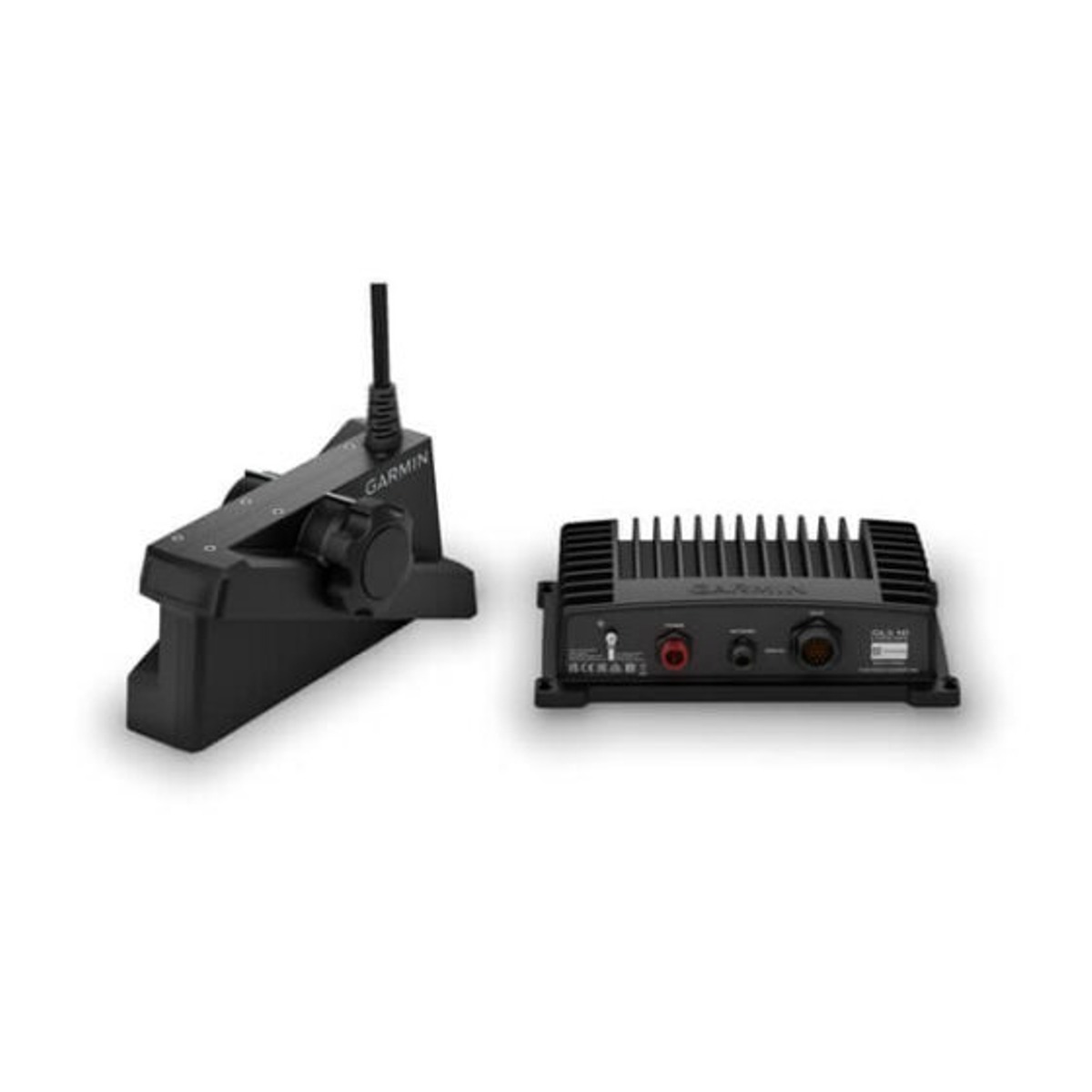

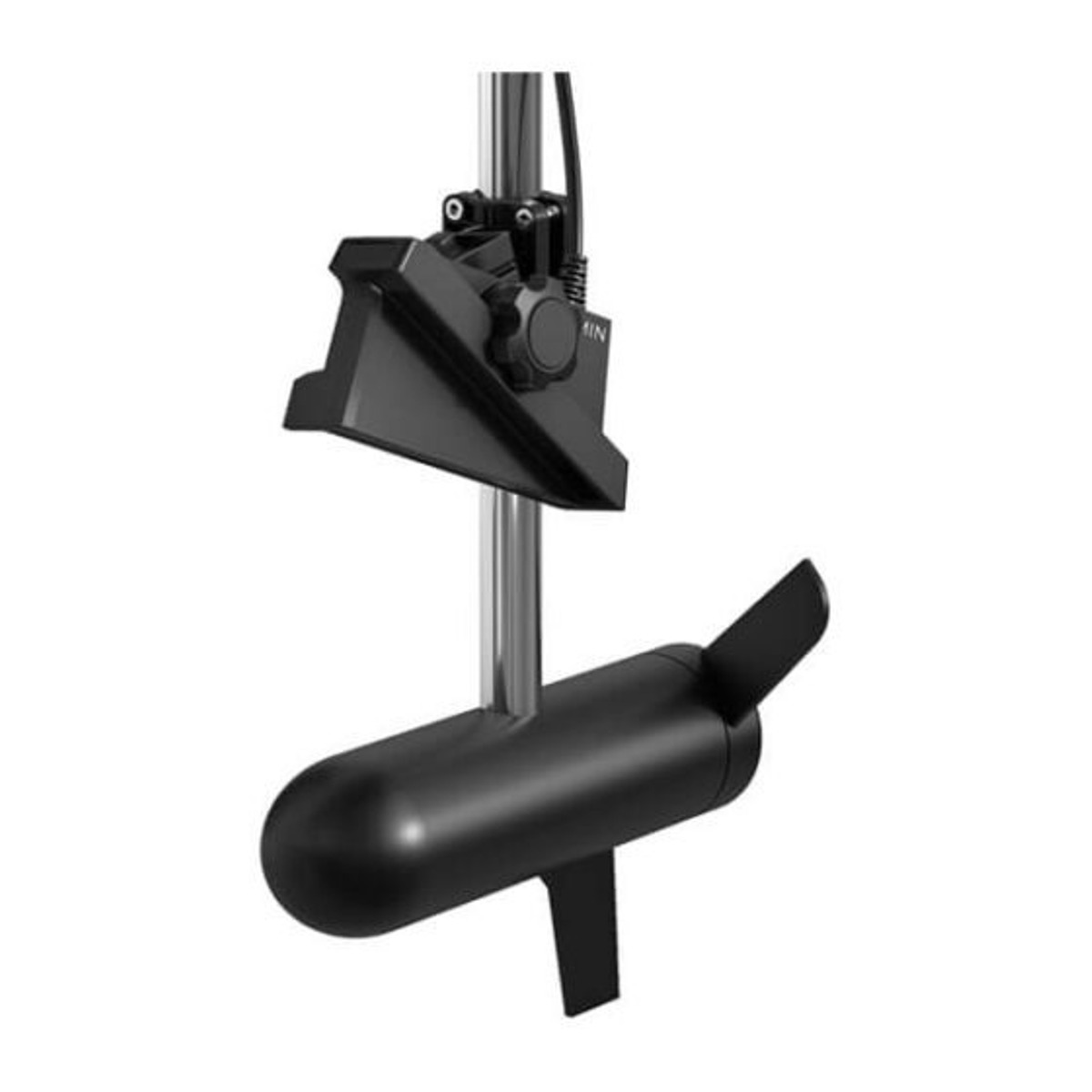

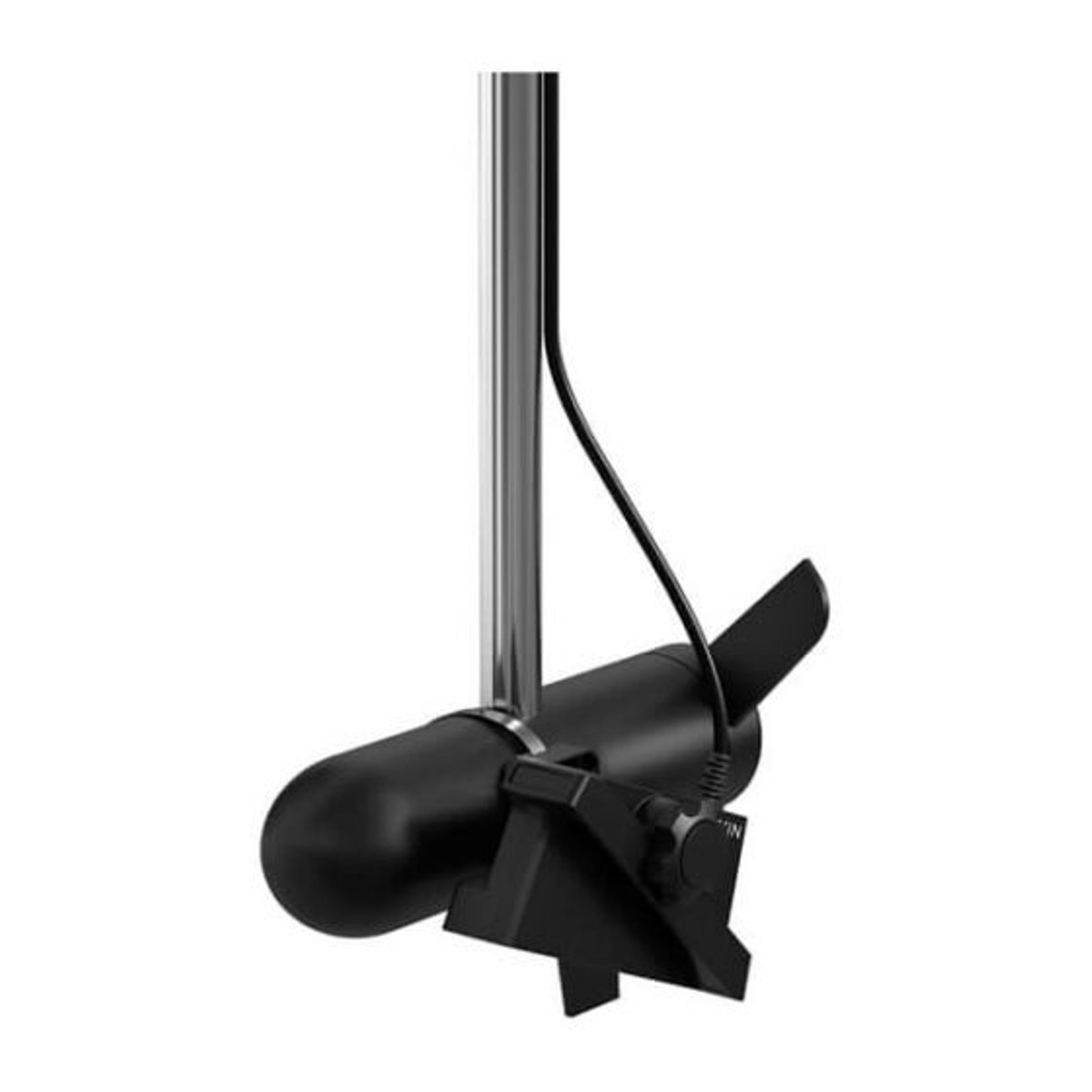

DIMENSION GLS 10 sonar black box: 9.7″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20″ x 3.98″ x 2.76″ (20.8 x 10.1 x 7.0 cm)
WEIGHT GLS 10 sonar black box: 4.3 lbs (2.0 kg)LVS62 transducer with cable: 3.92 lbs (1.78 kg)LVS62 transducer without cable: 2.66 lbs (1.21 kg)
WATER RATING IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE LVS62 Transducer: Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY 282 – 522 kHz
MAXIMUM DEPTH Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m)
SONAR TYPE Live
TARGET SEPARATION @100′ 22″
PERSPECTIVE MODE MOUNT INCLUDED
Connections
GARMIN MARINE NETWORK PORTS 1 (small connector)
Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS SAFE DISTANCE 7″ (0.18 m)
