GPSMAP® 1523xsv

Description

 GPSMAP® 1523xsv

General
Dimension 388.9 x 178.5 x 82.9 mm (15.3″ x 7.02″ x 3.3″)
Weight 3.26 kg (7.2 lbs)
Water rating IPX7
Touchscreen
Display Type Ultrawide display, IPS
Display Size 34.6 x 12.9 cm; 36.8 cm diagonal (13.6″ x 5.1″; 14.5″ diagonal)
Display Resolution 1920 x 720 pixels

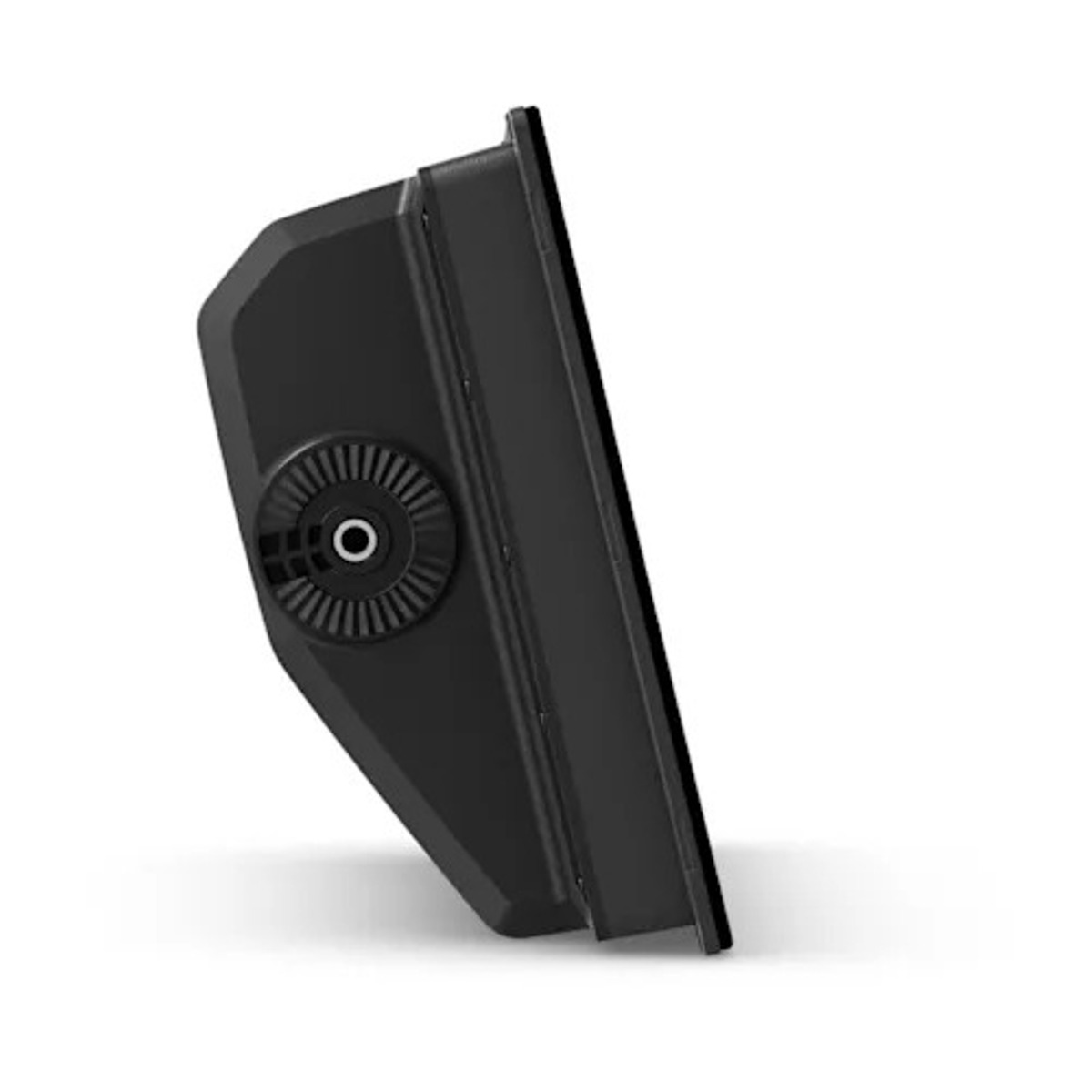

Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Polarised Support
Maps & memory
Accepts Data Cards 2 microSD™ cards (back of device)
Compatible with Garmin SD card reader Yes (USB card reader)
Waypoints 5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver 10 Hz
NMEA 2000® compatible
NMEA 0183 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS Yes (with external GPS antenna)

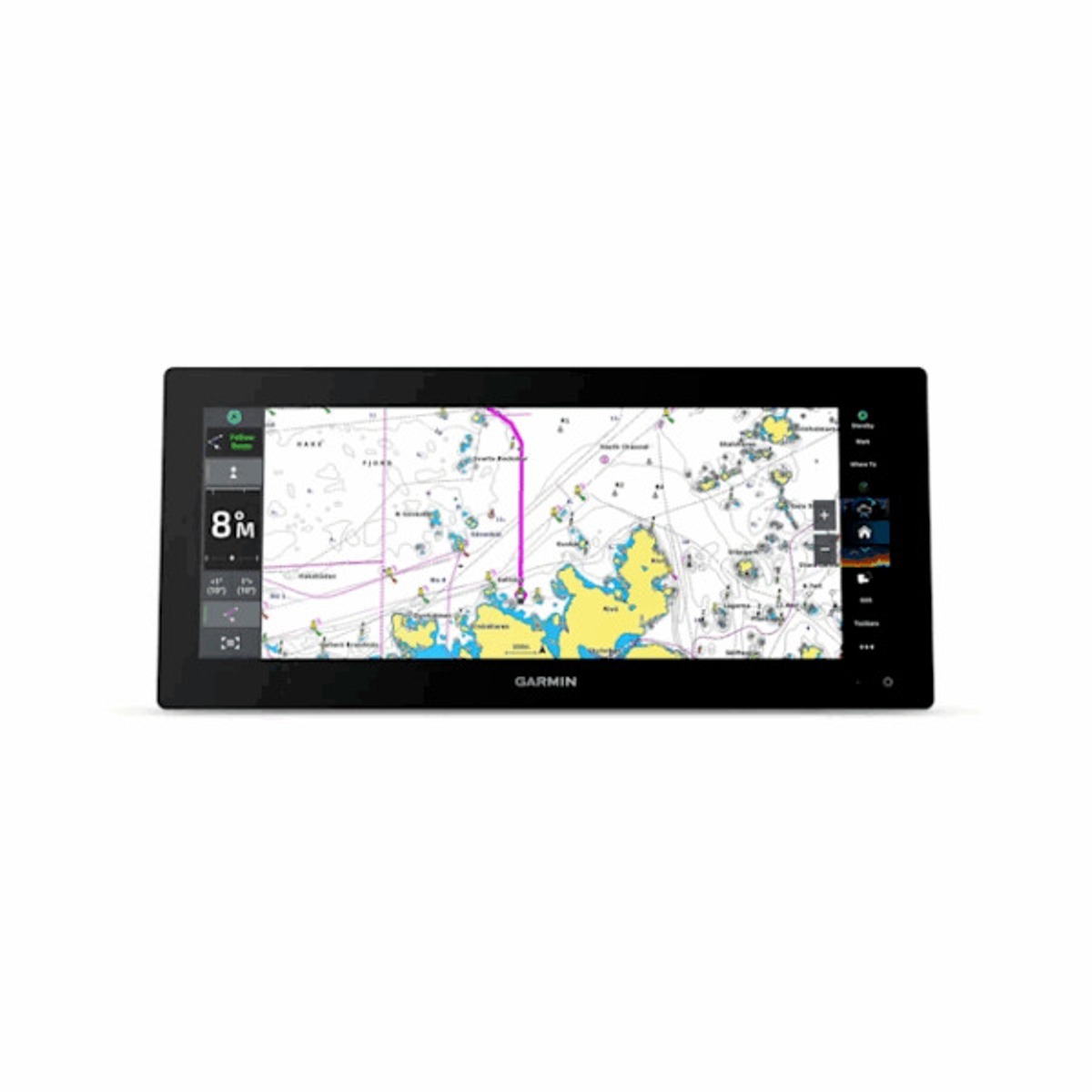

Optional map support
BlueChart g3
BlueChart g3 Vision
Garmin Navionics+™
Garmin Navionics Vision+™
Standard Mapping
Garmin Quickdraw Contours
Chartplotter features
Garmin SmartMode compatible (customisable monitor presets)
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain Mobile Planning Compatible
Supports voice commands Yes (with external accessory)
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing features
Spoken audio alerts
OneHelm support
Electrical features
POWER INPUT 10 to 32 Vdc
Typical current draw at 12 Vdc 2.44 A
Maximum current draw at 12 Vdc 4.21 A
Maximum power usage at 10 Vdc 56.93 W
Sonar features & specifications
Displays sonar
Power output 1 kW
Traditional sonar (dual frequency/beam)
ClearVü

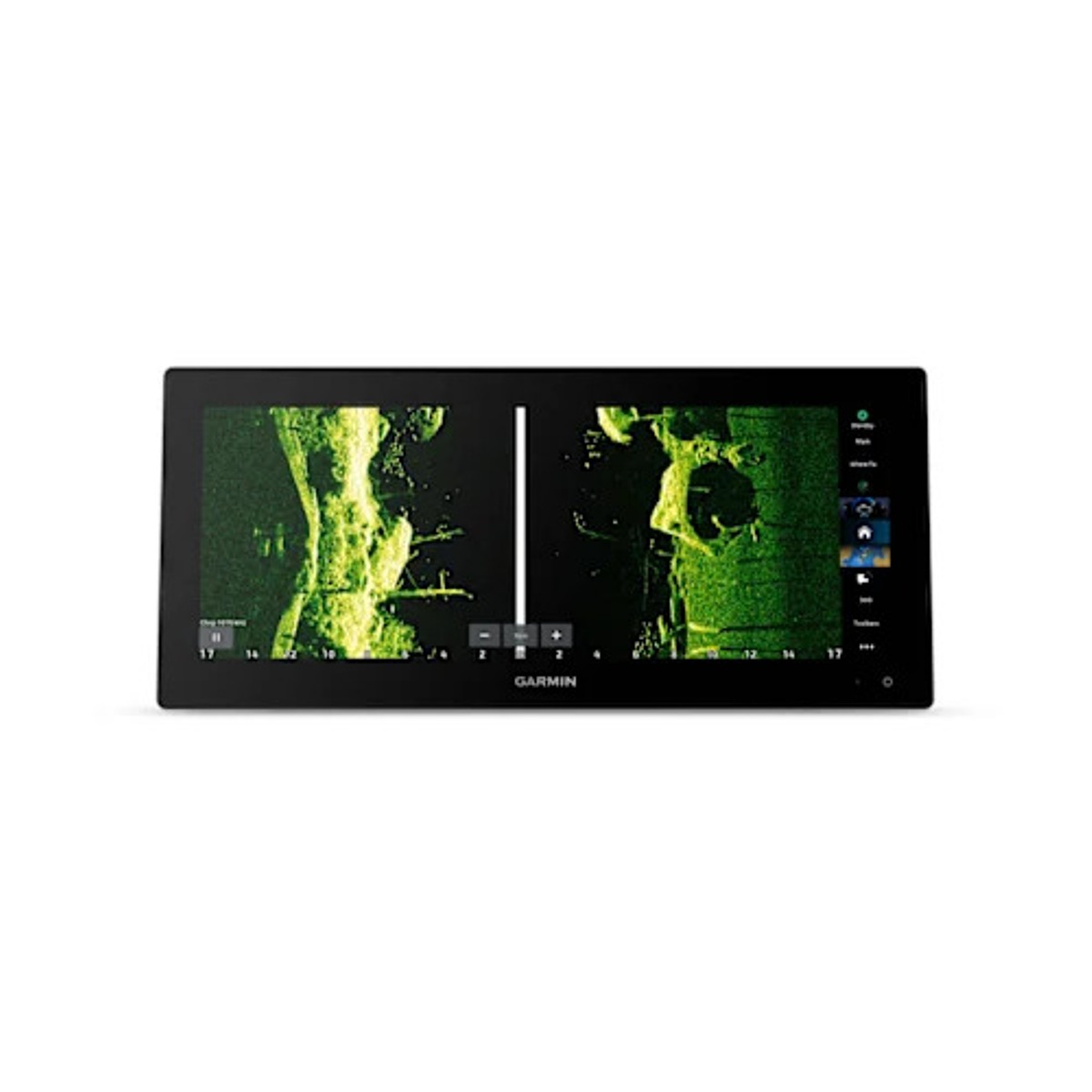

SideVü
Panoptix™ sonar

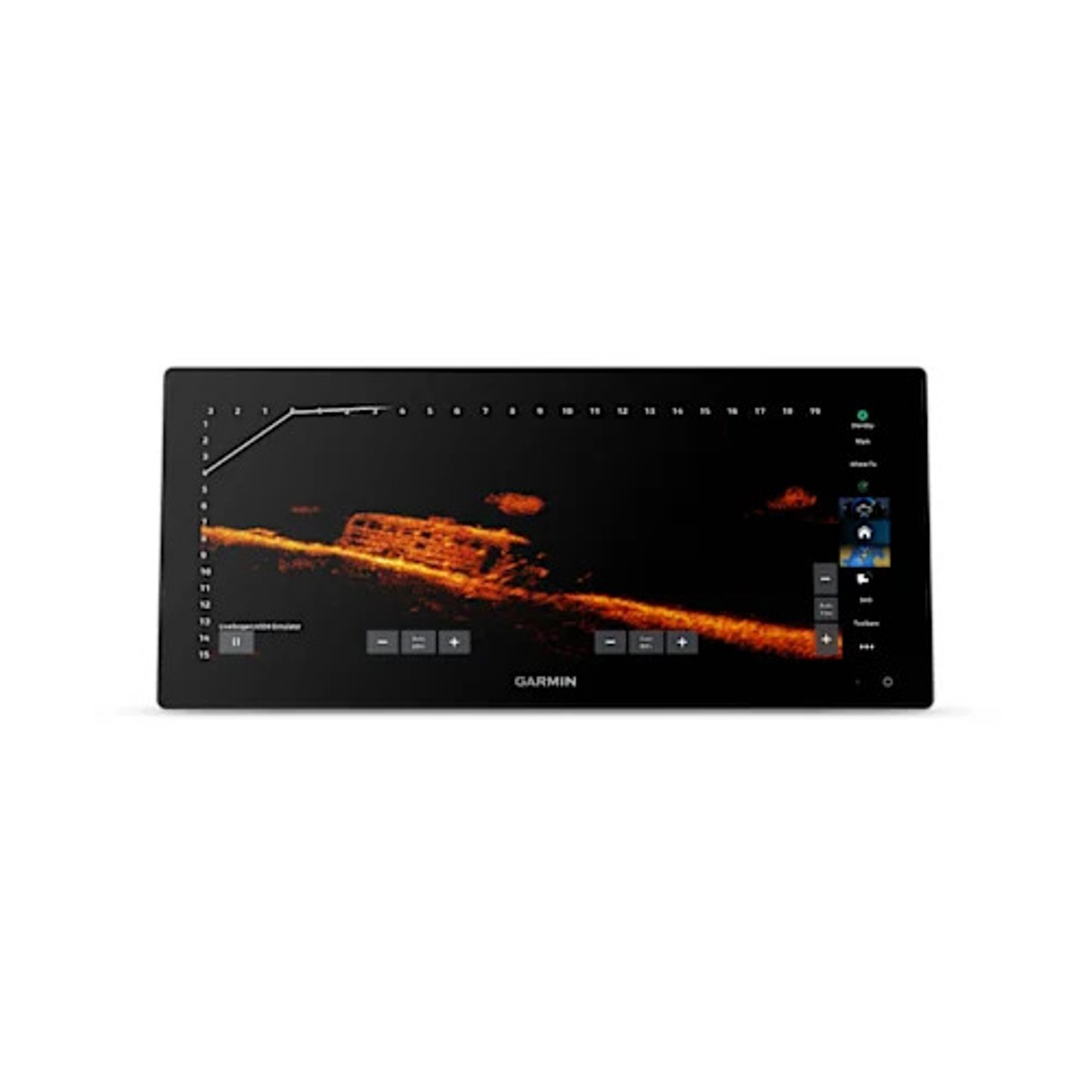

LiveScope
Connections
NMEA 2000® ports 1
NMEA 0183 Input (Rx) Ports 1
NMEA 0183 output (Tx) ports 1
Video input ports 1 (BNC composite)
J1939 ports 1
Garmin Marine Network Ports 2
12-pin transducer ports 1
USB ports
Bluetooth® calling Yes (BLE)
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)
Security Information
Security updates until at least (YYYY-MM-DD) 2027-06-12
