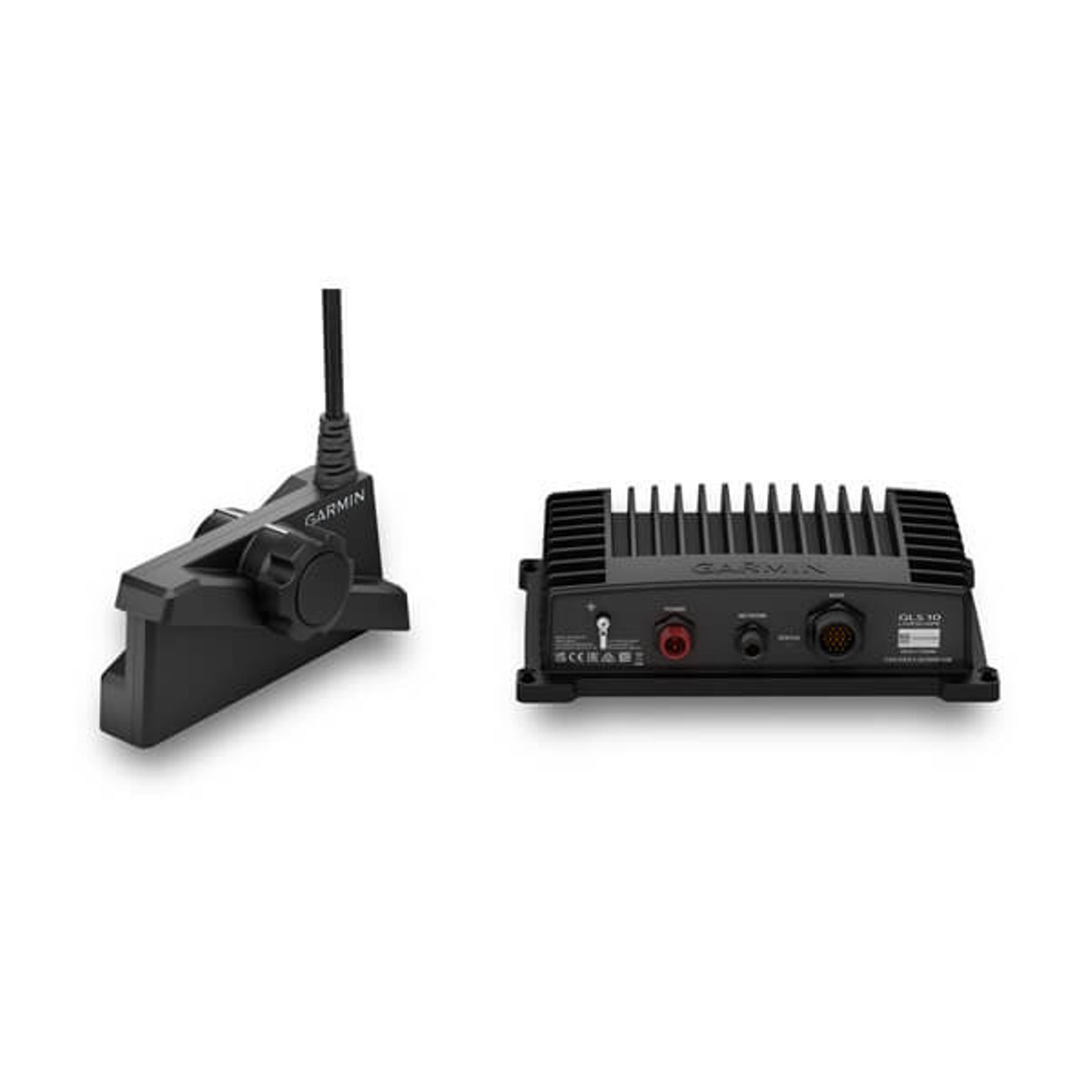

Garmin Livescope Plus System W/ Lvs34 And Gls10

Description

Garmin Livescope Plus System W/ Lvs34 And Gls10

General
Dimension GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm;LVS32 transducer: 13.7 x 9.7 x 4.6 cm
Weight GLS 10 sonar black box: 2.0 kg;LVS32 transducer: 0.9 kg
Water rating IPX7
Temperature range GLS 10 Black Box: Operating: -15 C to 70 CPanoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C
Sonar Features & Specifications
Frequency 530 – 1,100 kHz
MaxDepth Down and Forward: 61.0 m
Connections
Connections Garmin Marine Network Ports 1 (small connector)
Electrical Features
Power Input 10-32 V
Power usage 21 W typical, 58 W max
Transmit power 500 W
Fuse 7.5 A
Compass safe distance 4″ (0.1 m)
