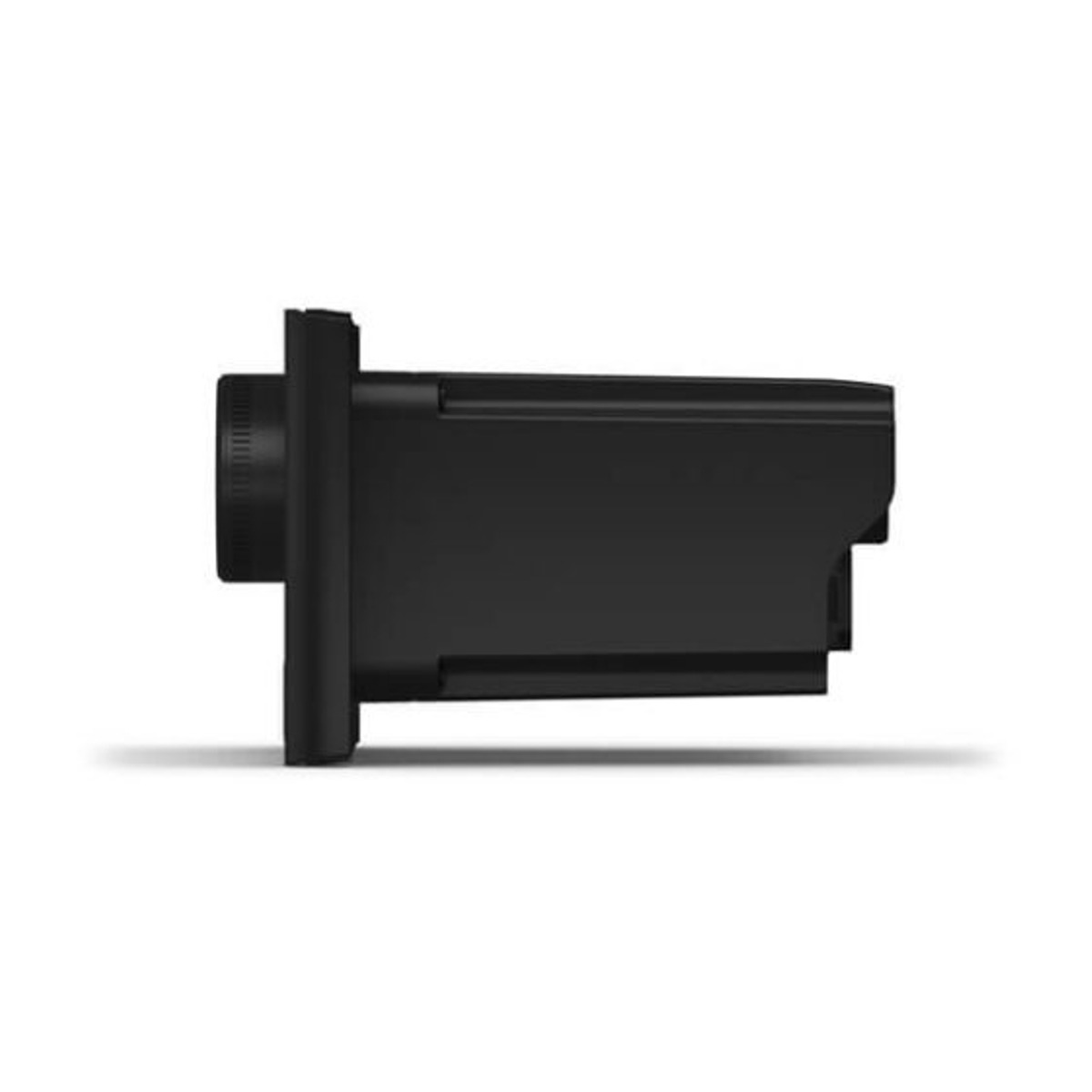

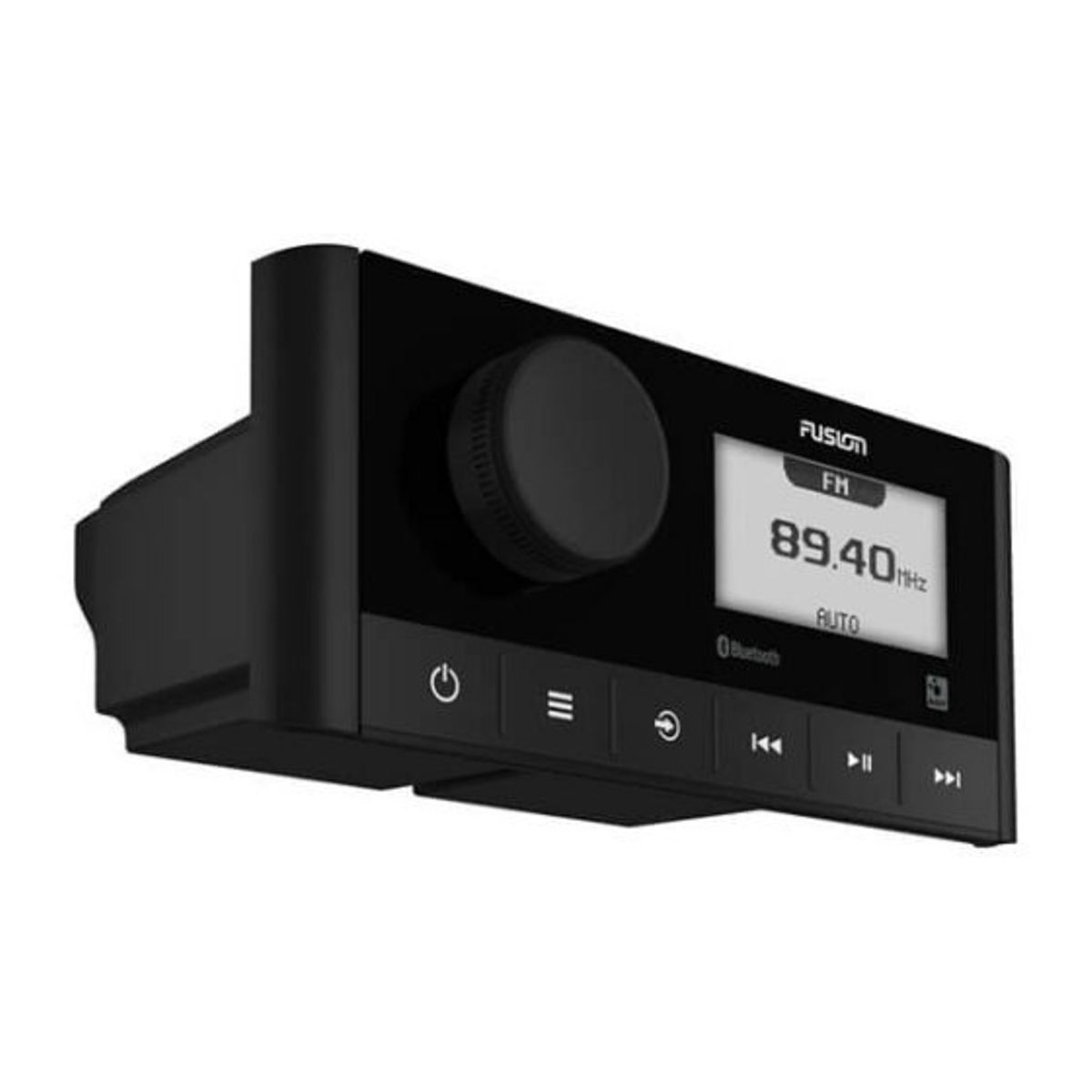

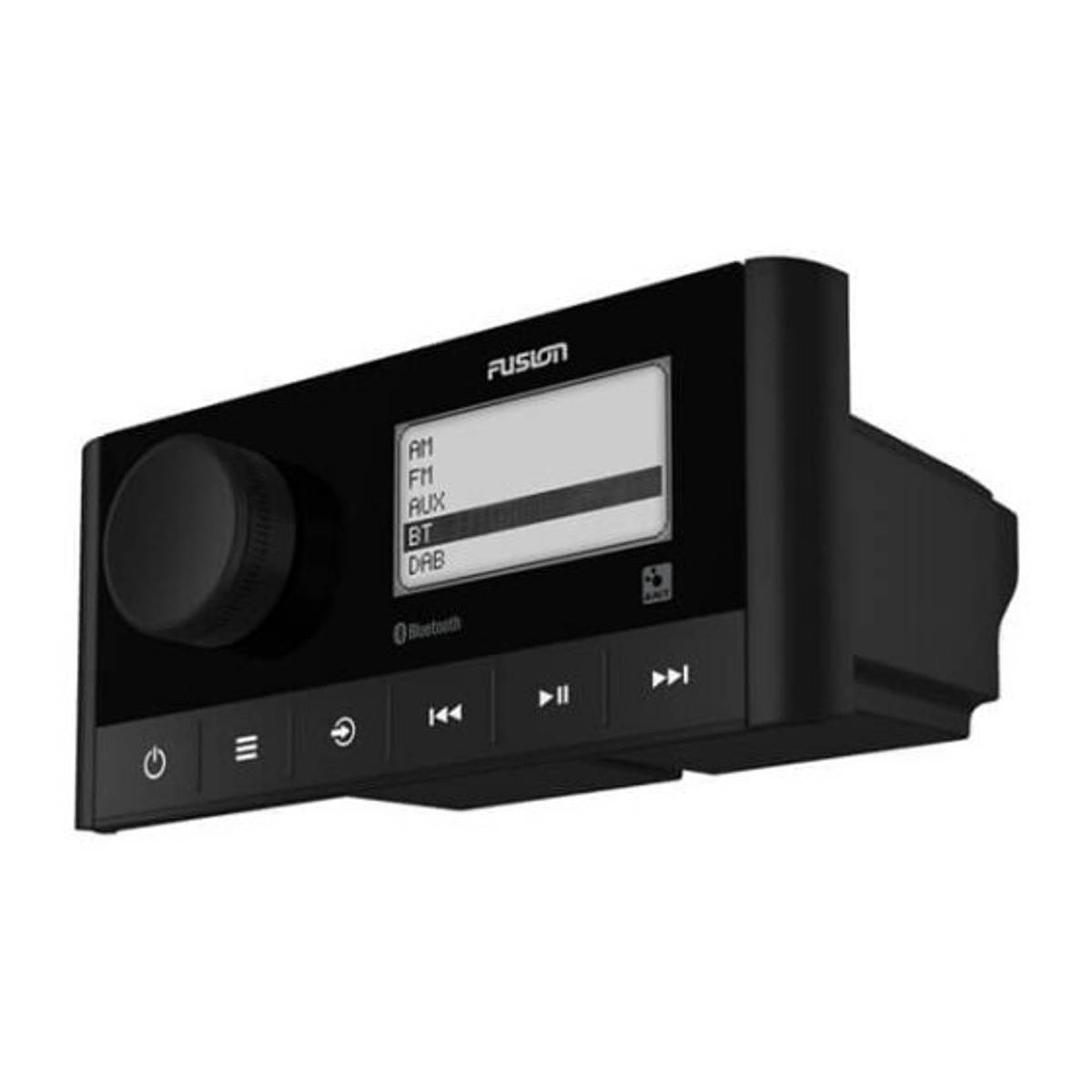

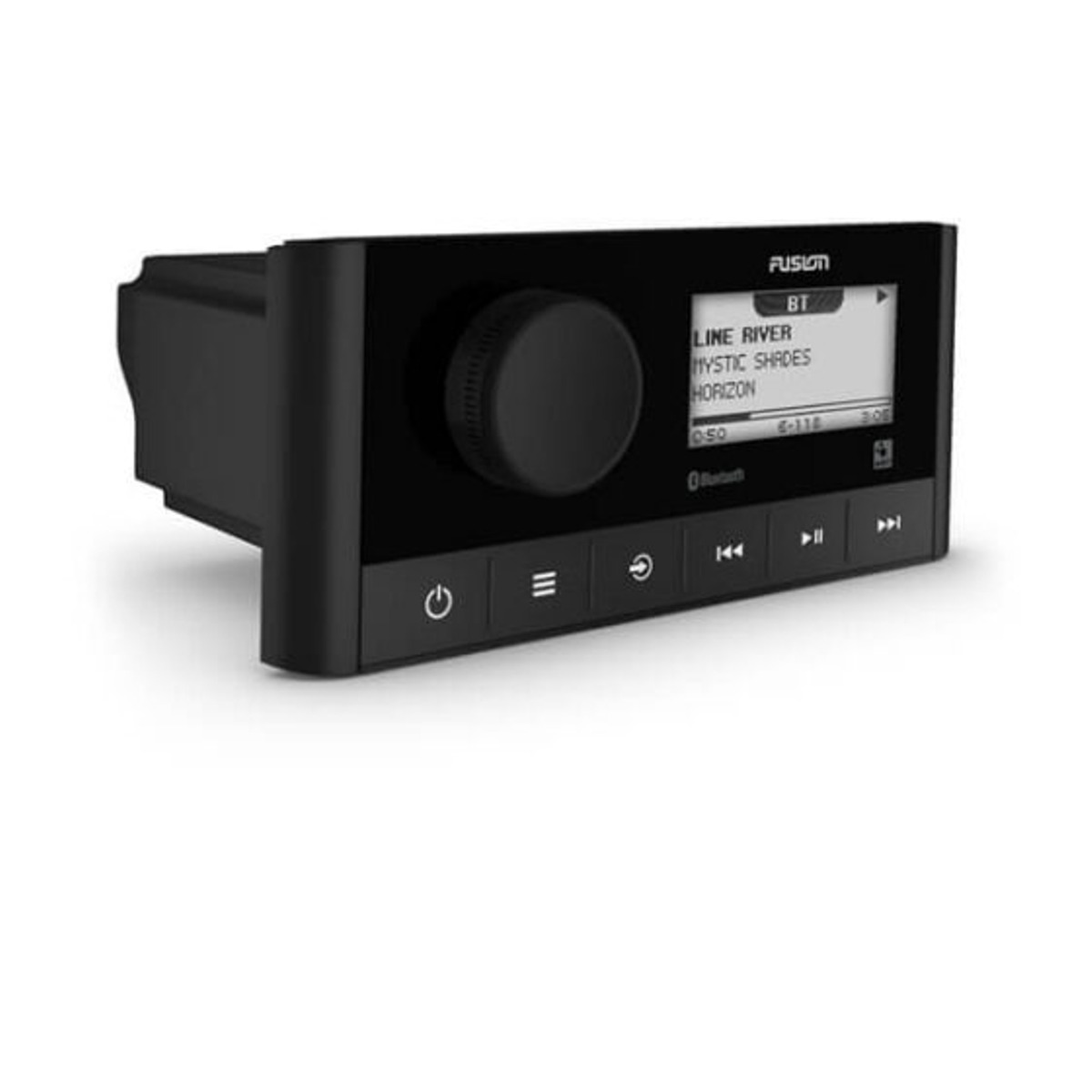

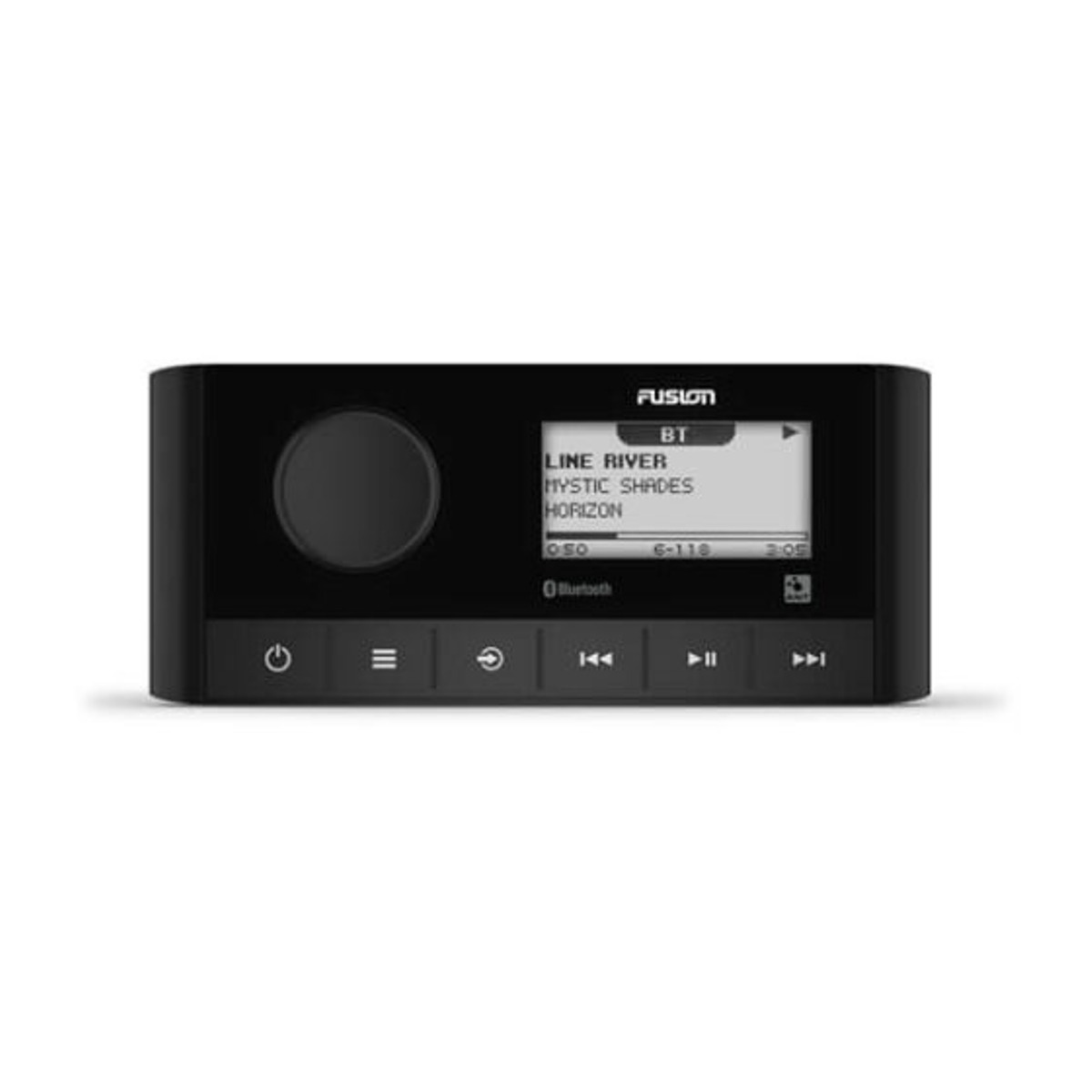

Fusion® MS-RA60 Marine Stereo

Description

Fusion® MS-RA60 Marine Stereo

General
WARRANTY 1 year
WEIGHT 316 g
WATER RATING IPX6 and IPX7 (front panel only, when properly installed)
POWER INPUT 10.8-16 VDC
OPERATING TEMPERATURE RANGE 0° to 50° C
CURRENT (MAX.) 15 A
BLUETOOTH WIRELESS RANGE Up to 30 ft. (10 m)
ANT WIRELESS RANGE Up to 10 ft. (3 m)
WIRELESS FREQUENCIES/PROTOCOLS Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
COMPASS-SAFE DISTANCE 150 mm
Stereo features
DISPLAY 2.3″ perimeter bonded monochrome dot matrix LCD
BUILT-IN AMPLIFIER Class-D (minimum 4 Ohm impedance)
PEAK POWER 180 W
RATED POWER OUTPUT (4 OHM) 22 W rms x 4 @ 14.4 V input, 4 ohm, 10 % THD
FUSION-LINK™ CONTROL Yes (with compatible Apple and Android devices)
FUSION-LINK LITE CONTROL Yes (with compatible Garmin watch)
MULTI-ZONE™ TECHNOLOGY 2 zones
BLUETOOTH WIRELESS TECHNOLOGY
ANT WIRELESS TECHNOLOGY
DAB+ Yes (DAB tuner built in)
MULTI-LANGUAGE INTERFACE Dutch/English/French/German/Italian/Spanish
SOFTWARE UPDATES Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
WARRANTY 1 year
Sources
SOURCES AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
Connectivity
AUXILIARY INPUT One RCA input (AUX)
AM/FM RADIO One Motorola antenna connector port
SPEAKER 4 x speaker connections (2 amplified zones)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) 1 zone (requires external amplification)
LINE OUT Zone 1: L + R (requires external amplification)
SUBWOOFER OUT Zone (requires external amplification)
